Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the track cover on the seat.
  2. Snap on the rear tabs, then the front tabs of the track cover.
  3. Install the seat in the vehicle. Refer to Seat Replacement-Front Bucket   .

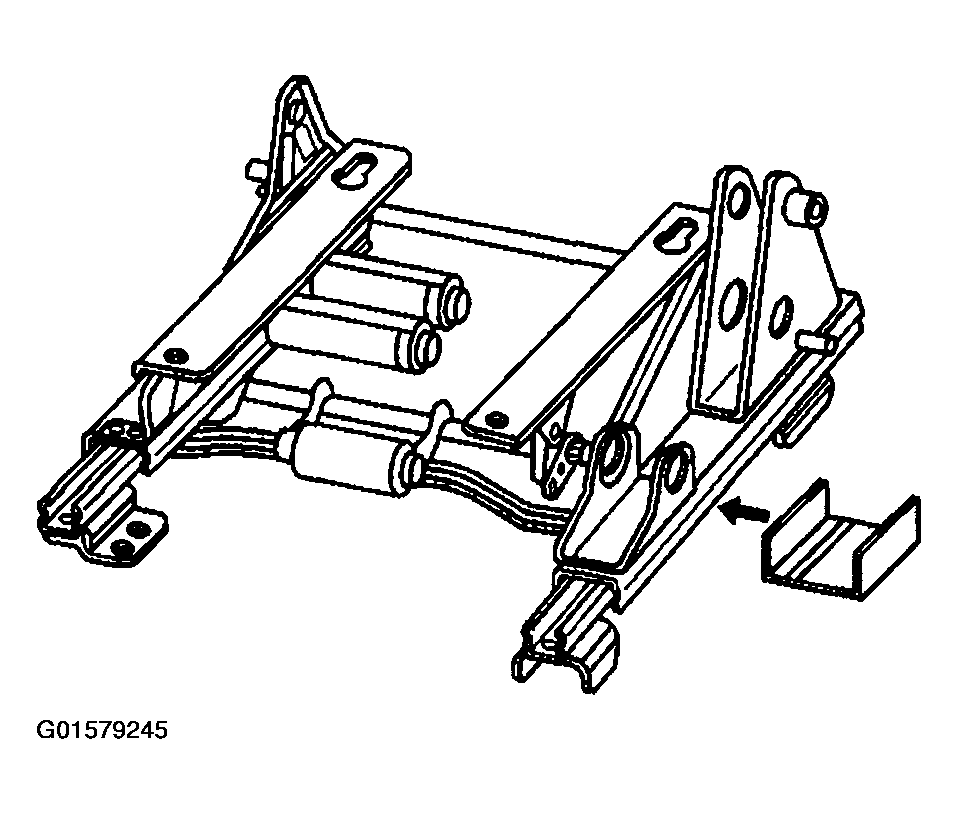

    Fig 1: Front Seat Adjuster Track Cover
    G01579245Courtesy of GENERAL MOTORS CORP.
