Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat from the vehicle. Refer to Seat Replacement-Front Bucket   .
  2. Remove the seat trim panel. Refer to Trim Panel Replacement-Front Seat   .
  3. Remove the seat cushion frame from the seat adjuster. Refer to Seat Cushion Frame Replacement-Front   .

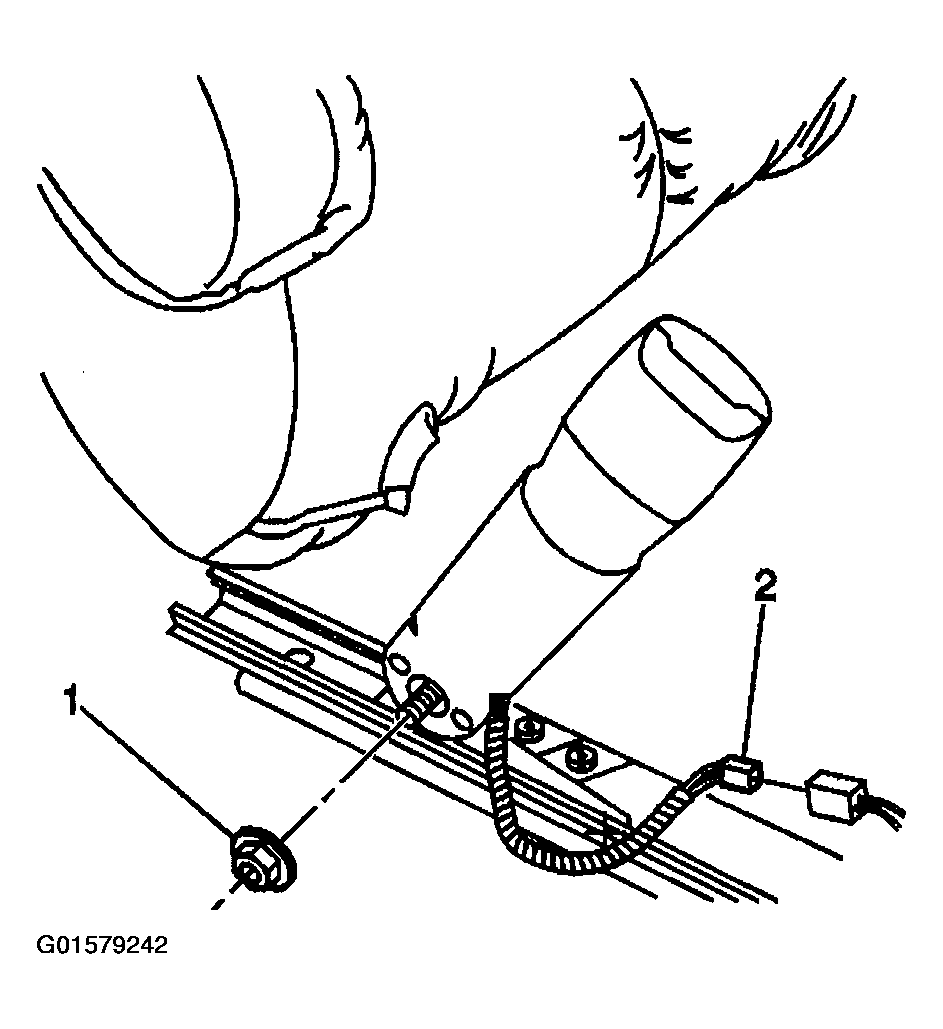

  4. Remove the inboard seat belt buckle and nut (1).

    Disconnect the electrical connection (2).

  5. Remove the seat back frame from the seat adjuster. Refer to Seat Back Frame Replacement-Front   .
  6. Remove the seat back hinge/recliner mechanism. Refer to Seat Back Hinge/Recliner Mechanism Replace-Front   .
  7. Remove the seat adjuster track cover. Refer to Seat Adjuster Track Cover Replacement-Front   .
  8. Remove the memory module, if equipped. Refer to Memory Seat Control Module Replacement   .
    Fig 1: Front Seat Adjuster (Power)
    G01579242Courtesy of GENERAL MOTORS CORP.
