Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cushion tilt mechanism, if equipped.
  2. Install the EZ entry rod (4), if equipped with the EZ entry feature.
  3. Install the cross brace (3).
  4. Install the bar (1) onto the racks (2). Bend the tabs in order to secure the bar.

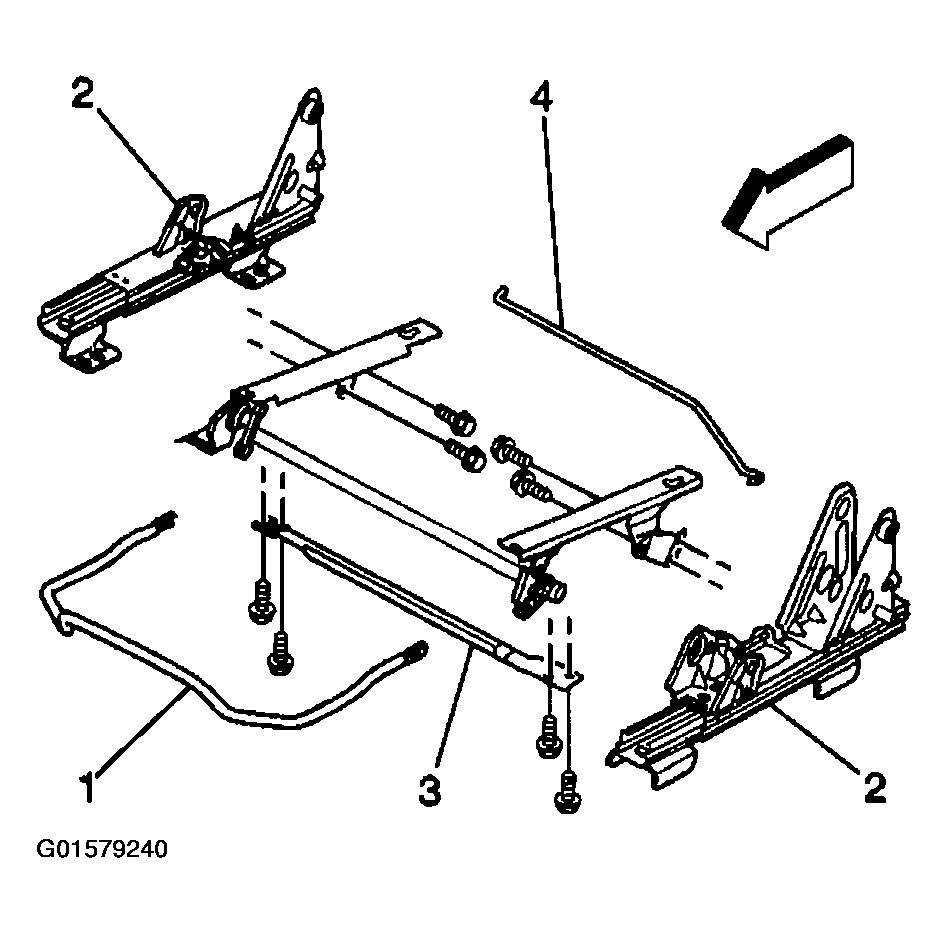

    Fig 1: Installing Cross Brace & EZ Entry Rod
    G01579240Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the inboard seat belt buckle and nut (1).

    Tighten

    Tighten the nut to 53 N.m (39 lb ft).

  6. Connect the electrical connection (2).
  7. Install the seat adjuster track cover. Refer to Seat Adjuster Track Cover Replacement-Front   .
  8. Install the seat back hinge/recliner mechanism. Refer to Seat Back Hinge/Recliner Mechanism Replace-Front   .
  9. Install the seat back frame. Refer to Seat Back Frame Replacement-Front   .
  10. Install the seat cushion frame. Refer to Seat Cushion Frame Replacement-Front   .

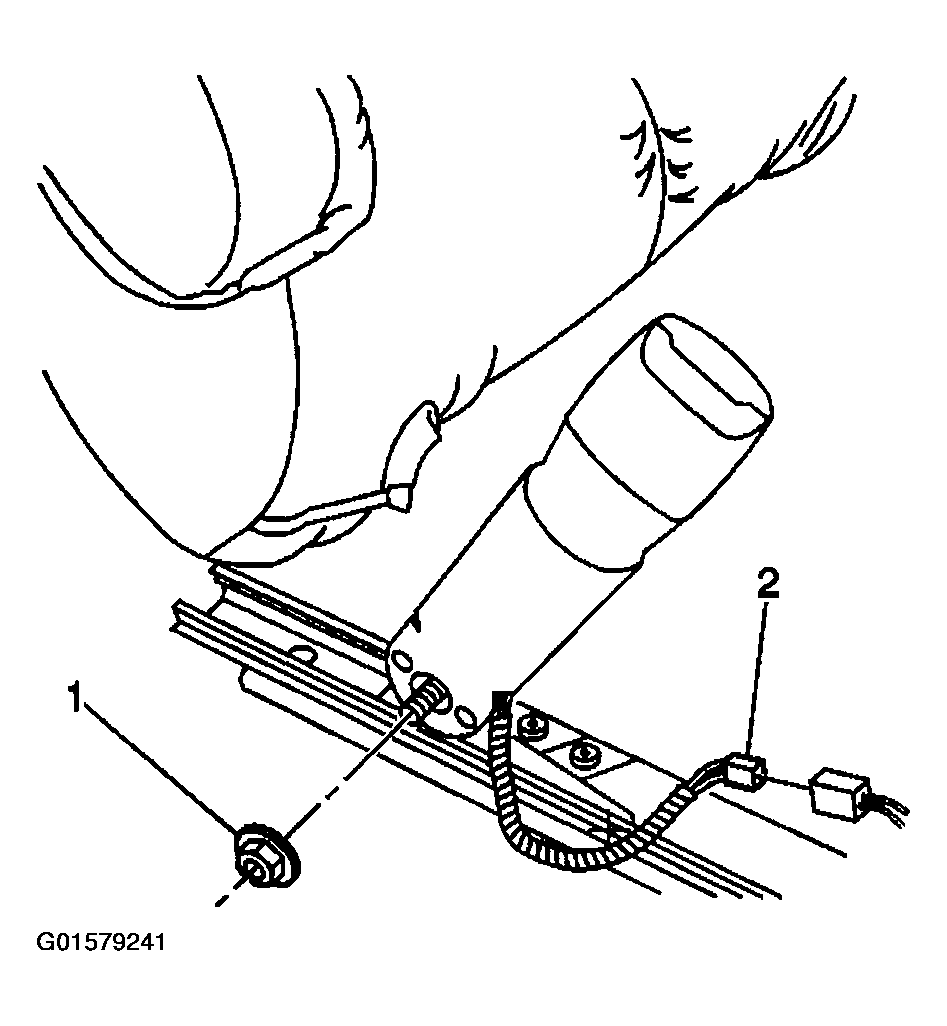

    Fig 2: Inboard Seat Belt Buckle, Nut & Electrical Connection
    G01579241Courtesy of GENERAL MOTORS CORP.
  11. Install the seat trim panel. Refer to Trim Panel Replacement-Front Seat   .
  12. Install the front seat in the vehicle. Refer to Seat Replacement-Front Bucket   .
