Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide up the seat back trim cover in order to gain access to the rear cardboard panel fasteners. Refer to Seat Back Cover And Pad Replacement-Front   .
  2. Remove the panel fasteners. Pull back the panel in order to gain access to the bushings.
    Fig 1: Removing Panel Fasteners
    G01579266Courtesy of GENERAL MOTORS CORP.
  3. Remove the head restraint retainers from the seat back frame by squeezing the retaining tabs together at the base of the guide (s) and lifting up.

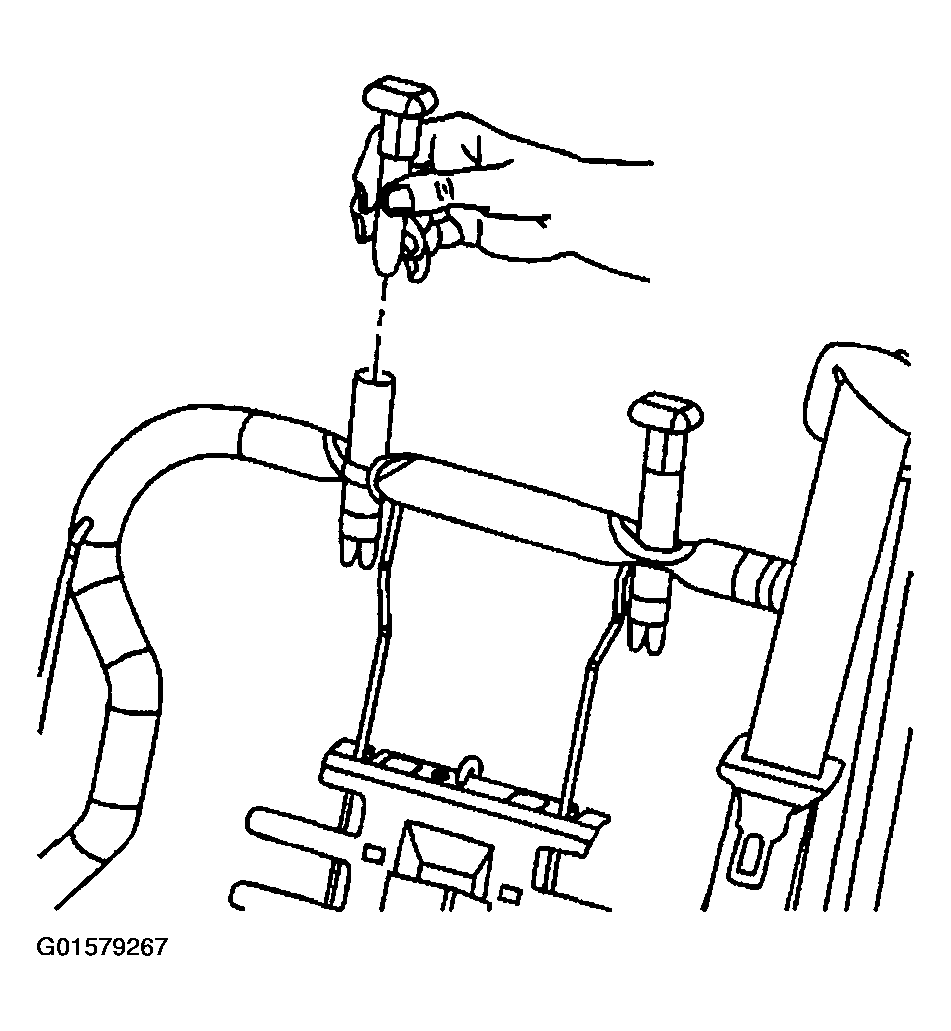

    Fig 2: Removing Head Restraint Retainers
    G01579267Courtesy of GENERAL MOTORS CORP.
