Outside Mirror Schematics

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

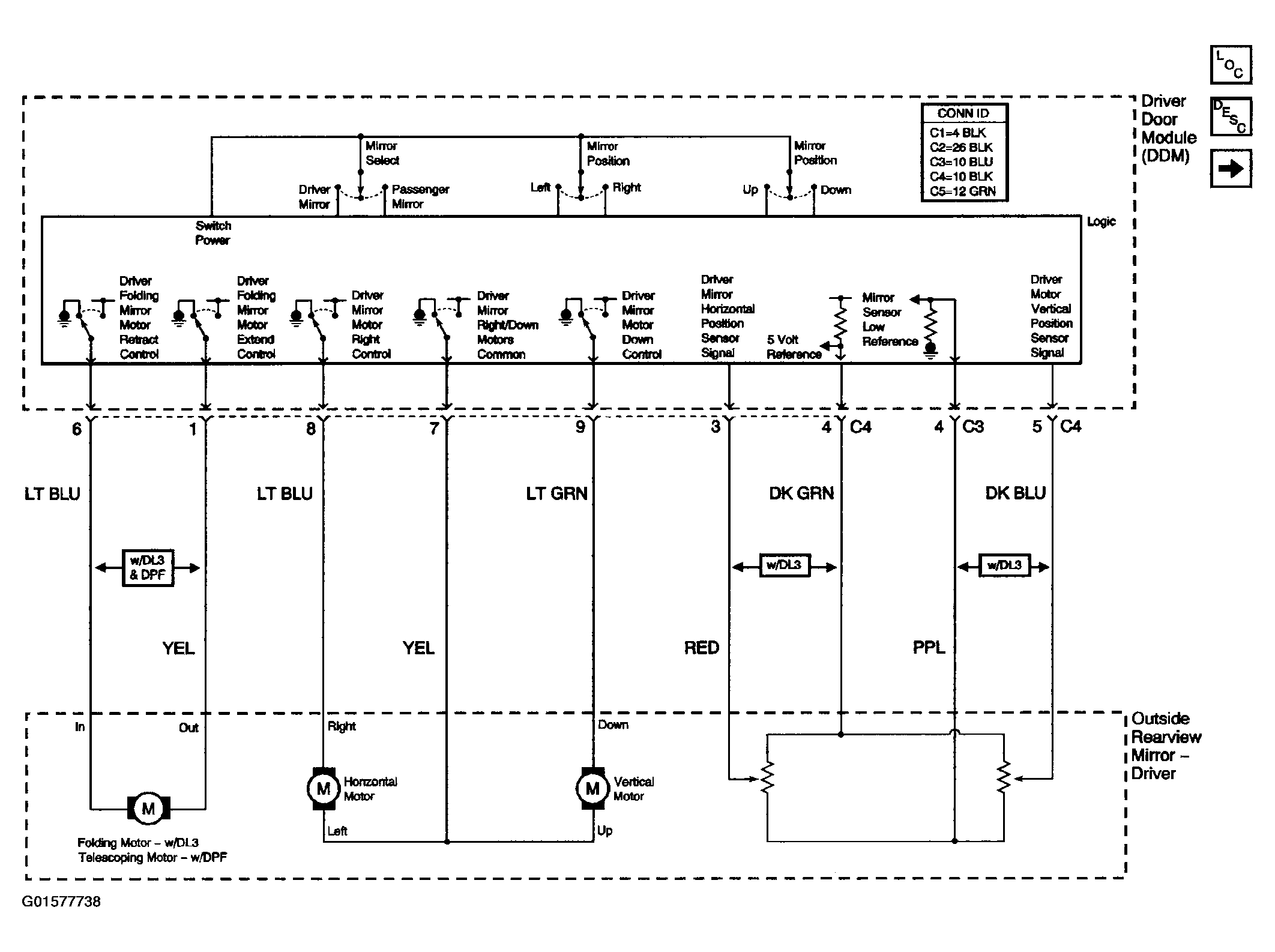

Fig 1: Outside Mirror Schematics (Mirror Motors & Position Sensors - Driver)

Courtesy of GENERAL MOTORS CORP.

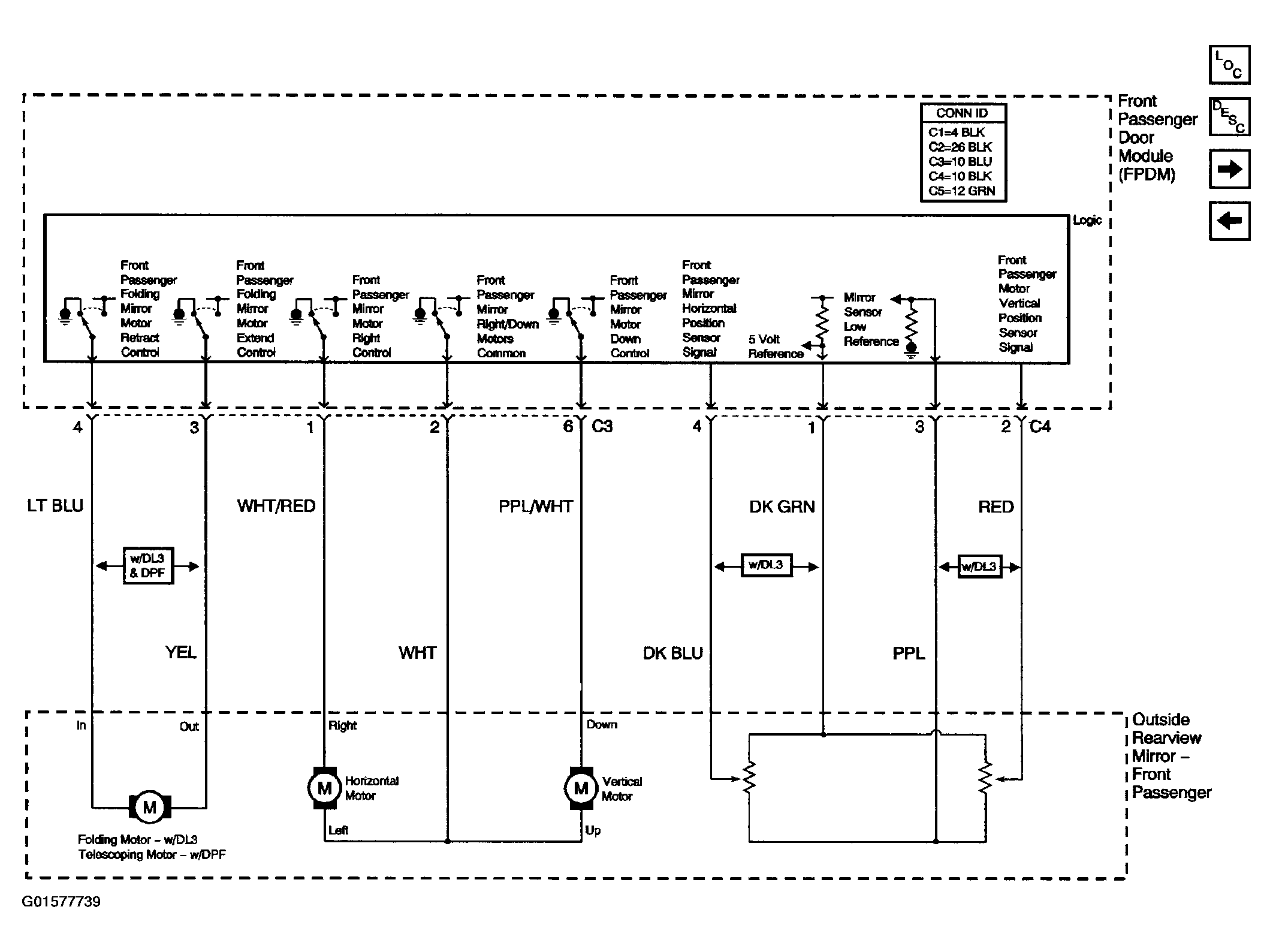

Fig 2: Outside Mirror Schematics (Mirror Motors & Position Sensors - Front Passenger)

Courtesy of GENERAL MOTORS CORP.

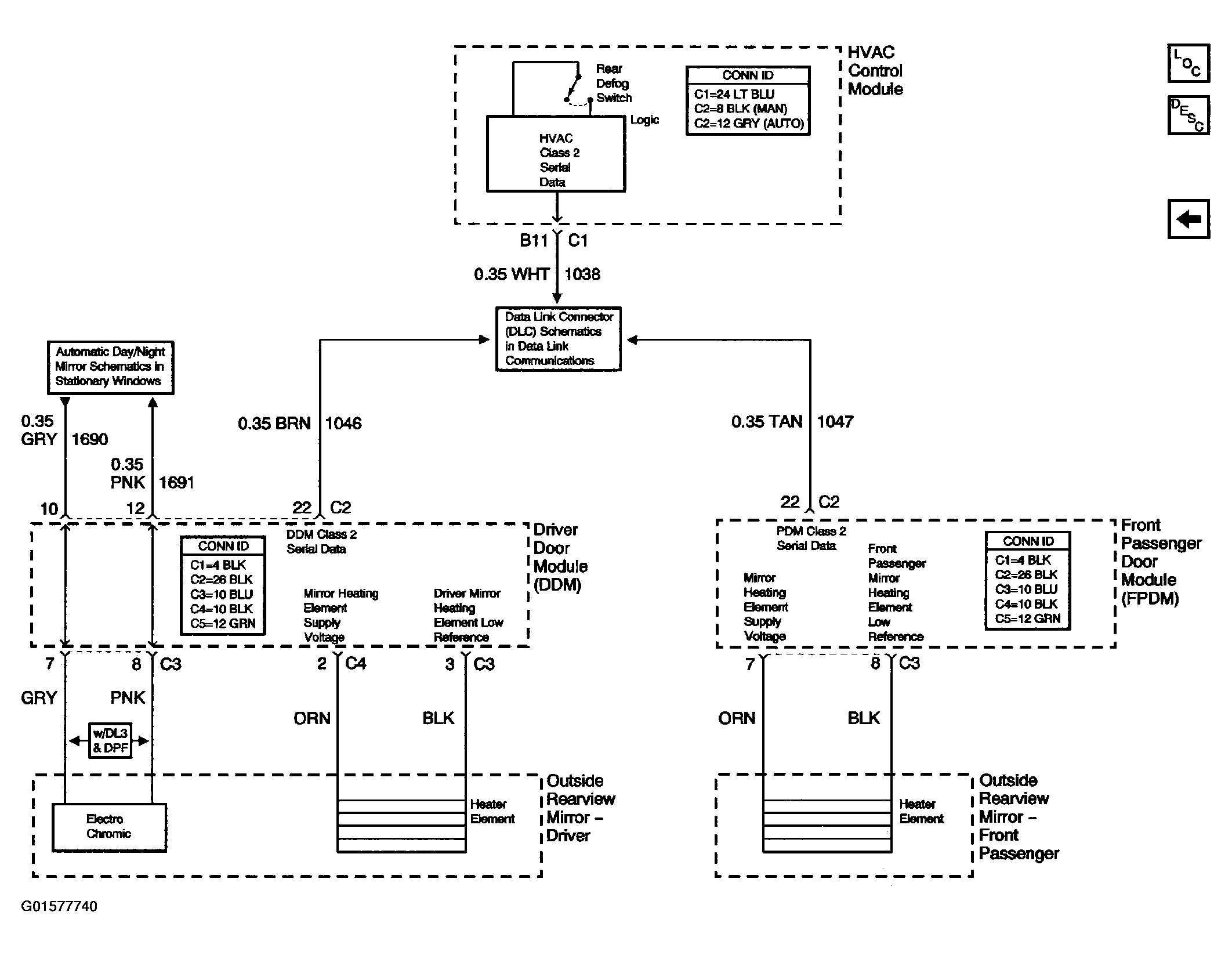

Fig 3: Outside Mirror Schematics (Heated Mirror & Electrochromic Controls)

Courtesy of GENERAL MOTORS CORP.
