Door Lock/Indicator Schematics

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

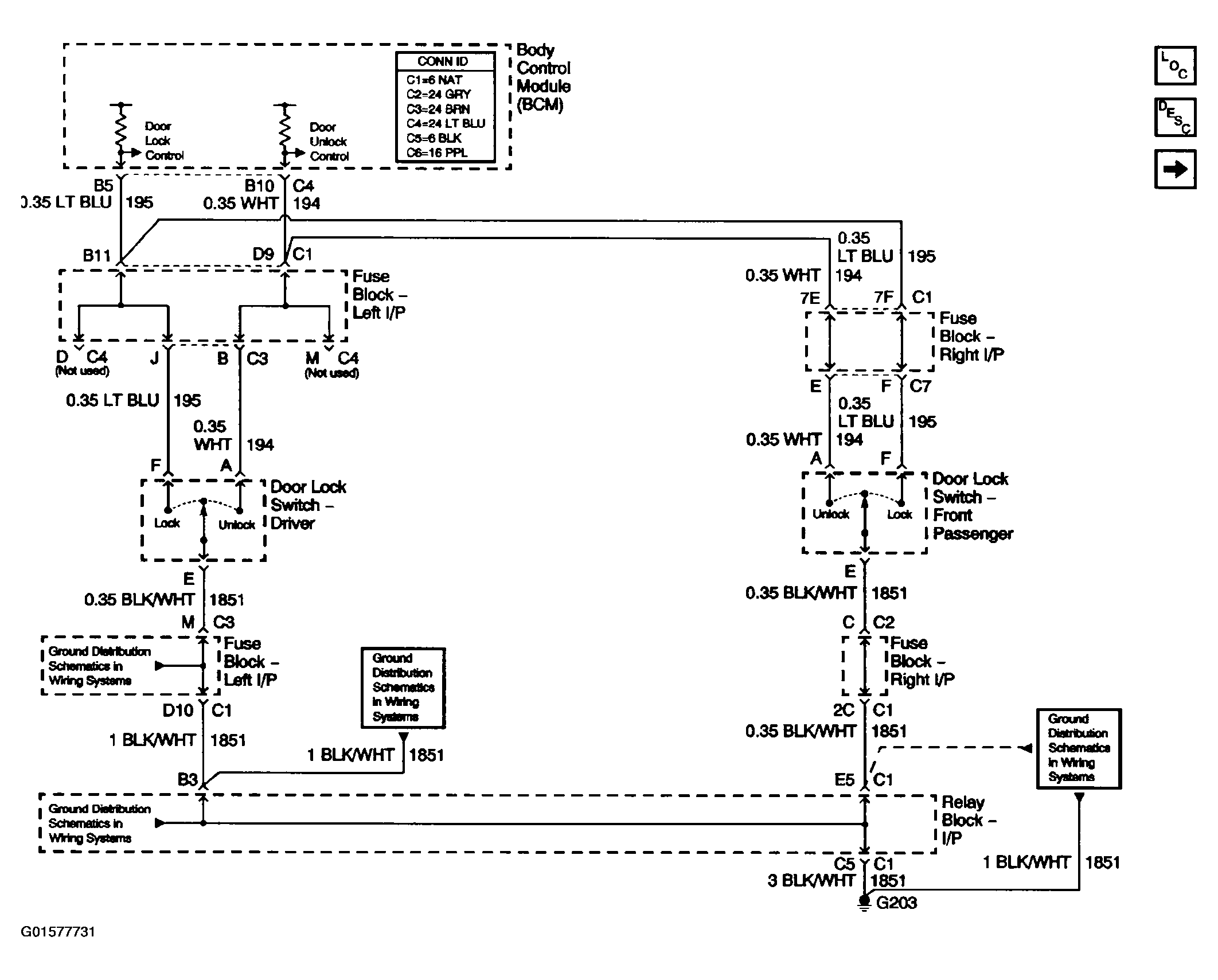

Fig 1: Door Lock/Indicator Schematics (Front Door Lock Switches-Base)

G01577731

Courtesy of GENERAL MOTORS CORP.

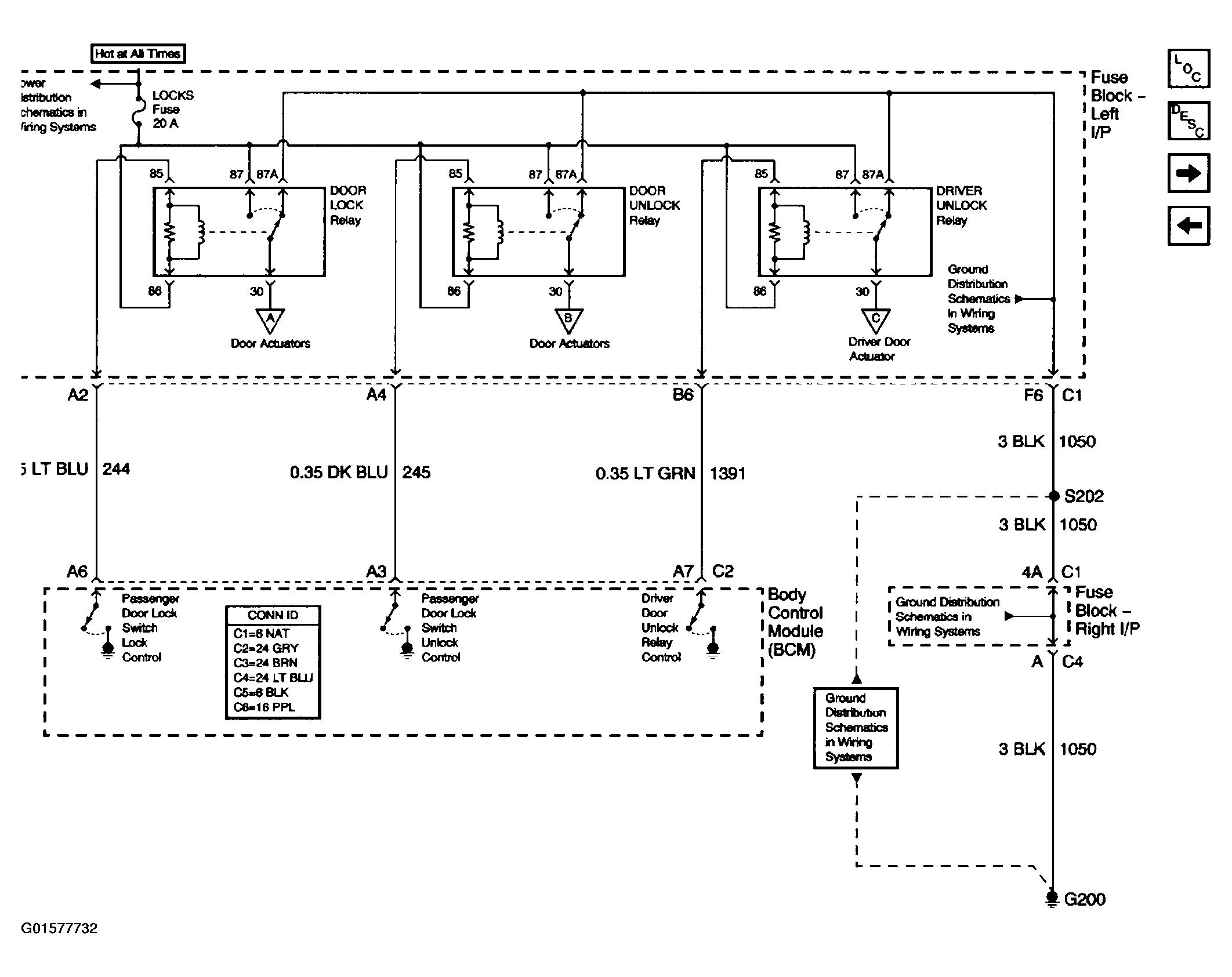

Fig 2: Door Lock/Indicator Schematics (Door Lock Relays-Base)

G01577732

Courtesy of GENERAL MOTORS CORP.

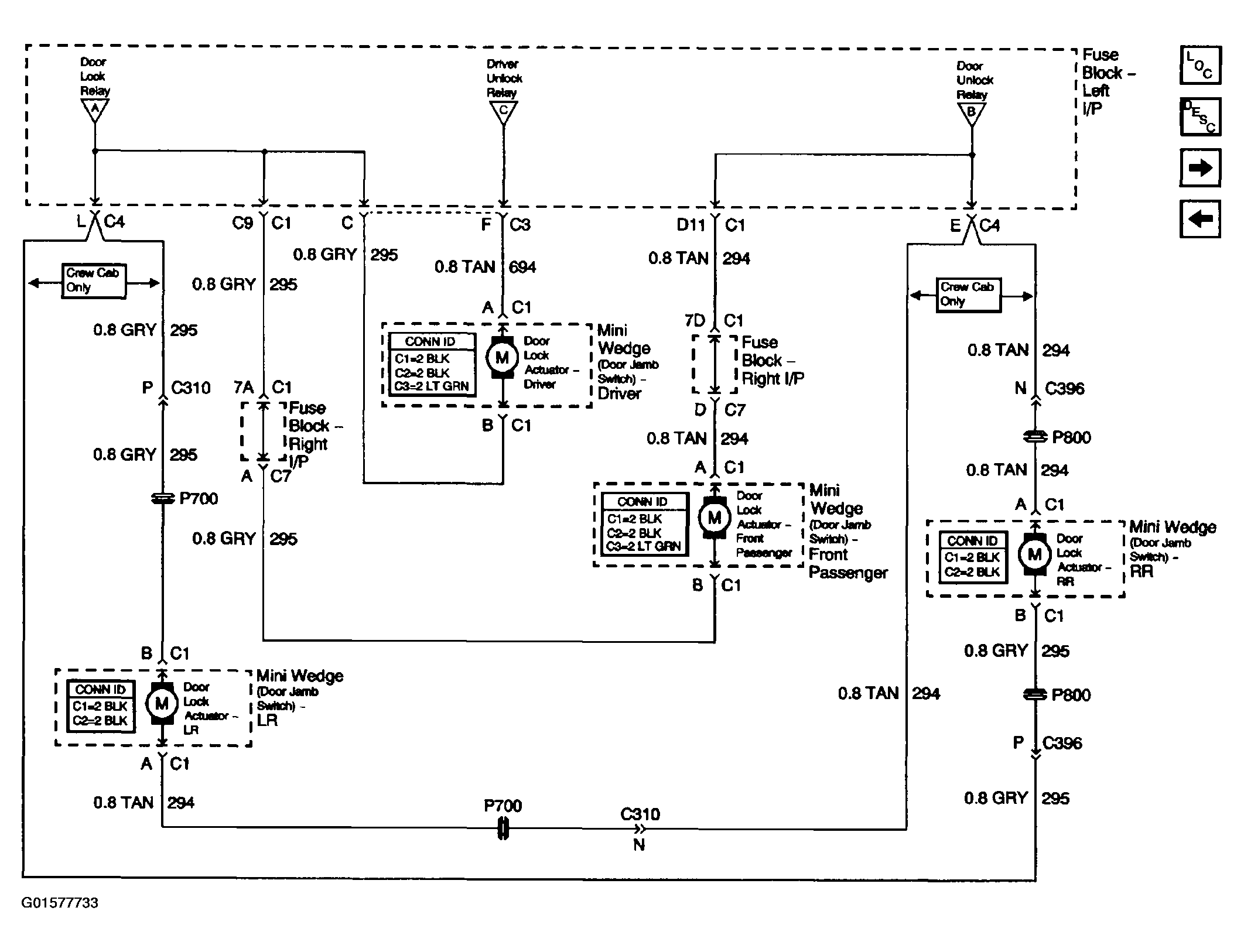

Fig 3: Door Lock/Indicator Schematics (Door Lock Actuators-Base)

G01577733

Courtesy of GENERAL MOTORS CORP.

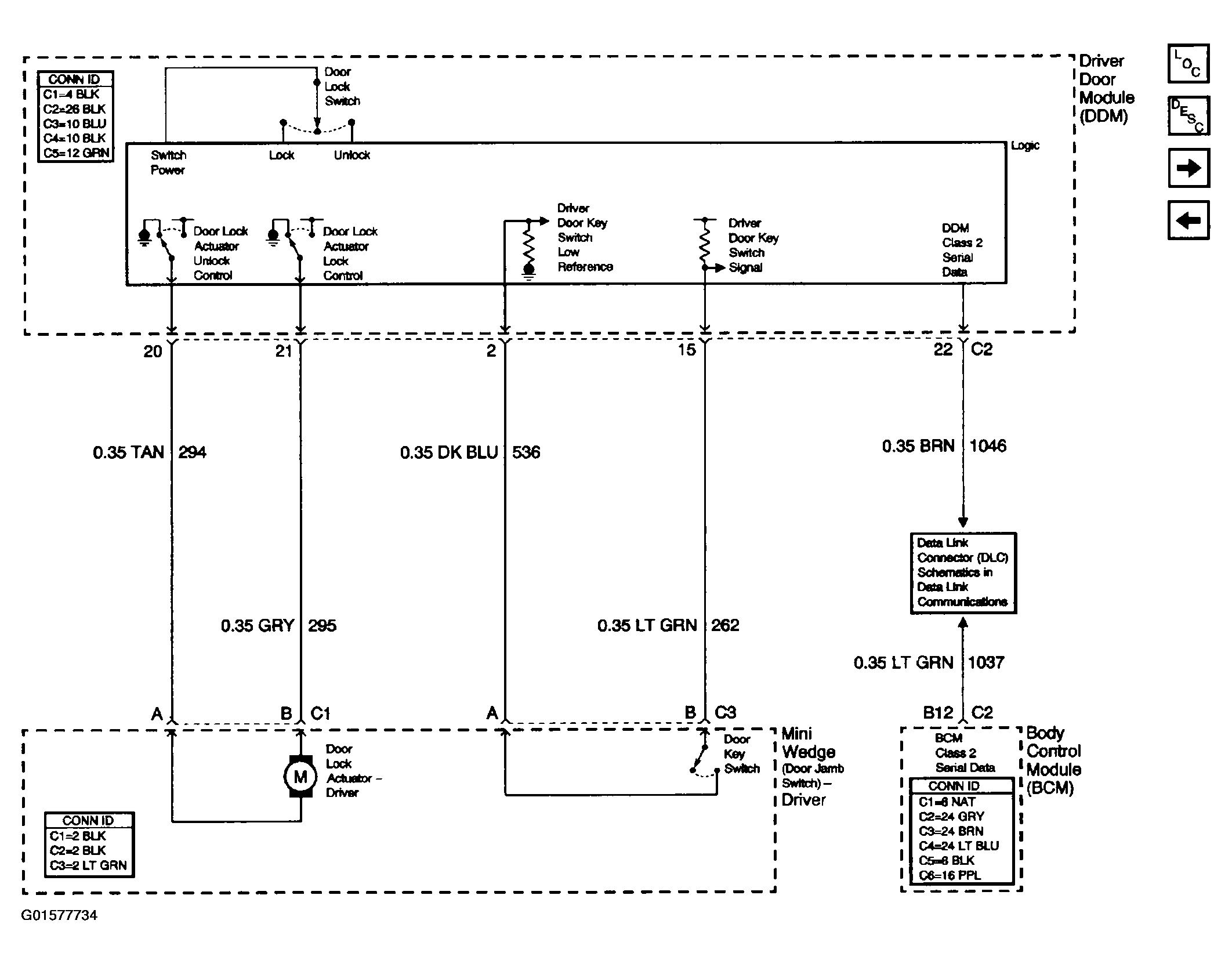

Fig 4: Door Lock/Indicator Schematics (Driver Door Lock Controls - Uplevel)

G01577734

Courtesy of GENERAL MOTORS CORP.

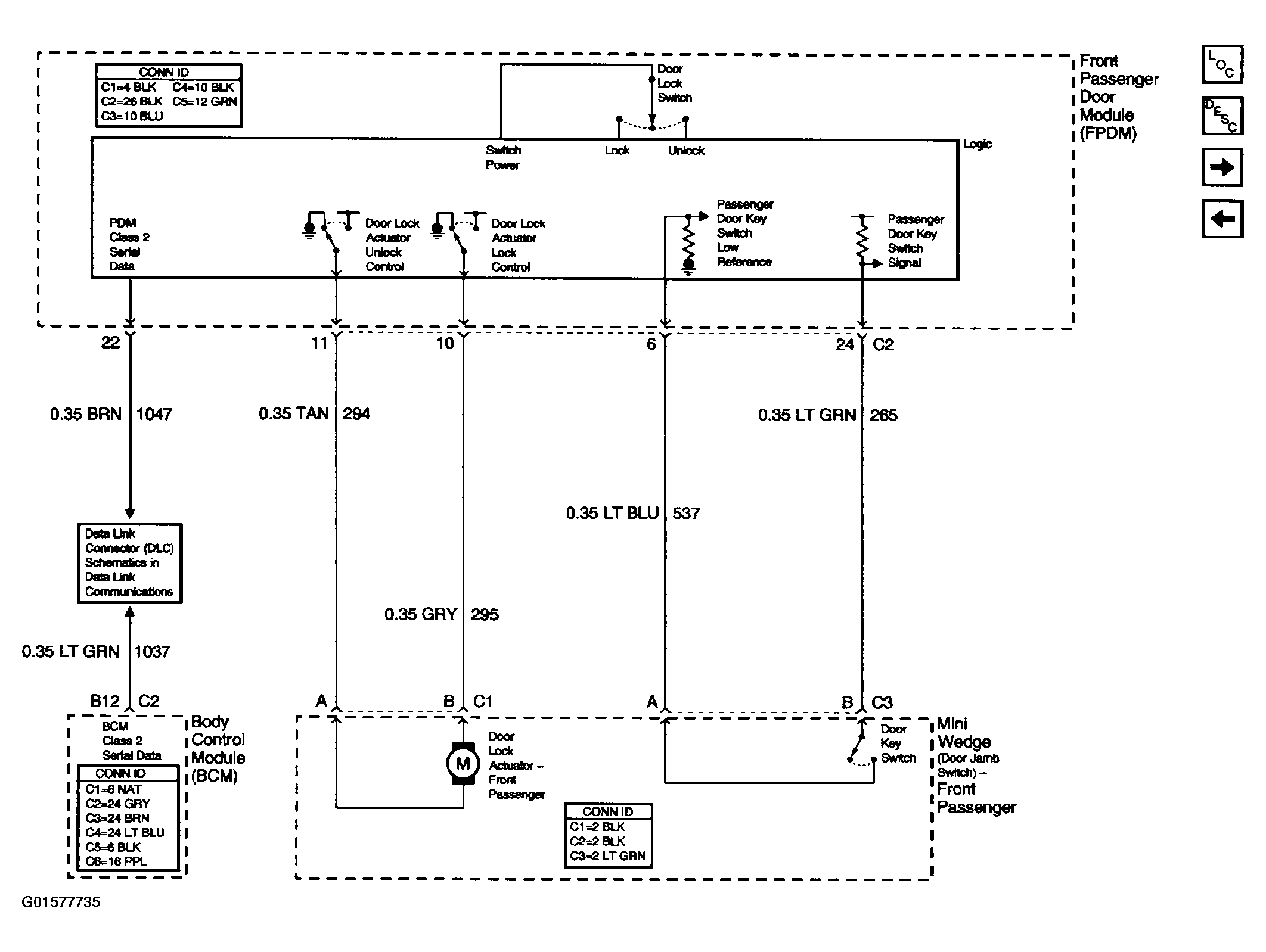

Fig 5: Door Lock/Indicator Schematics (Passenger Door Lock Controls - Uplevel)

G01577735

Courtesy of GENERAL MOTORS CORP.

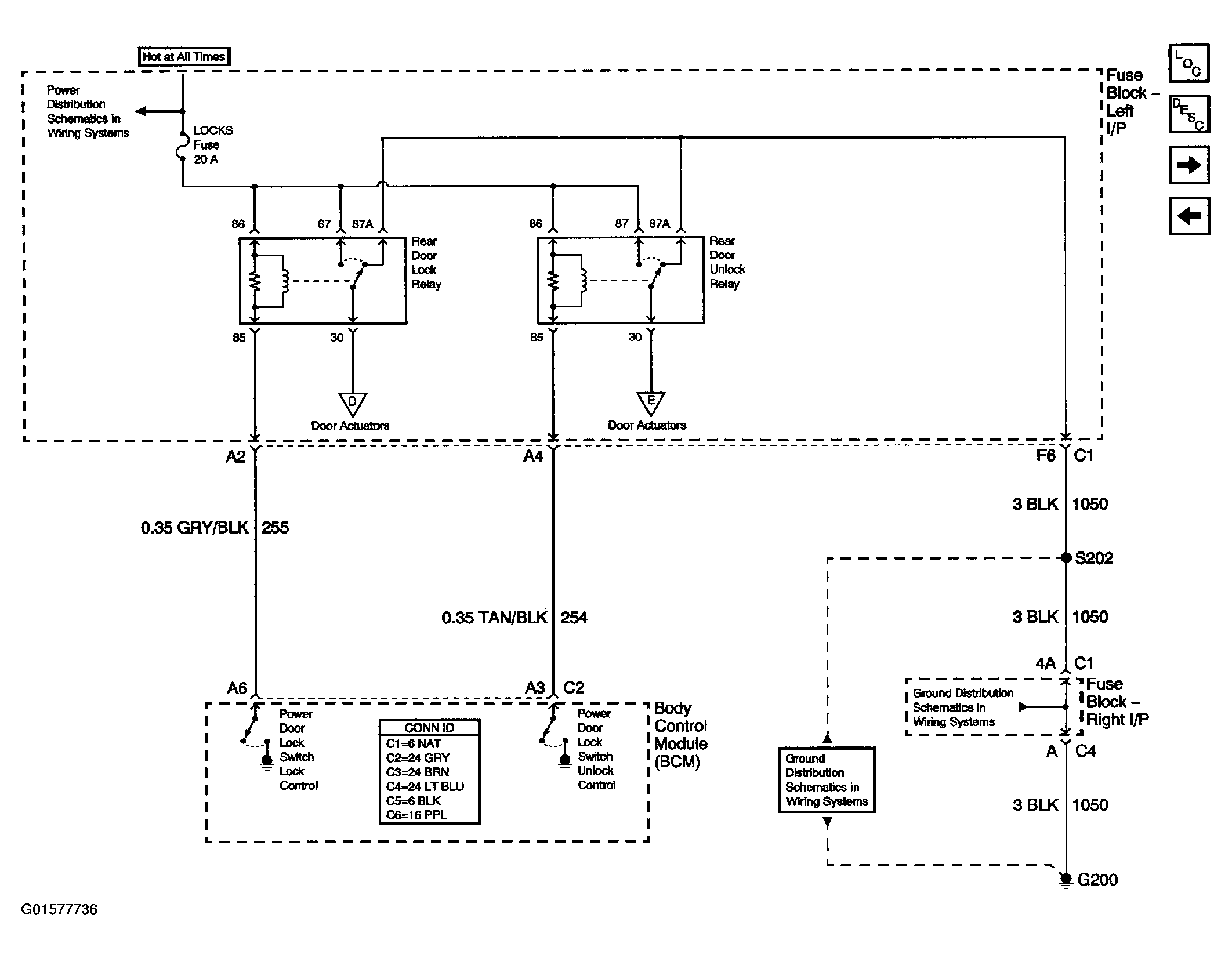

Fig 6: Door Lock/Indicator Schematics (Door Lock Relays - Uplevel W/Crew Cab)

G01577736

Courtesy of GENERAL MOTORS CORP.

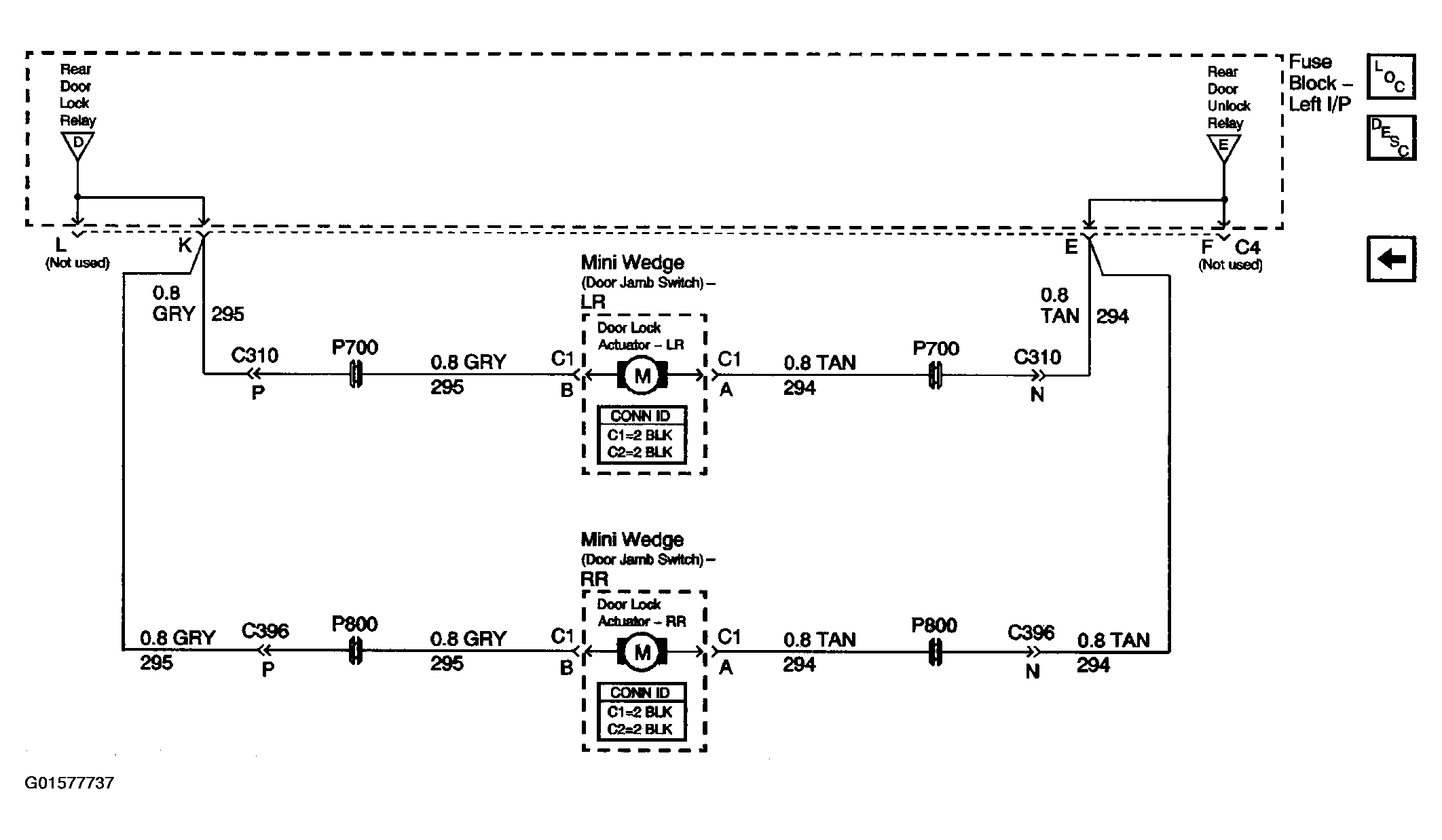

Fig 7: Door Lock/Indicator Schematics (Door Lock Actuators-Uplevel W/Crew Cab)

G01577737

Courtesy of GENERAL MOTORS CORP.
