Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the window. Refer to Window Replacement - Front Door   .
  2. Remove the window glass weatherstrip. Refer to Weatherstrip Replacement - Front Door Window   .
  3. Remove the window run channel bolts.
  4. Remove the front and the rear window run channels from the door.

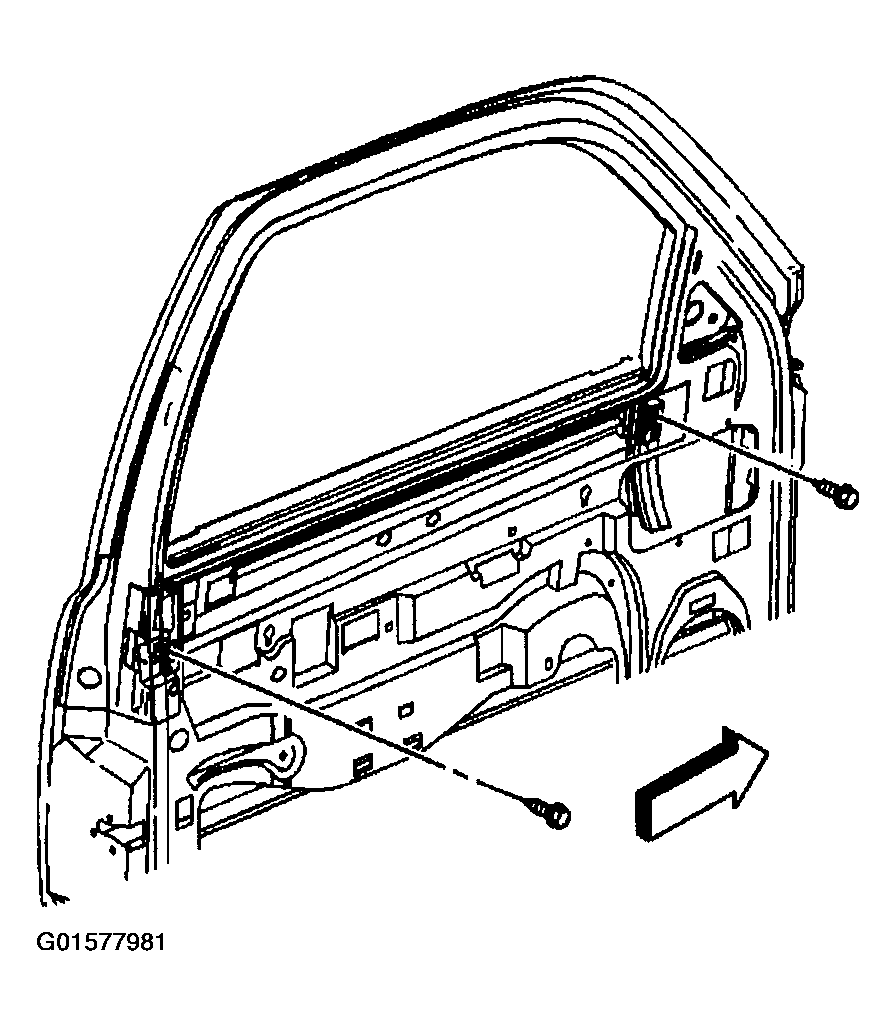

    Fig 1: Removing Front Door Window Run Channel
    G01577981Courtesy of GENERAL MOTORS CORP.
