Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Partially raise the window.
  2. Remove the manual door-lock lever.
  3. Remove the manual window handle, if equipped. Refer to Window Handle Replacement   .
  4. Remove the power accessory switch panel. Refer to Power Window Switch Replacement - Rear Door   .
  5. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door   .
  6. Remove the water deflector. Refer to Water Deflector Replacement - Front Door   .
  7. Remove the front bolt attachment from the window run channel.
  8. Loosen the retaining bolts (1) from the window assembly.
  9. Remove the window glass (2) from the door by sliding the window glass out through the top.

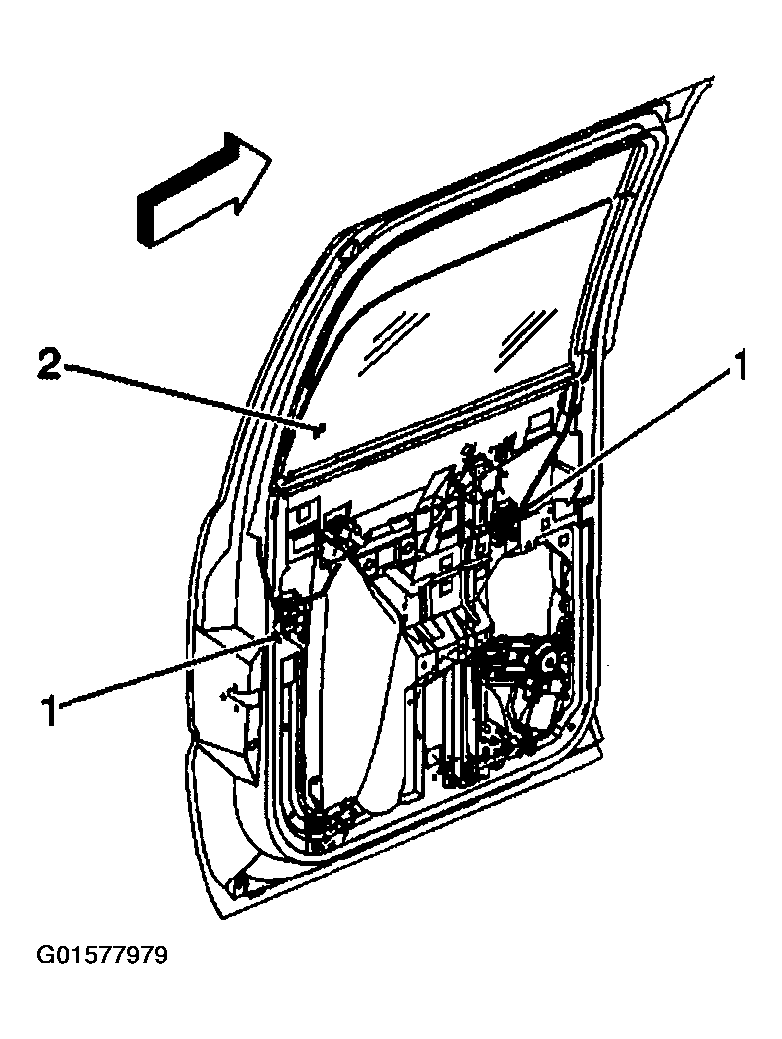

    Fig 1: Removing Rear Door Window
    G01577979Courtesy of GENERAL MOTORS CORP.
