Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the window partially up.
  2. Remove the trim panel upper extension. Refer to Trim Panel Replacement - Upper Extension   .
  3. Remove the manual door lock lever.
  4. Remove the manual window handle, if equipped. Refer to Window Handle Replacement   .
  5. Remove the door switch panel, if equipped. Refer to Switch Replacement - Door Lock & Side Window - Driver  and Switch Replacement - Door Lock & Side Window - Passenger .
  6. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door   .
  7. Remove the water deflector. Refer to Water Deflector Replacement - Front Door   .
  8. Remove the window run channel front bolt attachment.
    IMPORTANT: Do not remove the bolts.
  9. Loosen the 2 retaining bolts (2) from the window assembly.
  10. Remove the window (3) from the door by sliding the window out through the top.

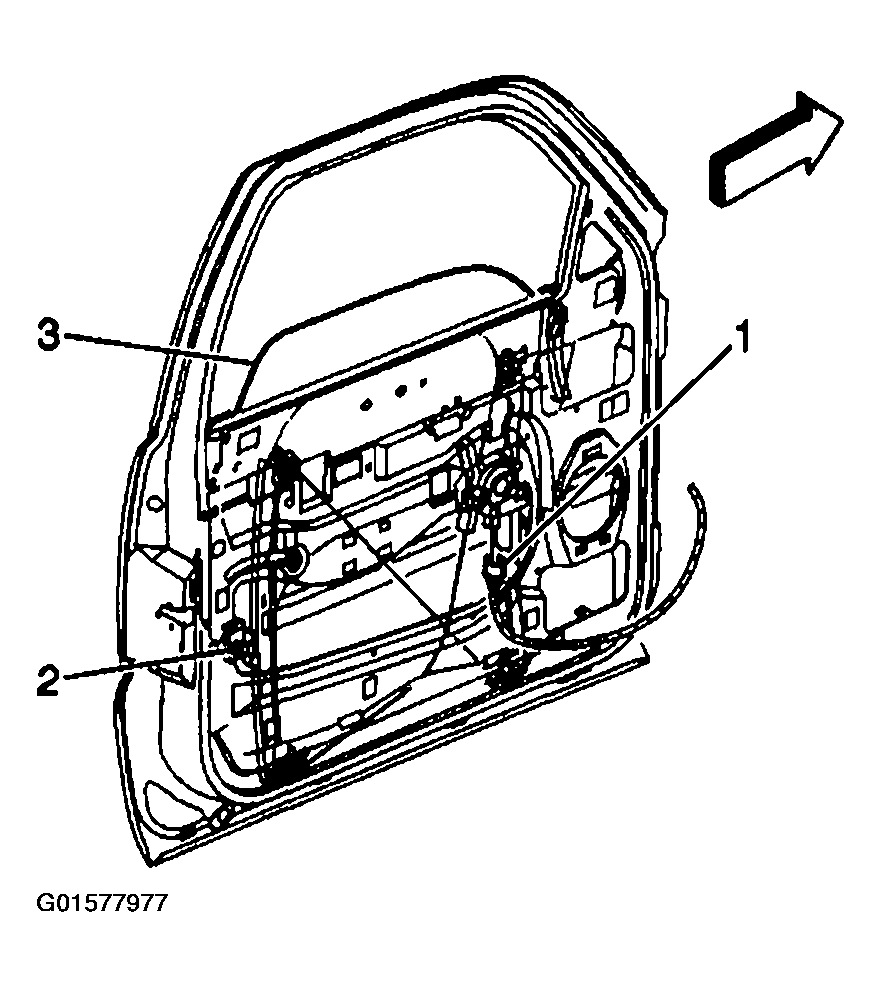

    Fig 1: Removing Front Door Window
    G01577977Courtesy of GENERAL MOTORS CORP.
