Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the window glass.
  2. Remove the trim panel. Refer to Trim Panel Replacement - Side Front Door   .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Front Door   .
  4. Remove the 2 bolts that hold the window to the regulator.
  5. Remove the bolts from the window regulator.
  6. Remove the window regulator assembly from the door by folding both sides together.

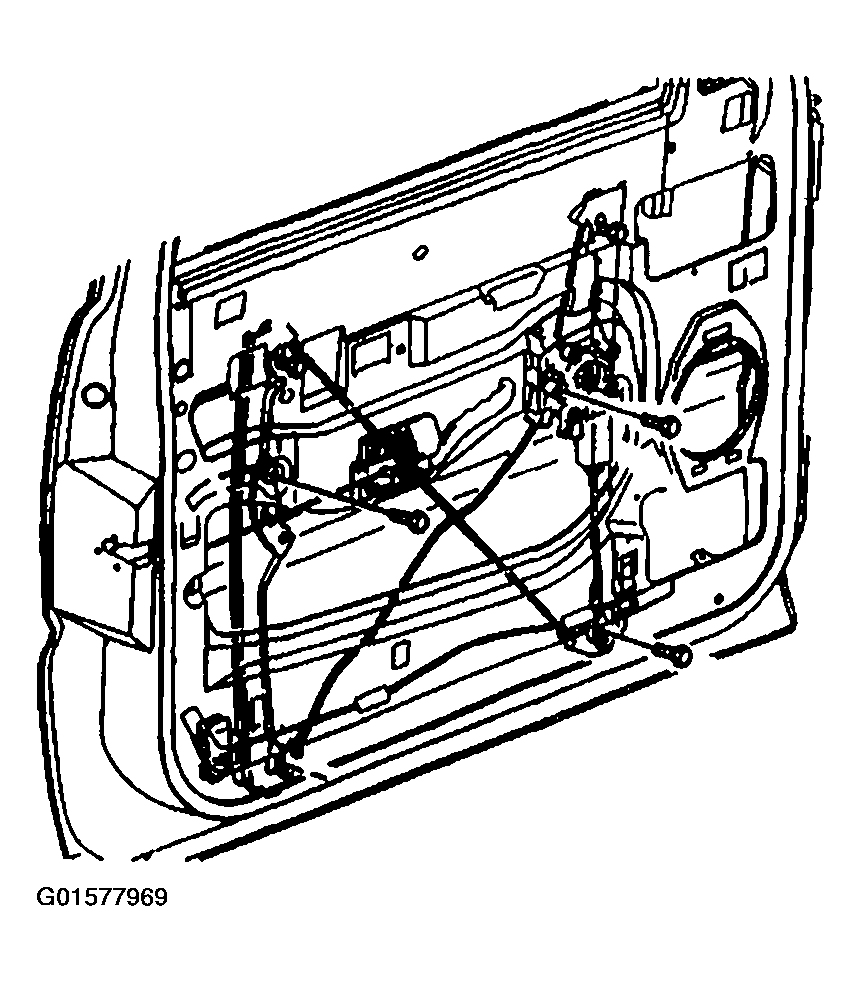

    Fig 1: Removing Front Door Window Regulator
    G01577969Courtesy of GENERAL MOTORS CORP.
