Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open both doors.
  2. Remove the sill plate. Refer to DOOR SILL PLATE REPLACEMENT - FRONT or DOOR SILL PLATE REPLACEMENT - REAR .
  3. Remove the hinge pillar trim pillar. Refer to TRIM PANEL REPLACEMENT - HINGE PILLAR .
  4. Remove the windshield pillar molding. Refer to GARNISH MOLDING REPLACEMENT-WINDSHIELD PILLAR .
  5. Remove the weather-strip from the rear side door pinch-weld flange.

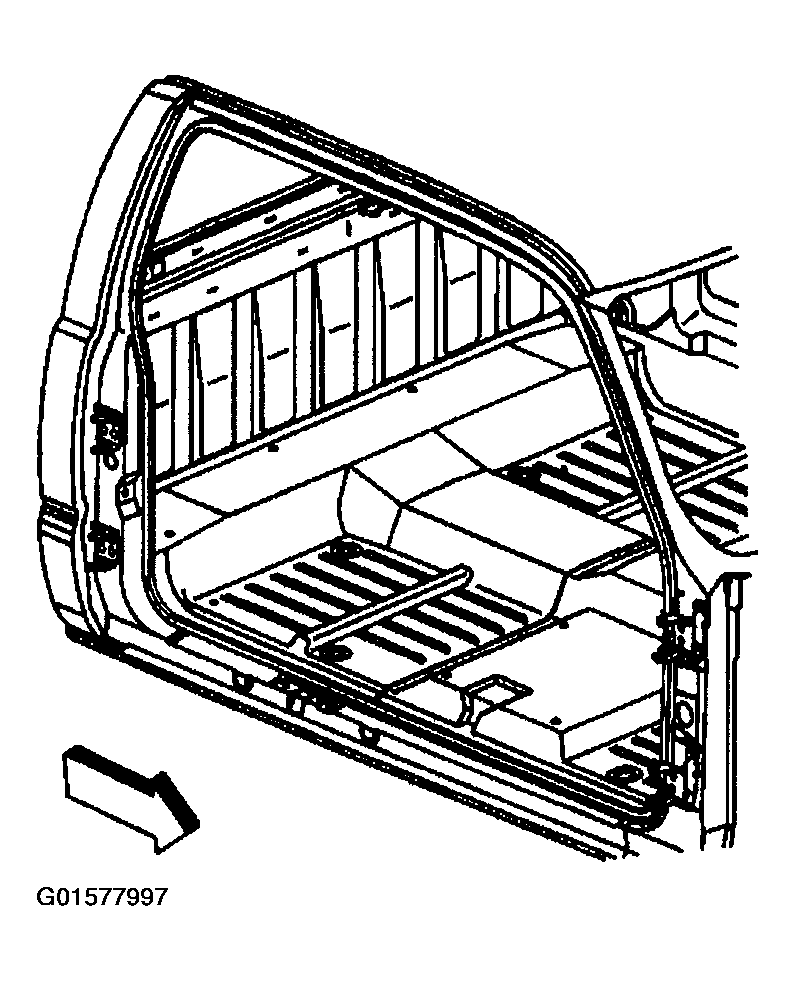

    Fig 1: Removing Side Door Opening Weatherstrip
    G01577997Courtesy of GENERAL MOTORS CORP.
