Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear door.
  2. Remove the rear door weatherstrip by pulling the weatherstrip from the track.
  3. Release push-in retainers on lower weatherstrip from door.
  4. Remove the rear door weatherstrip from the rear door.

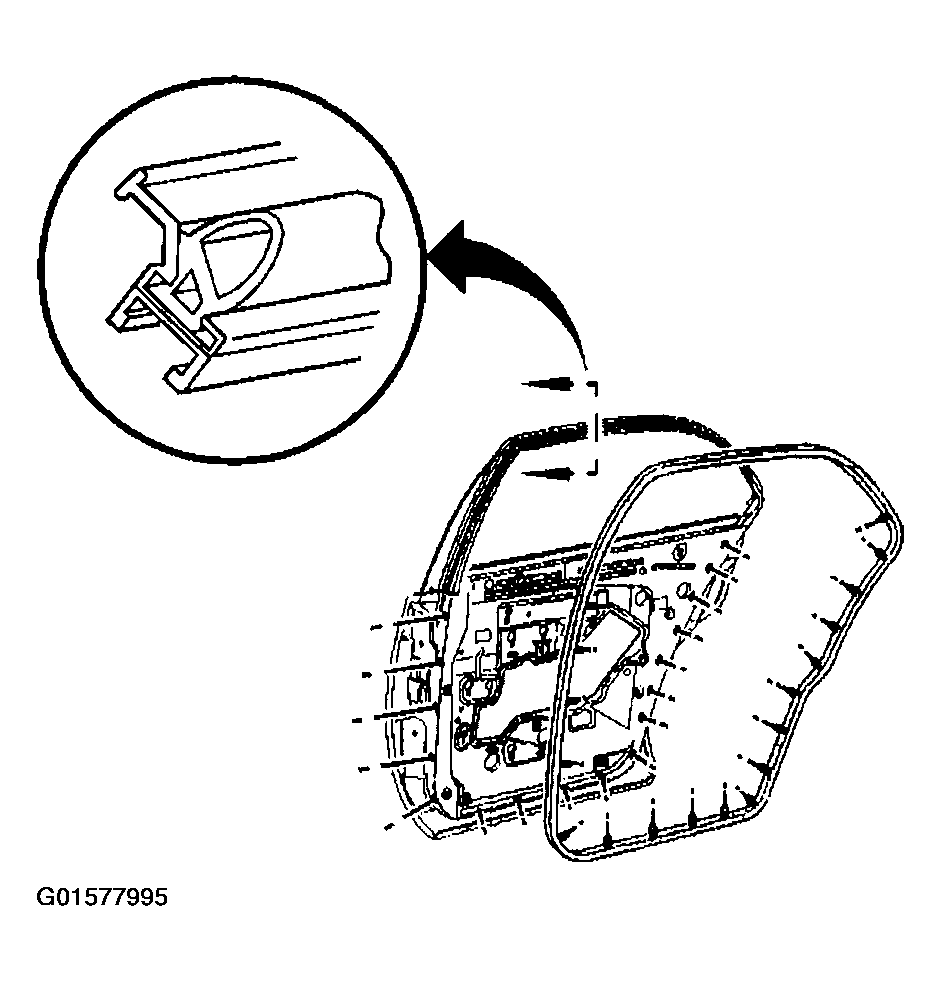

    Fig 1: Removing Rear Door Weatherstrip
    G01577995Courtesy of GENERAL MOTORS CORP.
