Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the door.
  2. Remove the sill plate. Refer to DOOR SILL PLATE REPLACEMENT - FRONT .
  3. Remove the hinge pillar trim panel. Refer to TRIM PANEL REPLACEMENT - HINGE PILLAR .
  4. Remove the windshield pillar molding. Refer to GARNISH MOLDING REPLACEMENT-WINDSHIELD PILLAR .
  5. Remove the weatherstrip from the rear side door opening. Pull the unit away from channel, separating the weatherstrip from the pinchwed flange.

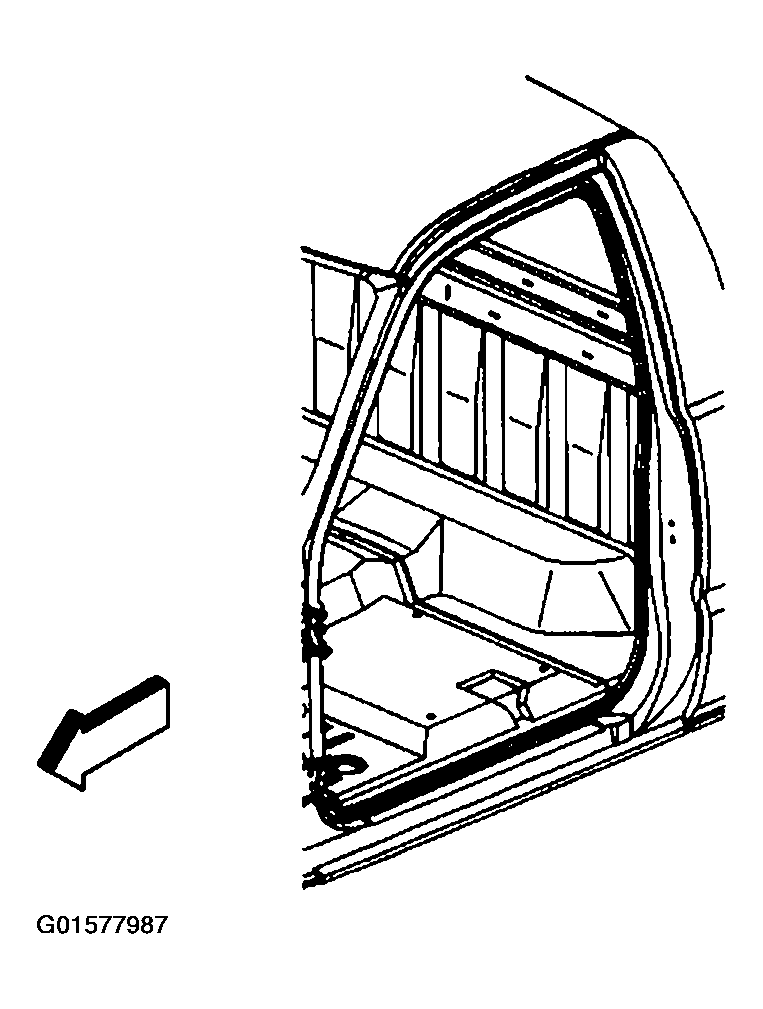

    Fig 1: Removing Front Door Weatherstrip
    G01577987Courtesy of GENERAL MOTORS CORP.
