Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door   .
  2. Remove the water deflector Refer to Water Deflector Replacement - Front Door   .
  3. Remove the window. Refer to Window Replacement - Front Door   .
  4. Remove the screws.
  5. Pull the weatherstrip from the following locations:
    • The front of the glass run channel
    • The top of the window frame flange
    • The rear of the glass run channel
  6. Remove the weatherstrip from the door.

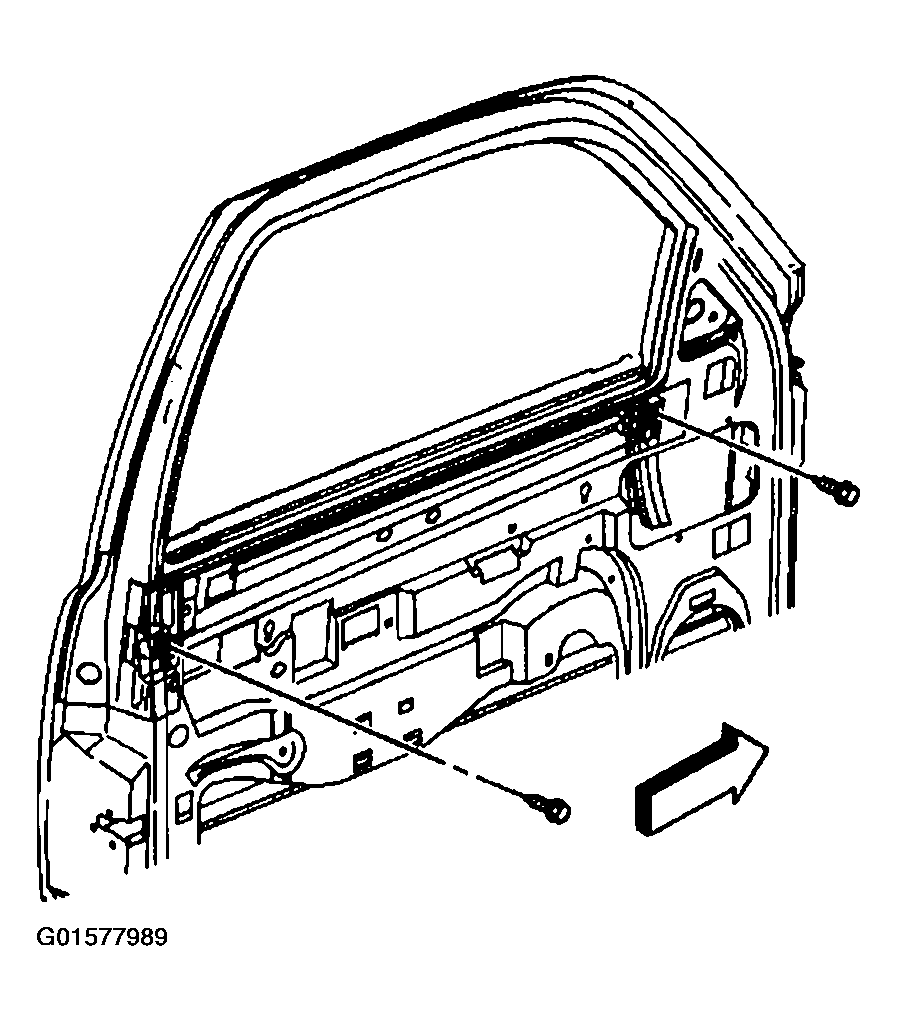

    Fig 1: Removing Front Door Window Weatherstrip
    G01577989Courtesy of GENERAL MOTORS CORP.
