Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Water deflectors seal the inner panel. Water deflectors prevent water from entering into the body. A strip of adhesive between the deflector and the door secures the deflector.
  1. Remove the trim panel. Refer to Trim Panel Replacement - Side Access Door   .
  2. Using a flat-blade tool, break the bond between the sealer and the door.
  3. Pull the waterproof sealing tape from the deflectors.
  4. Remove the water deflectors.

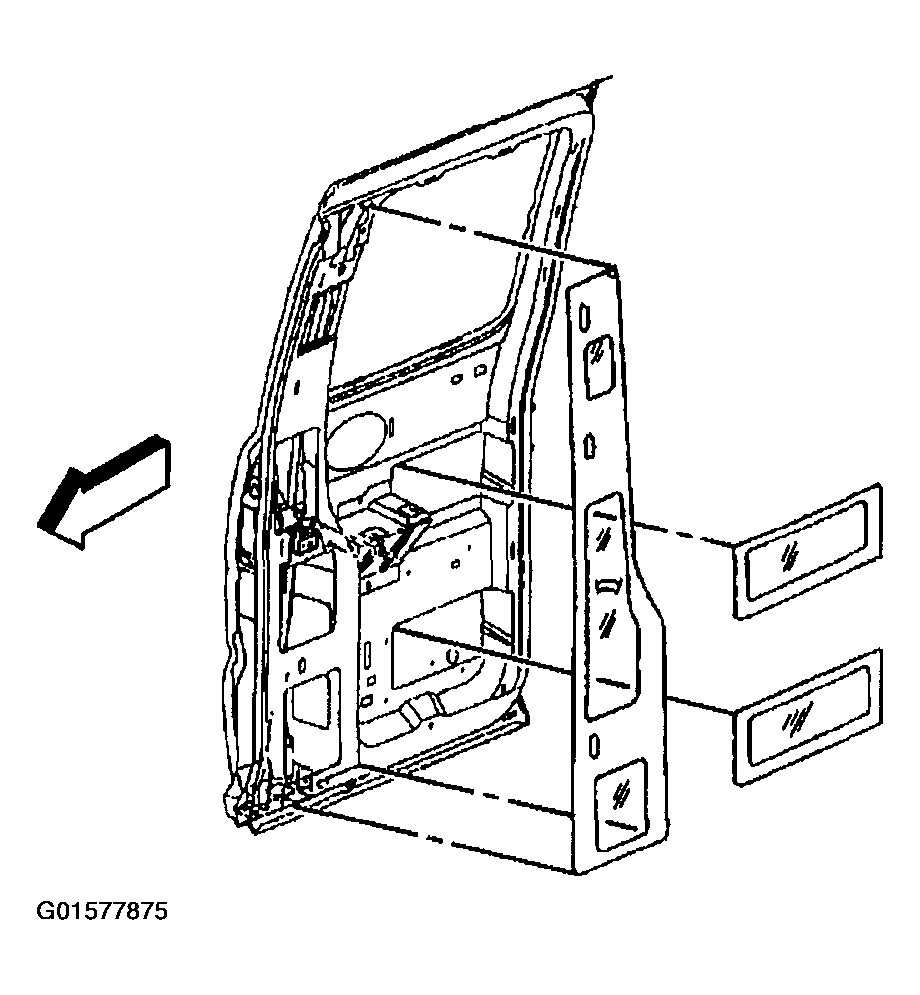

    Fig 1: Removing Water Deflector - Side Access
    G01577875Courtesy of GENERAL MOTORS CORP.
