Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front door.
  2. Release the upper extension by pulling outward in order to release the upper retainer clip.
  3. Remove the upper extension from the trim panel by lifting up and out.

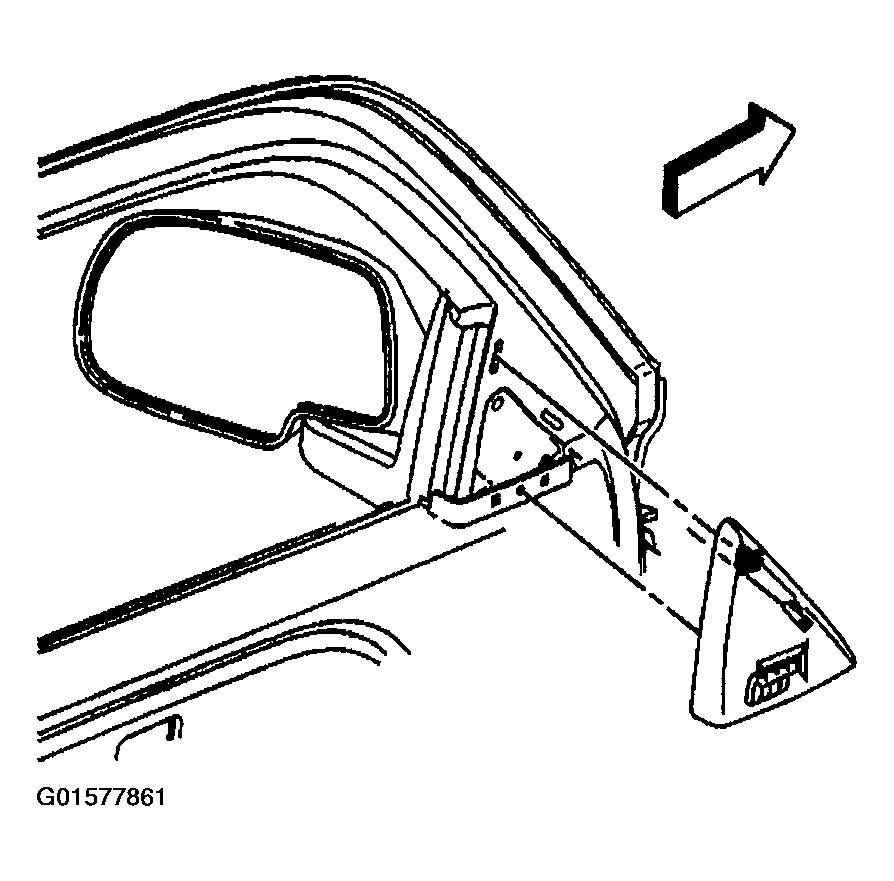

    Fig 1: Trim Panel - Upper Extension
    G01577861Courtesy of GENERAL MOTORS CORP.
