Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door handle bezel. Refer to Handle Bezel Replacement - Inside   .
  2. Remove the window handle, if equipped. Refer to Window Handle Replacement   .
  3. Remove the upper extension of the trim panel. Refer to Trim Panel Replacement - Upper Extension   .
  4. Remove the manual lock lever from the trim panel using a flat-bladed tool.
  5. Remove the trim panel screws.
  6. Disconnect the electrical connectors.
  7. Remove the courtesy lamp, if equipped. Refer to COURTESY LAMP/REFLECTOR REPLACEMENT-DOOR .
  8. Remove the trim panel from the door. Carefully slide the trim panel up in order to release the retainers from the door.
  9. Remove the switch panel. Refer to Switch Replacement - Door Lock & Side Window - Driver   and Switch Replacement - Door Lock & Side Window - Passenger   .

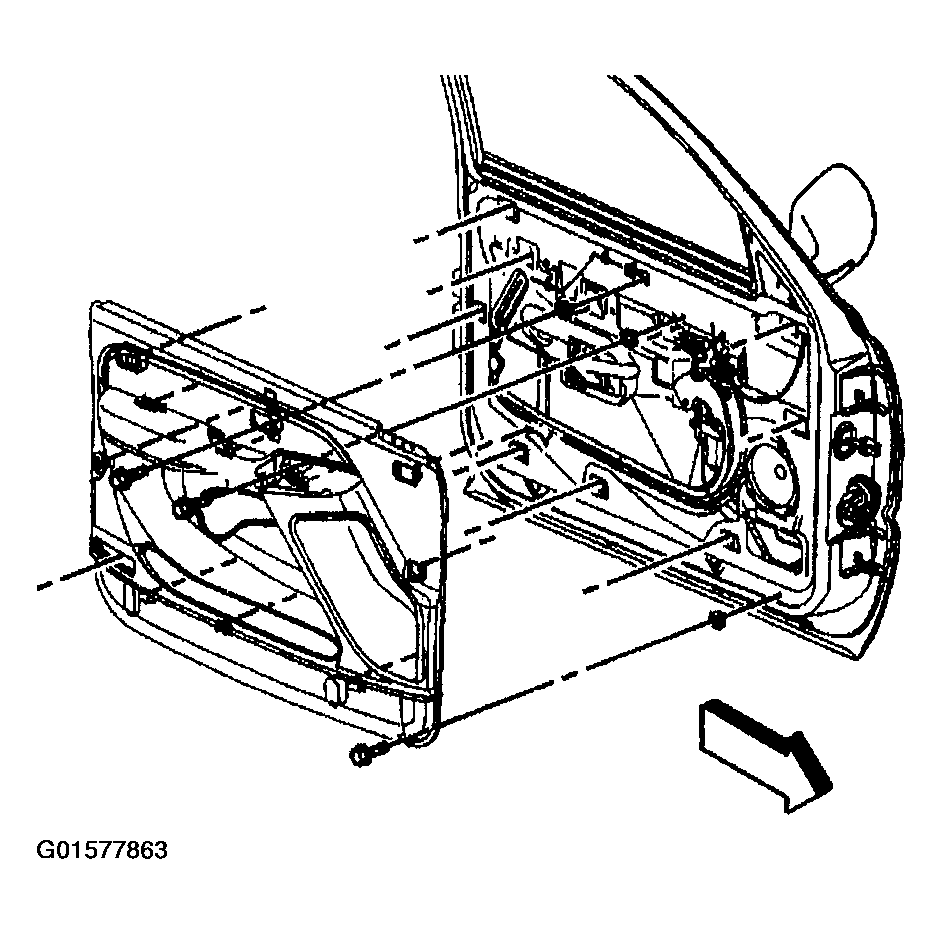

    10. Fig 1: Trim Panel - Side Front Door
    G01577863Courtesy of GENERAL MOTORS CORP.
