Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door   .
  2. Disconnect the electrical connectors.
  3. Remove the screw that retains the switch panel bezel (1) from the front door panel.
    Fig 1: Removing Screws Retaining Switch Panel Bezel
    G01577847Courtesy of GENERAL MOTORS CORP.
  4. Remove the switch panel bezel from the door panel using a flat-bladed tool.
    Fig 2: Removing Switch Panel Bezel From Door Panel
    G01577848Courtesy of GENERAL MOTORS CORP.
  5. Using a wide plastic flat-bladed tool, release the retaining clips on both sides of the door module.
  6. Remove the door module from the switch panel bezel.

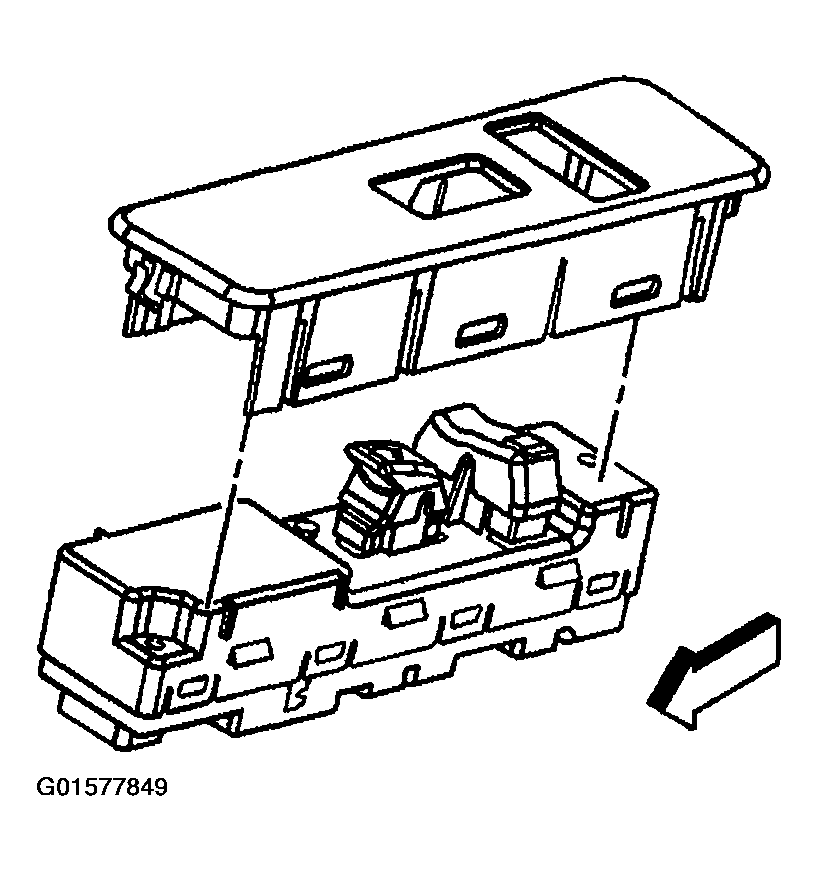

    Fig 3: Removing Door Module From Switch Panel Bezel
    G01577849Courtesy of GENERAL MOTORS CORP.
