Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the side access door.
  2. Remove the lower door striker bolts.
  3. Remove the lower door striker from the vehicle.

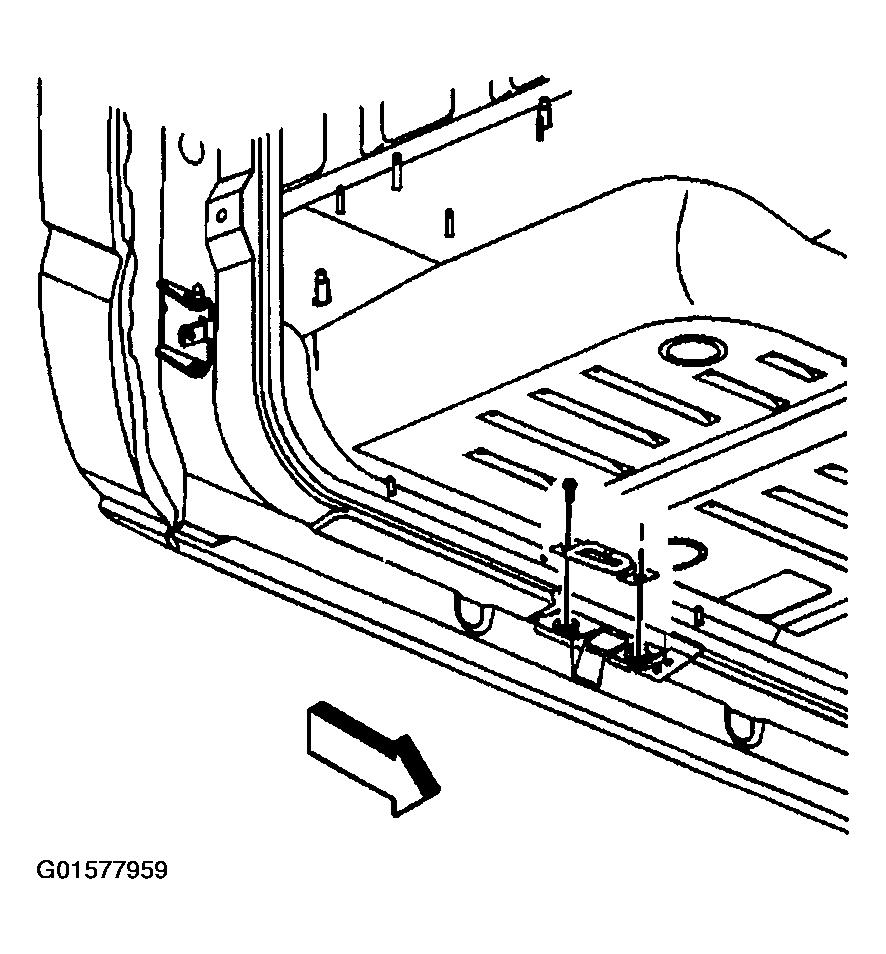

    Fig 1: Removing Lower Striker
    G01577959Courtesy of GENERAL MOTORS CORP.
