Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower door striker to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the lower door striker bolts.

    Tighten

    Tighten the lower door striker bolts to 24 N.m (18 lb ft).

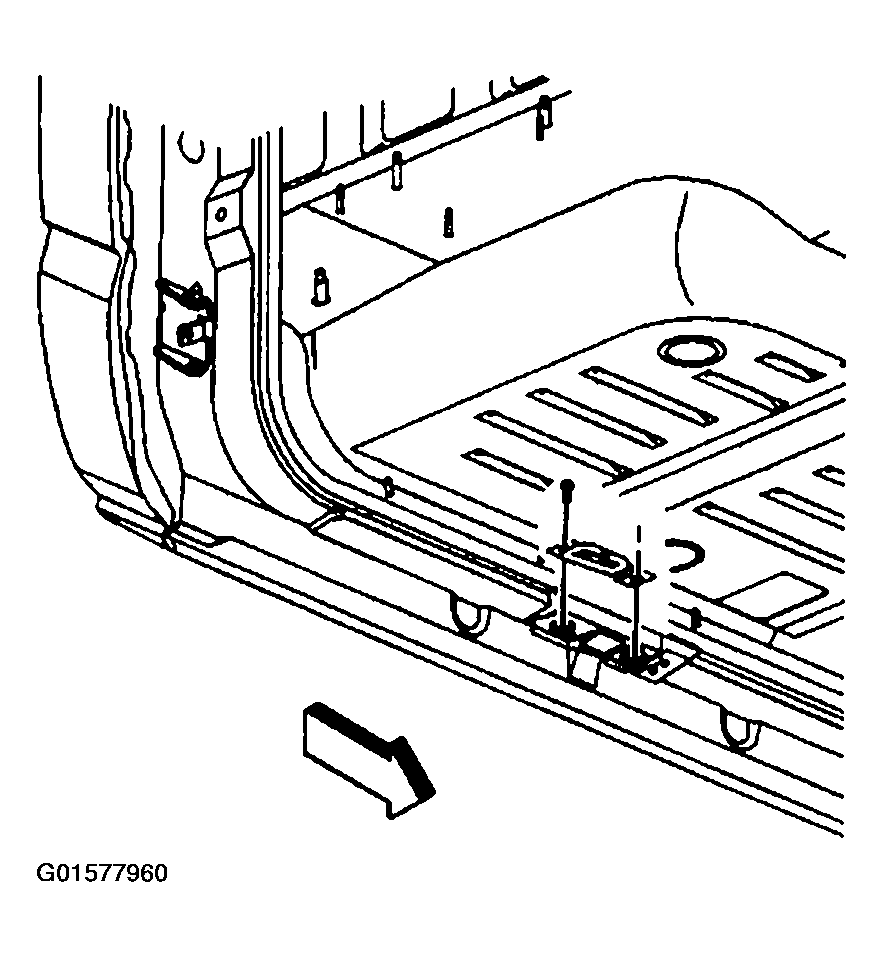

    Fig 1: Installing Lower Striker
    G01577960Courtesy of GENERAL MOTORS CORP.
