Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Remove the trim panel upper extension. Refer to Trim Panel Replacement - Upper Extension .
Remove the insulator, if equipped.
Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
Disconnect the mirror wiring harness from the door.

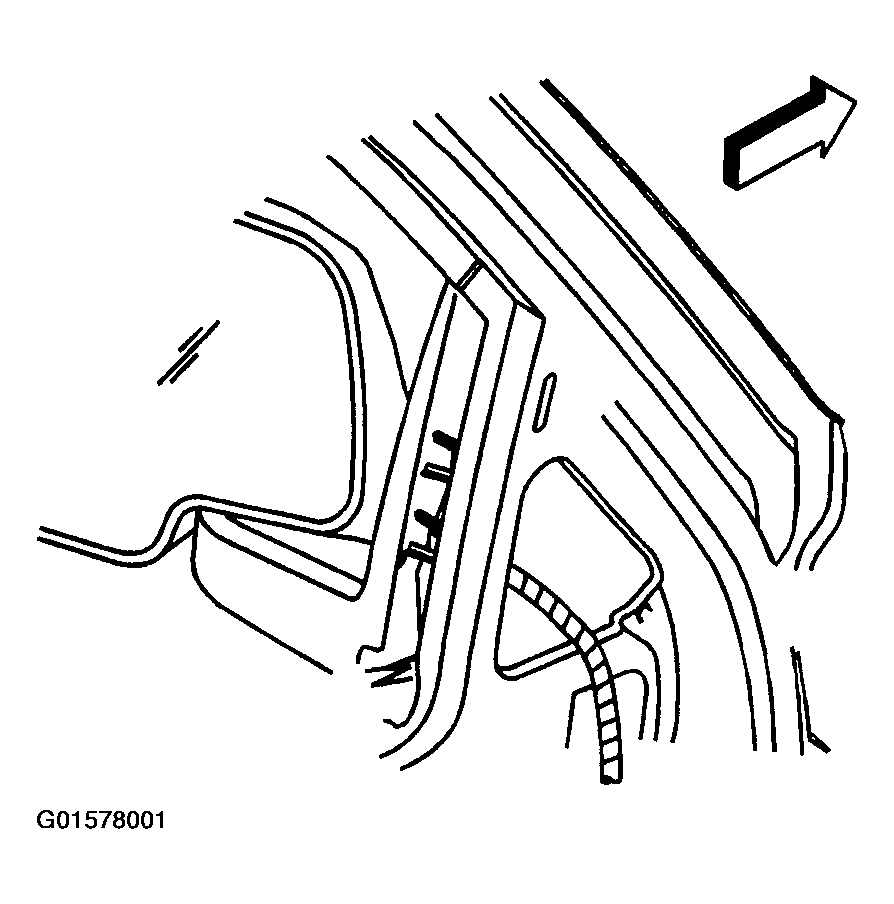

Fig 1: Removing Insulator
Courtesy of GENERAL MOTORS CORP.
Remove the nuts securing the outside mirror to the door.
Remove the mirror from the door.

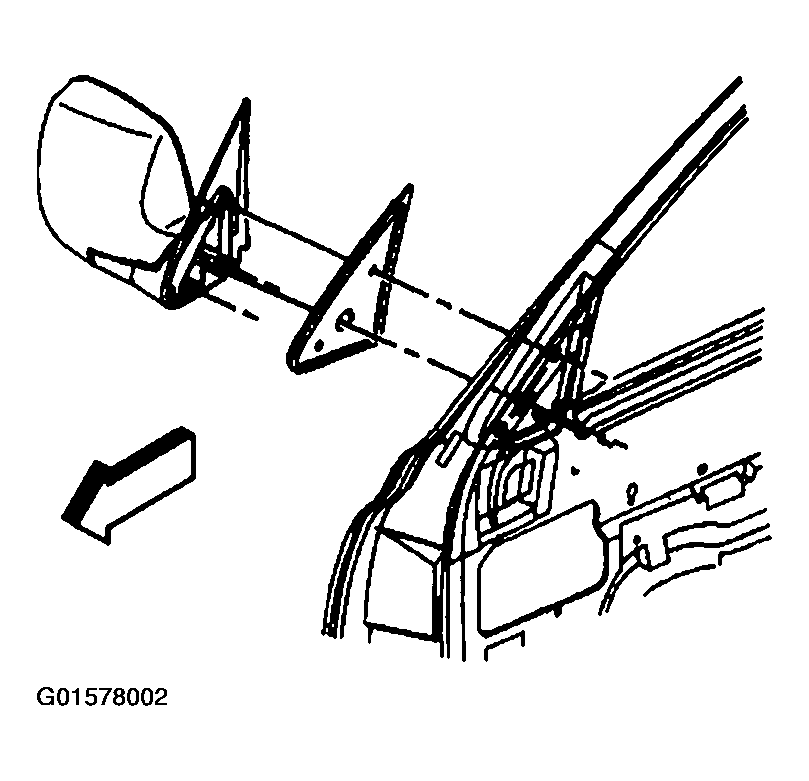

Fig 2: Removing Mirror & Nuts
Courtesy of GENERAL MOTORS CORP.
