Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the window completely.
  2. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door   .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Front Door   .
  4. Remove the outside door handle. Refer to Door Handle Replacement - Outside   .
  5. Remove the clip that retains the lock cylinder lever to the lock cylinder.
  6. Remove the lock cylinder retainer. Remove the lock cylinder from the outside door handle.

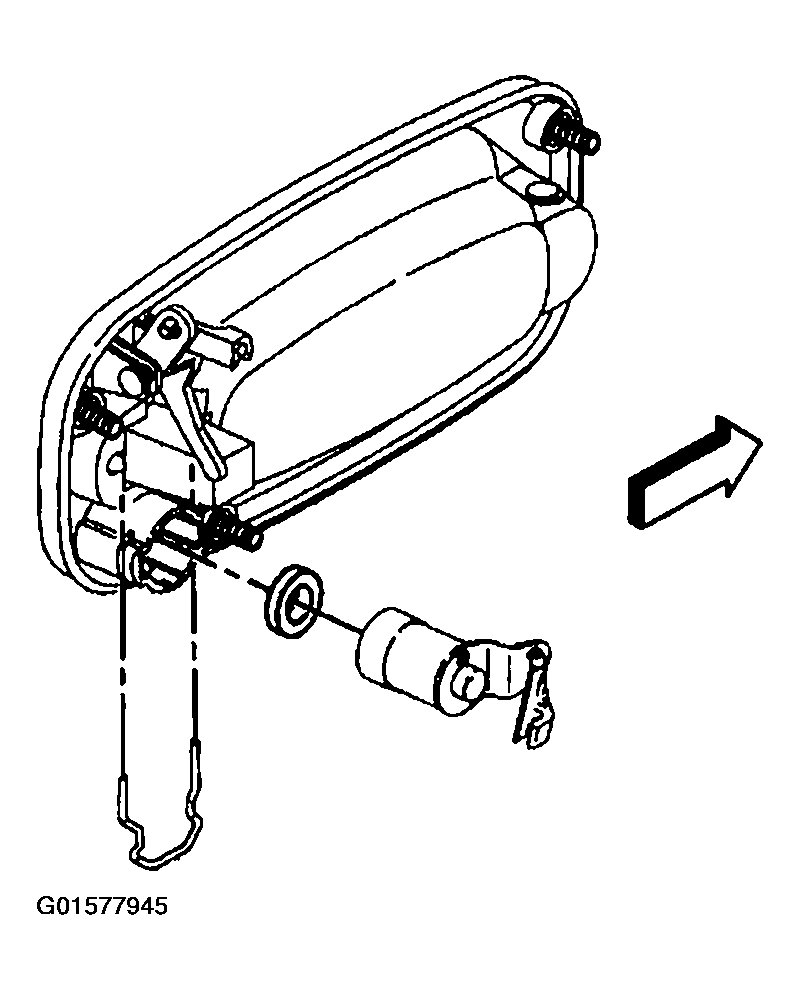

    Fig 1: Removing Door Lock Cylinder
    G01577945Courtesy of GENERAL MOTORS CORP.
