Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel. Refer to Trim Panel Replacement - Side Access Door   .
  2. Remove the water deflector. Refer to Water Deflector Replacement - Front Door   .
  3. Remove the outside handle rod from the rod clip.

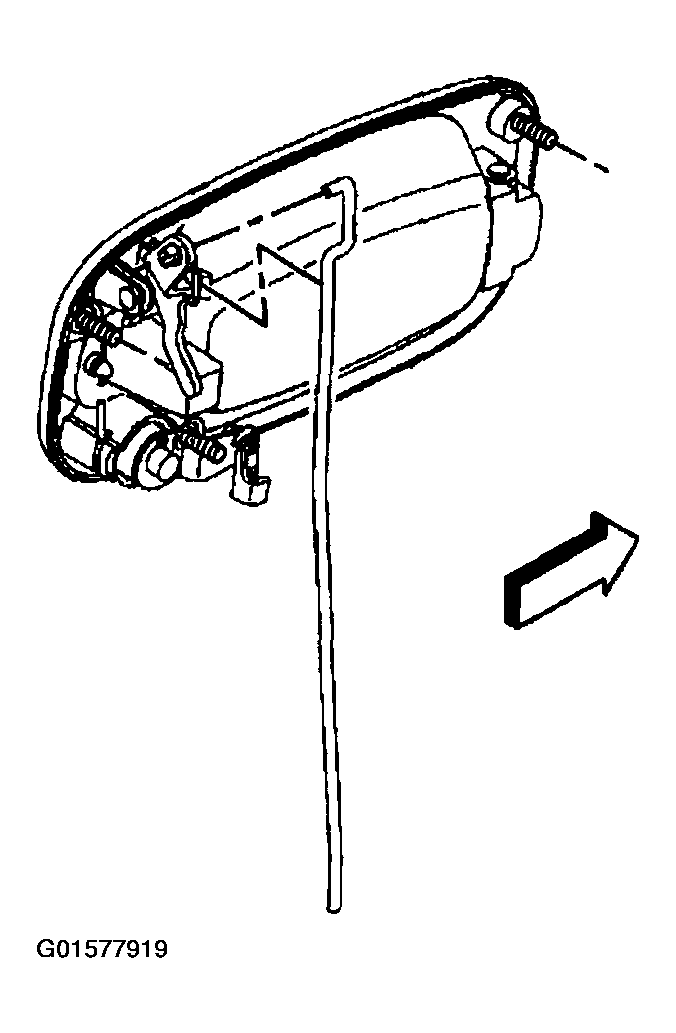

    Fig 1: Removing Outside Handle Rod
    G01577919Courtesy of GENERAL MOTORS CORP.
  4. Remove the lock cylinder rod from the rod clip.
  5. Apply masking tape across the door handle on the outside of the door to secure handle while removing the nuts.
  6. Remove the outside handle mounting nuts.

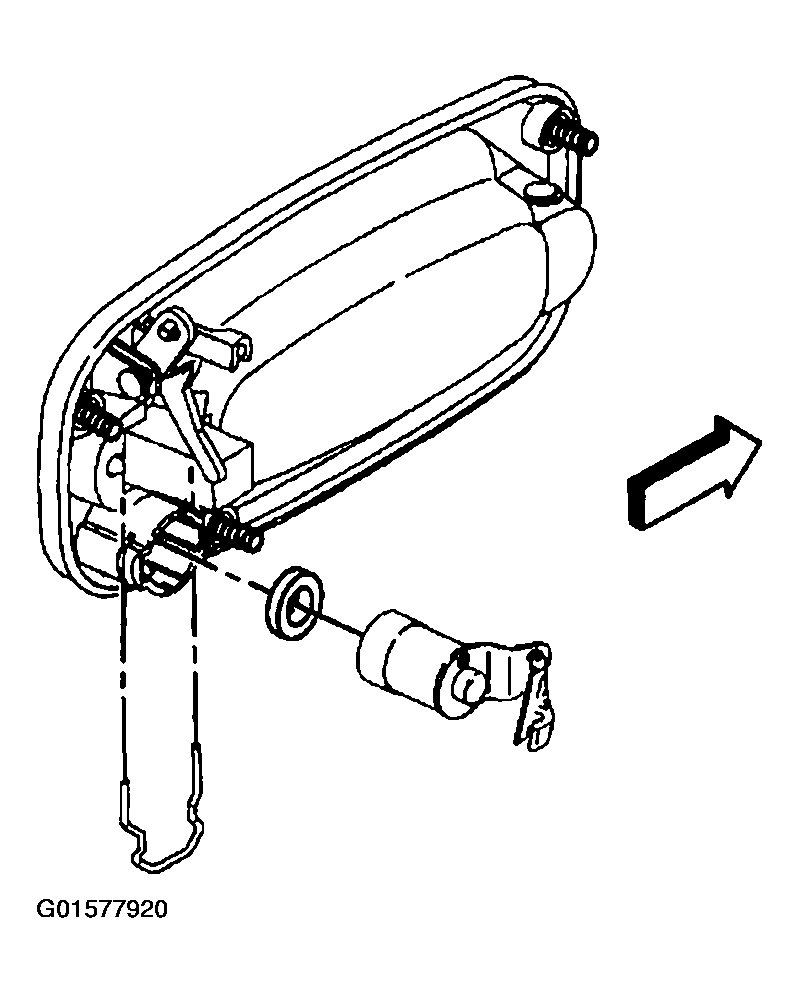

    Fig 2: Removing Outside Handle Mounting Nuts
    G01577920Courtesy of GENERAL MOTORS CORP.
  7. Remove the rubber cover in order to gain access to the outboard nut.
  8. Remove the door lock cylinder from the outside handle housing.

    In order to repair a binding lock cylinder, refer to Binding Lock Cylinders   .

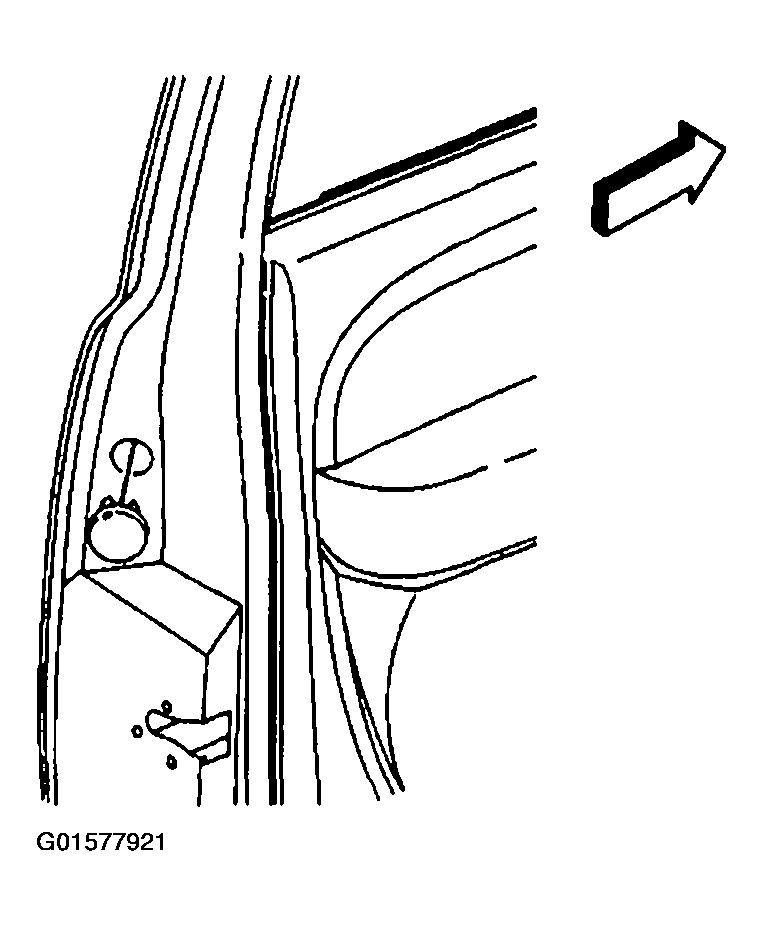

    Fig 3: Removing Rubber Cover
    G01577921Courtesy of GENERAL MOTORS CORP.
  9. Remove the handle.
    Fig 4: Removing Handle
    G01577922Courtesy of GENERAL MOTORS CORP.
