Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel. Refer to Trim Panel Replacement - Side Front Door   .
  2. Remove the inside door handle mounting bolts.
  3. Slide the inside door handle forward to release the unit from the door.

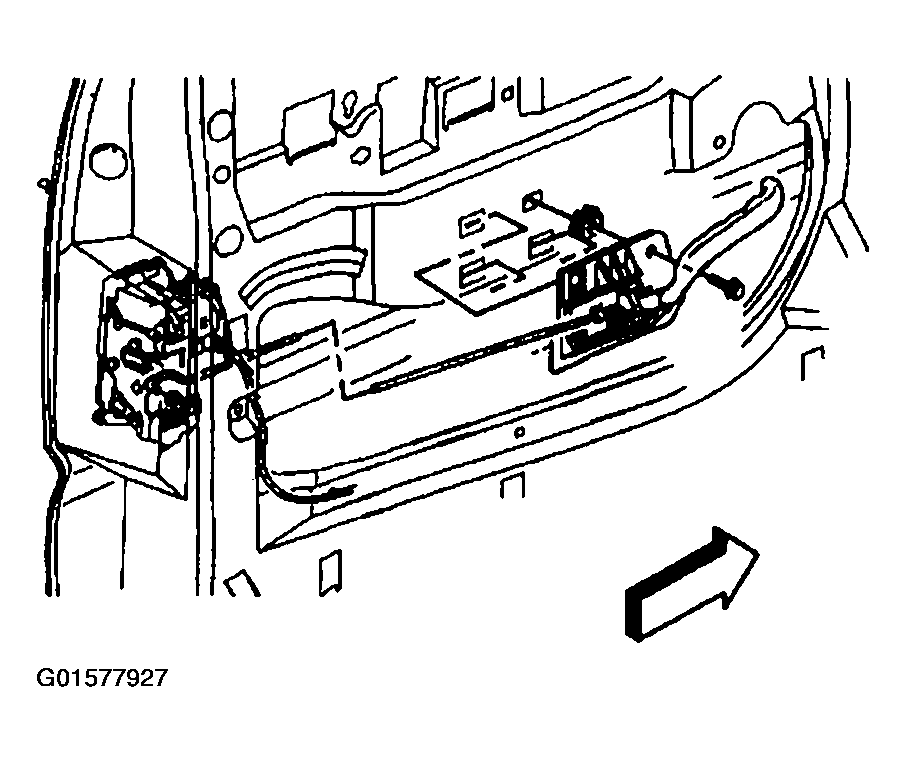

    Fig 1: Removing Inside Door Handle Mounting Bolts
    G01577927Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the control rod from the inside door handle.
  5. Remove the door handle assembly from the door.

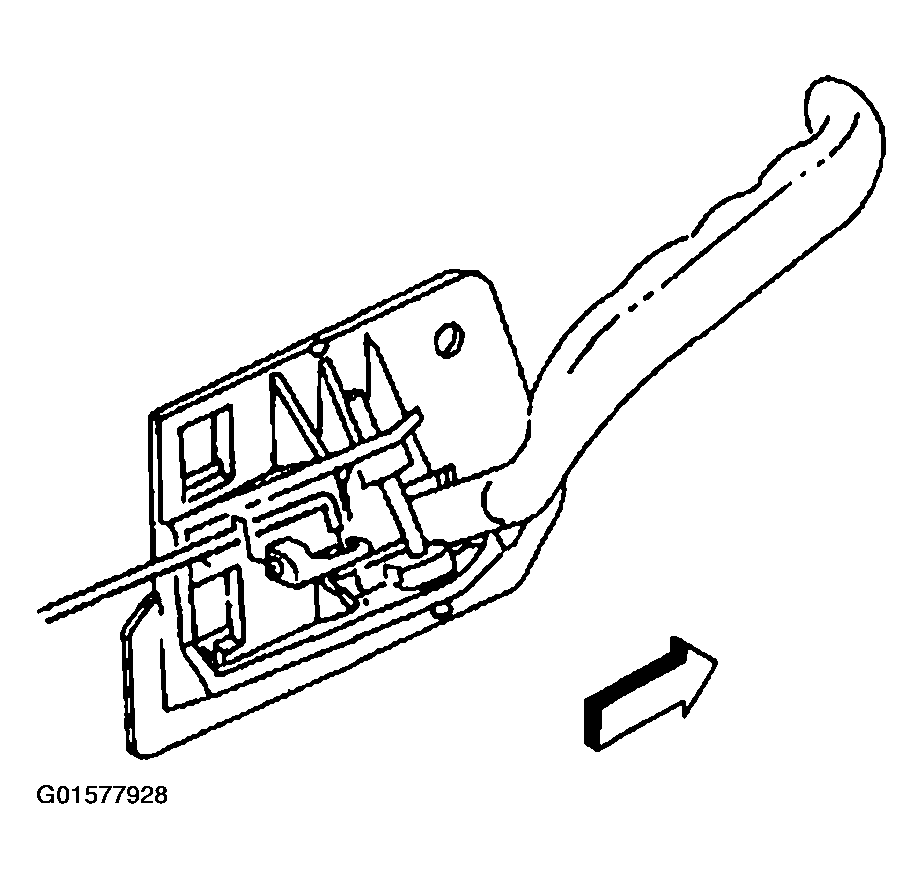

    Fig 2: Removing Door Handle Assembly
    G01577928Courtesy of GENERAL MOTORS CORP.
