Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully open the door.
  2. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door   .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Front Door   .
  4. Remove the body-side check strap bolt.
  5. Remove the check strap plug.
  6. Remove the door-side check strap nuts.
  7. Pull the check strap from the inside of the door.

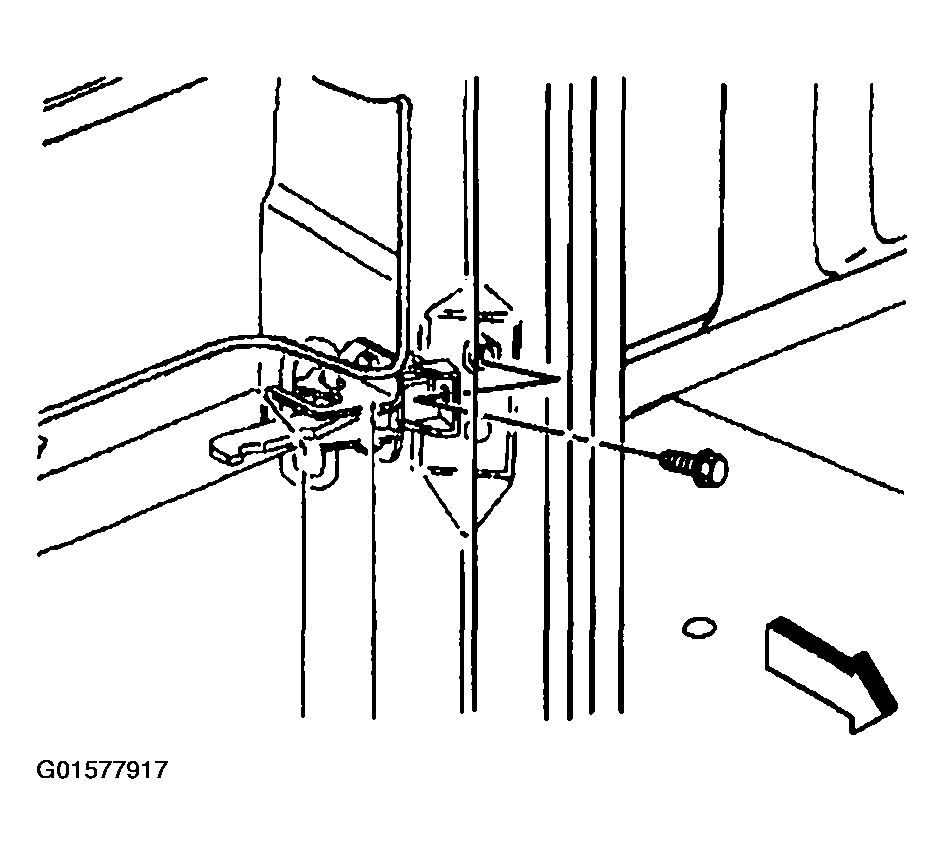

    Fig 1: Removing Door Check Link
    G01577917Courtesy of GENERAL MOTORS CORP.
