Door Adjustment

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Perform this procedure only when bolt-on replacement hinges are installed.

Remove the door striker. Refer to Striker Replacement - Door .
Loosen the door hinge to the body side pillar bolts.
Adjust the door at the door hinges in the following directions:
- Upward or downward
- Forward or rearward
- Inward or outward
Adjust the gap between the rocker panel and the door to 4.0-8.0 mm (0.16-0.31 in).

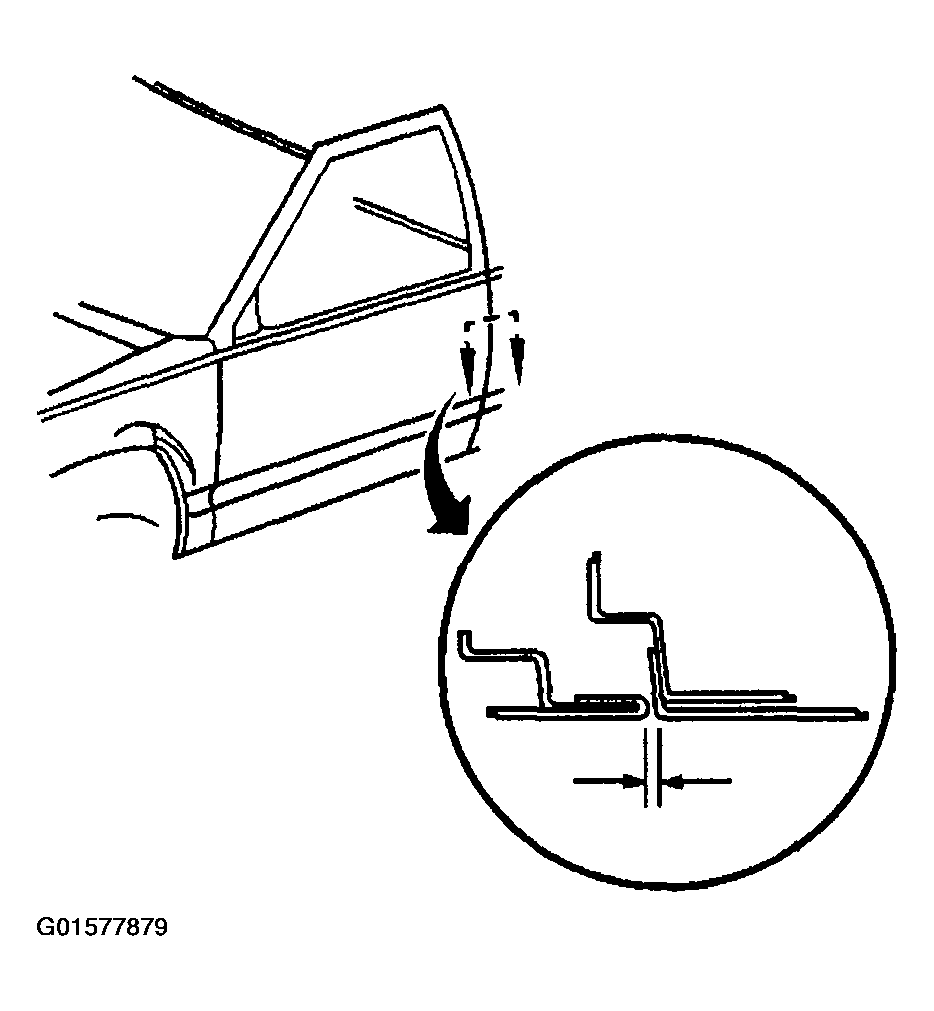

Fig 1: Adjusting Gap Between Rocker Panel & Door
Courtesy of GENERAL MOTORS CORP.
Adjust the gap between the door and the roof panel to 3.0-9.0 mm (0.12-0.35 in).

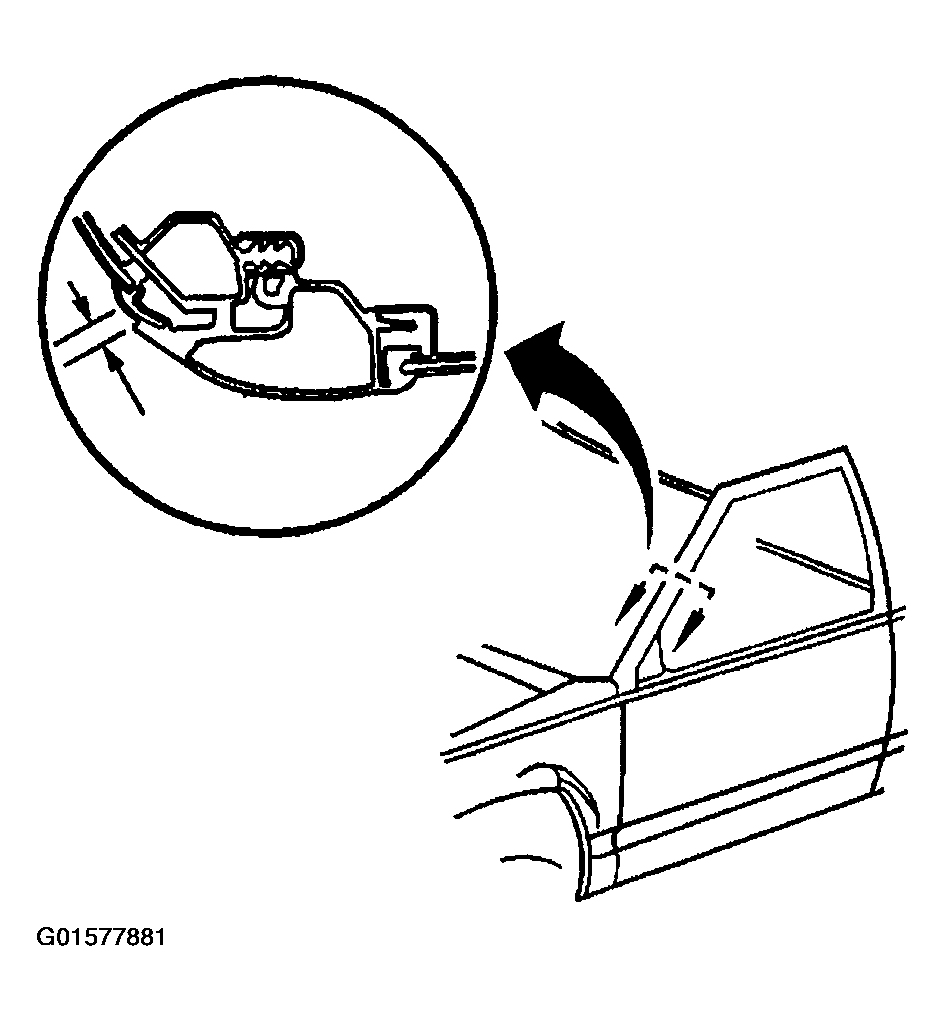

Fig 2: Adjusting Gap Between Door & Roof Panel
Courtesy of GENERAL MOTORS CORP.
Adjust the gap between the rear of the door and the rear pillar to 3.0-5.0 mm (0.12-0.20 in).

Fig 3: Adjusting Gap Between Rear Of Door & Rear Pillar
Courtesy of GENERAL MOTORS CORP.
Adjust the gap between the door and the fender to 4.0-6.0 mm (0.16-0.24 in).

Fig 4: Adjusting Gap Between Door & Fender
Courtesy of GENERAL MOTORS CORP.
Adjust the door surfaces so that the door surfaces are flush with the other panels to 1.0 mm (0.04 in).
NOTE: Refer to FASTENER NOTICE .
Tighten the hinge bolts.
Tighten

Tighten the hinge bolts to 35 N.m (26 lb ft).
Install the door striker. Refer to Striker Replacement - Door .
Adjust the door striker, if necessary, in order to properly engage the door latch.
1. Loosen the door striker bolts.
2. Adjust the door striker.
  Tighten

  Tighten the door striker bolts to 24 N.m (18 lb ft).
Fig 5: Adjusting Door Striker
Courtesy of GENERAL MOTORS CORP.
