Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the push-in retainers from the wheelhouse panel.
  2. Remove the top clips (2) retaining the harness to the top of the wheelhouse panel.
  3. Install the retainers for Avalanche only.
  4. Remove the wheelhouse panel from the wheelhouse.

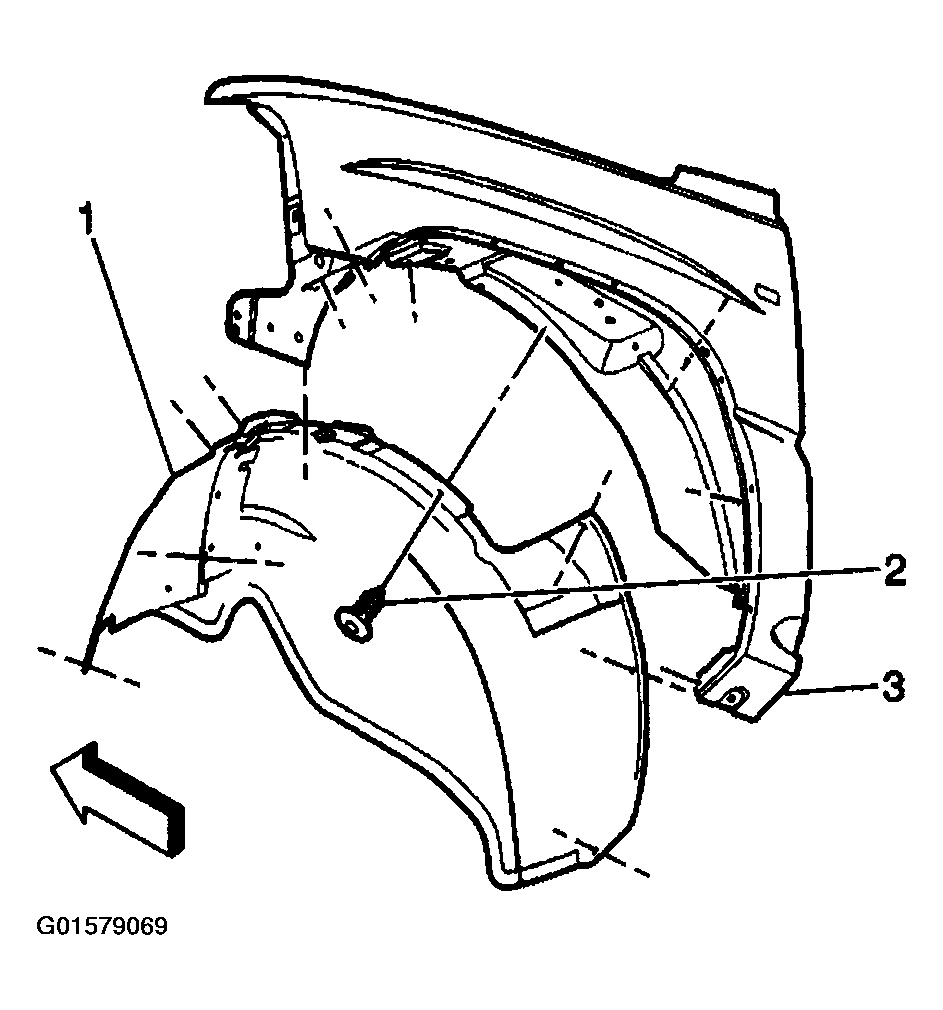

    Fig 1: Removing Wheelhouse Panel
    G01579069Courtesy of GENERAL MOTORS CORP.
