Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Align the slot in the rear hood seal with the cowl pinch-weld flange and press into place.

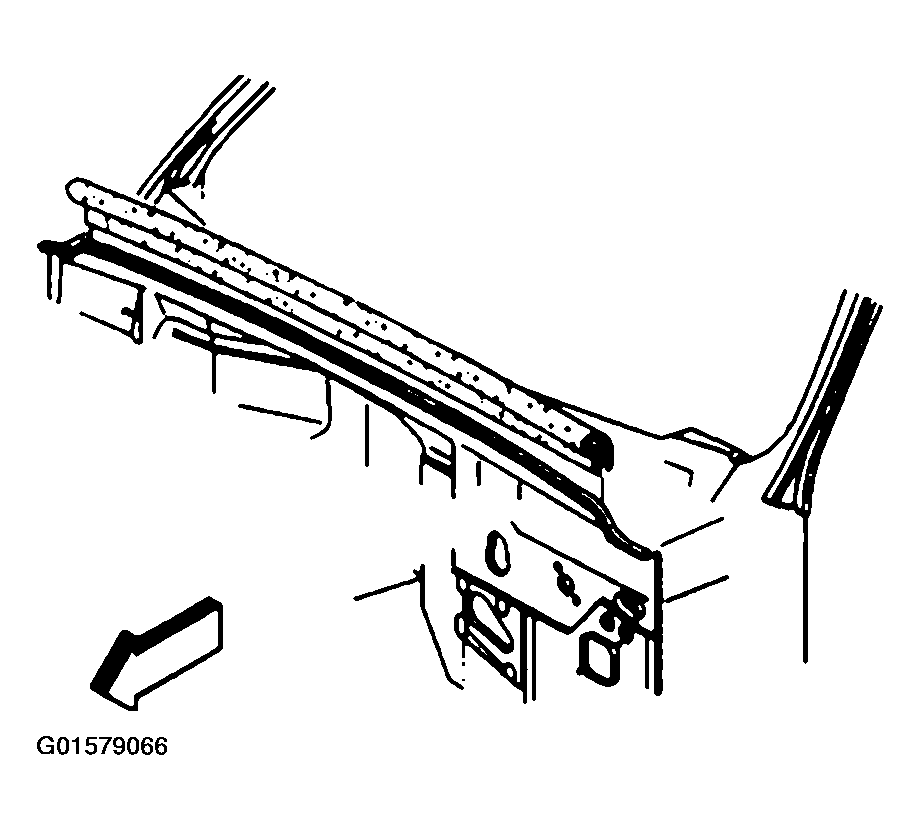

Fig 1: Hood Rear Seal
G01579066Courtesy of GENERAL MOTORS CORP.
