Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the air cleaner outlet duct. Refer to AIR CLEANER RESONATOR OUTLET DUCT .
  3. Remove the air cleaner assembly. Refer to AIR CLEANER ASSEMBLY .
  4. Remove the retainers (1) from the air cleaner mounting bracket (2).
  5. Remove the air cleaner mounting bracket (2) from the vehicle.
  6. Remove the retainers (3) from the air cleaner support lower bracket (4).
  7. Remove the lower air cleaner support bracket from the vehicle.

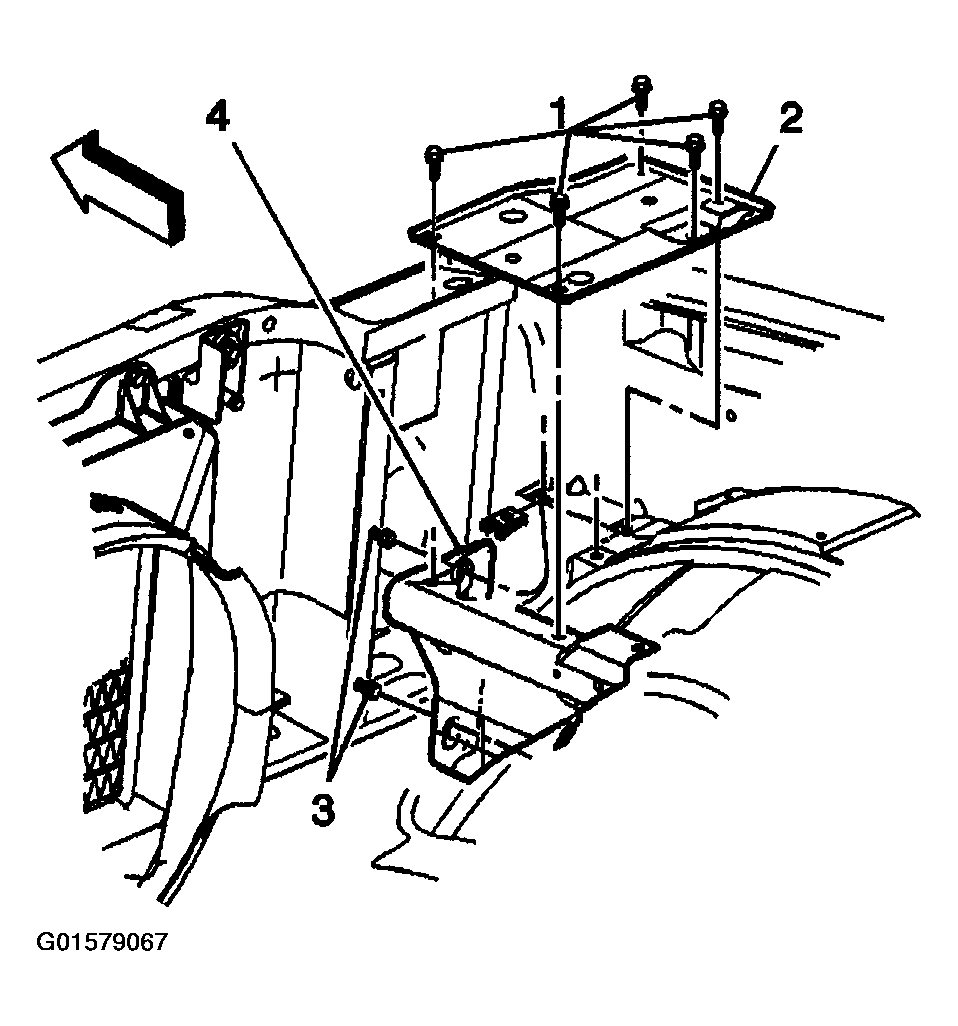

    Fig 1: Removing Air Cleaner Mounting Bracket
    G01579067Courtesy of GENERAL MOTORS CORP.
