Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower support bracket (4) to the vehicle.

    Refer to FASTENER NOTICE .

  2. Install the lower support bracket retainers (3).

    Tighten

    Tighten the retainer to 9 N.m (80 lb in).

  3. Install the air cleaner mounting bracket (2) to the vehicle.
  4. Install the air cleaner mounting bracket retainers (1).

    Tighten

    Tighten the retainers to 9 N.m (80 lb in).

  5. Install the air cleaner assembly. Refer to AIR CLEANER ASSEMBLY .
  6. Install the air cleaner outlet duct. Refer to AIR CLEANER RESONATOR OUTLET DUCT .
  7. Close the hood.

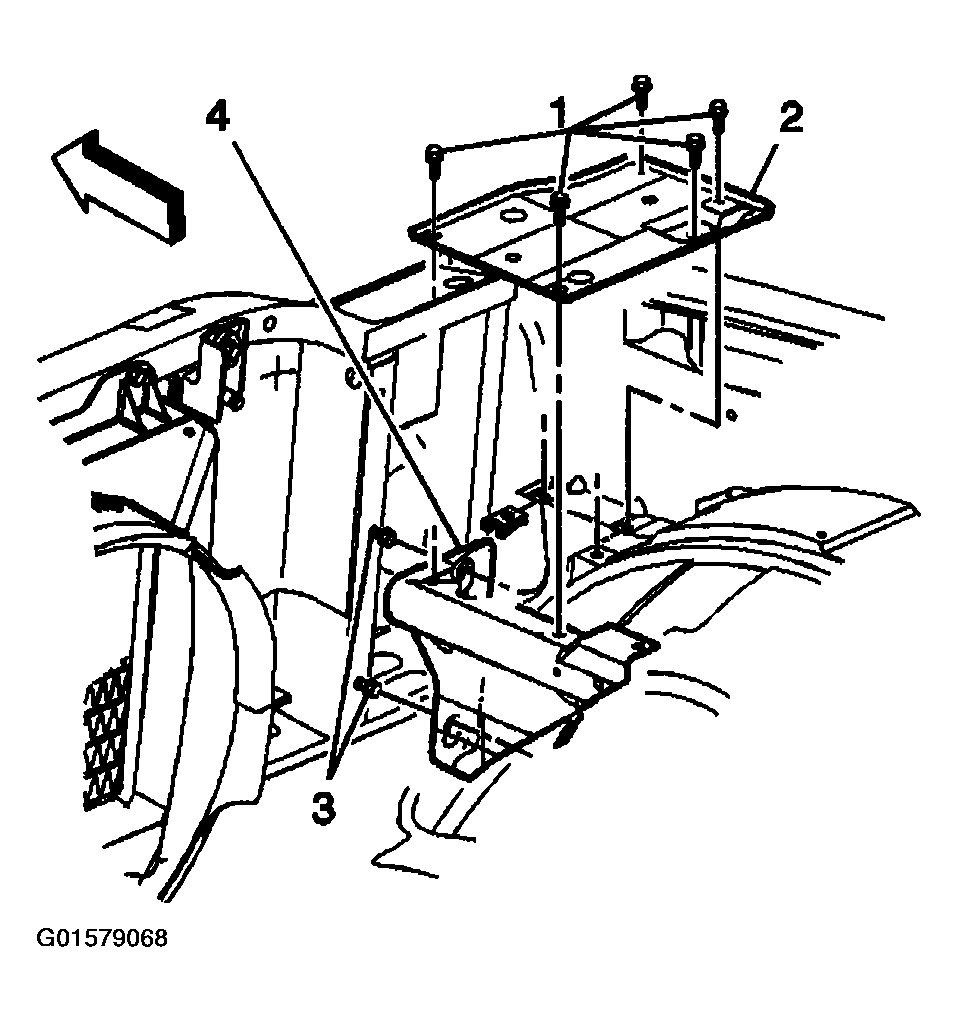

    Fig 1: Installing Air Cleaner Mounting Bracket
    G01579068Courtesy of GENERAL MOTORS CORP.
