Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Raise the hood (1).
Support the hood at the front and the rear.

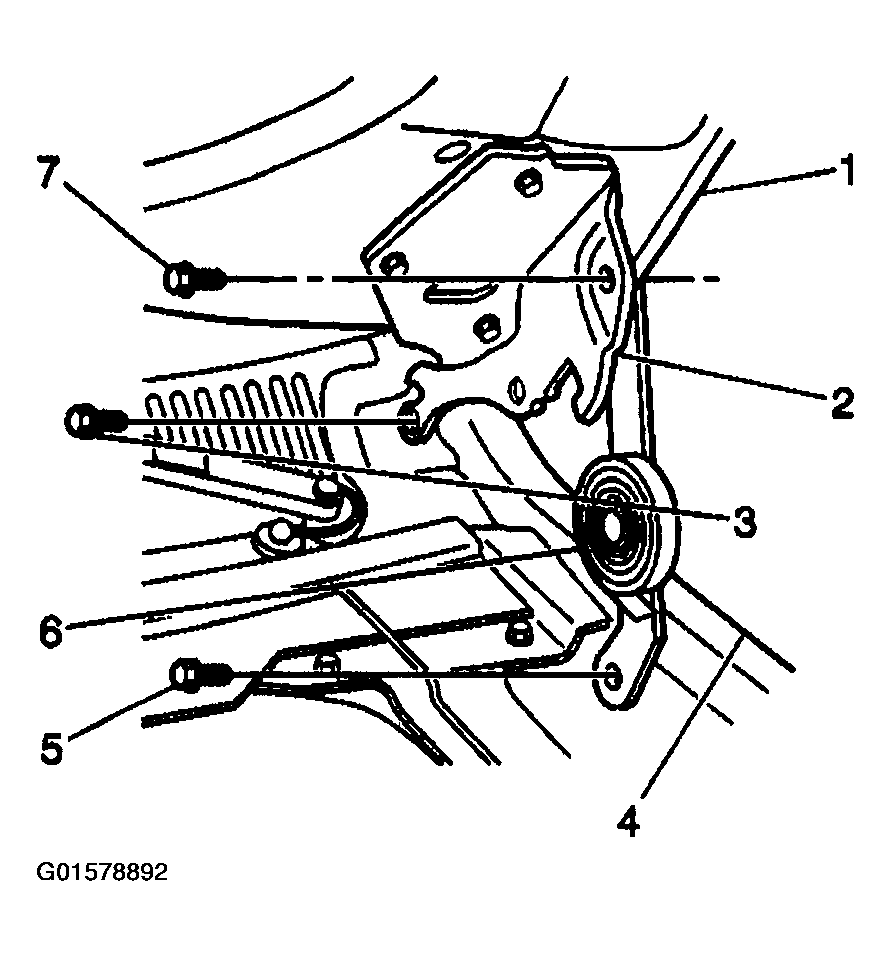

Fig 1: Hood Hinge, Hood Link Assembly & Components
Courtesy of GENERAL MOTORS CORP.
Remove the hood ground strap and nut.
Release the harness and the lamp from the hood.

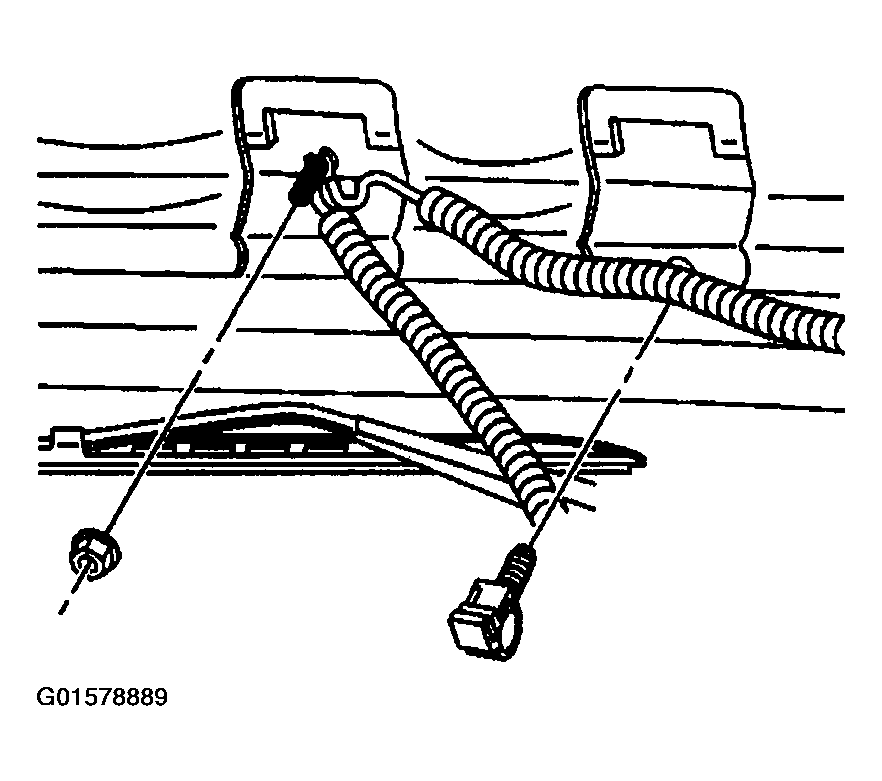

Fig 2: Removing Hood Ground Strap & Nut
Courtesy of GENERAL MOTORS CORP.
Remove the bolt holding the hood hinge to the hook link assembly (7).
Lower and support the hood.

Fig 3: Hood Hinge, Hood Link Assembly & Components
Courtesy of GENERAL MOTORS CORP.
Remove the outboard sections of the cowl vent grille panel.

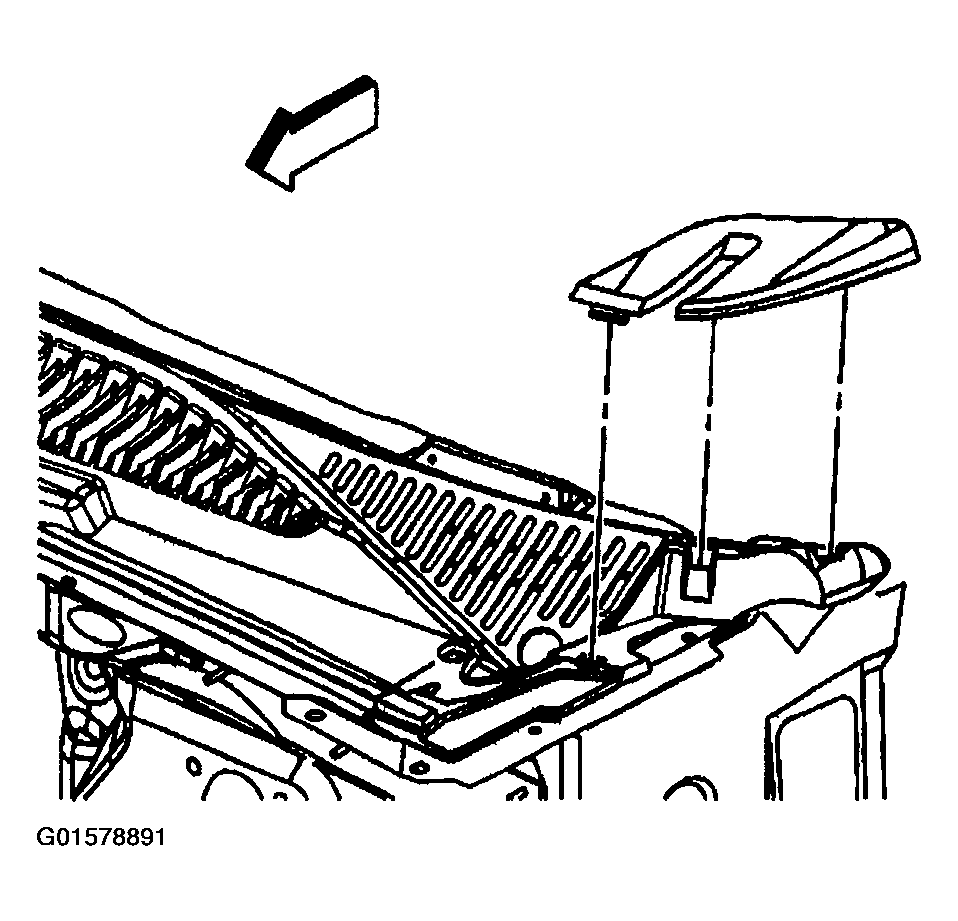

Fig 4: Removing Outboard Sections Of Cowl Vent Grille Panel
Courtesy of GENERAL MOTORS CORP.
With an assistant, remove the pivot bolt (3).
With an assistant, remove the hood from the vehicle.
Remove the hood hinge from the hood. Refer to Hood Hinge Replacement .

Fig 5: Hood Hinge, Hood Link Assembly & Components
Courtesy of GENERAL MOTORS CORP.
