Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the hood.
  2. Remove the upper radiator support baffle. Refer to RADIATOR AIR BAFFLE AND DEFLECTOR REPLACEMENT-UPPER .
  3. Remove the bolts (2) from the hood release latch (1).

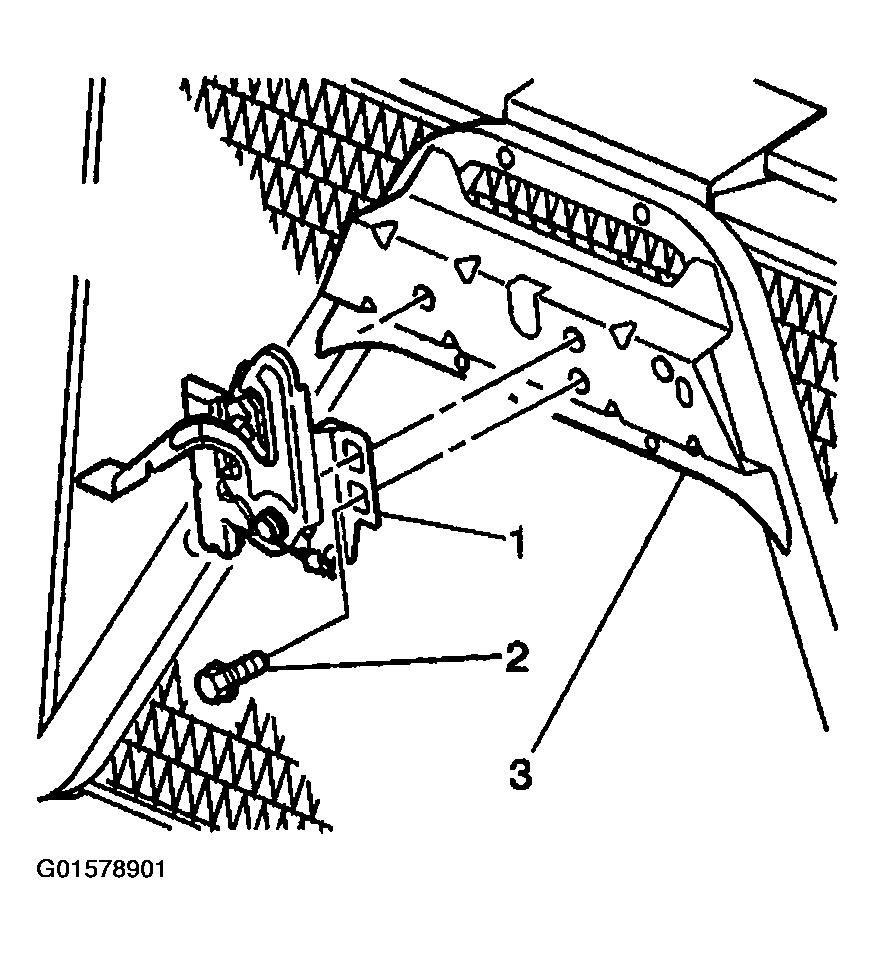

    Fig 1: Removing Bolts Hood Latch
    G01578901Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the hood release cable end from the latch.
  5. Remove the hood release latch from the vehicle.
    Fig 2: Disconnecting Hood Release Cable End From Latch
    G01578902Courtesy of GENERAL MOTORS CORP.
