Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: If the cable is broken, release the hood by pressing the latch tab on the left side of the lock assembly. Use a rod to press the latch tab.
  1. Lift the hood.
  2. Remove the left hinge pillar trim panel. Refer to TRIM PANEL REPLACEMENT-HINGE PILLAR .
  3. Remove the cable handle underneath the instrument panel (IP).
  4. Remove the cable end from the handle.
    1. Use needle nose pliers in order to squeeze the tabs in order to remove the cable end from the hood latch assembly.
    2. Lift the cable from the lock.

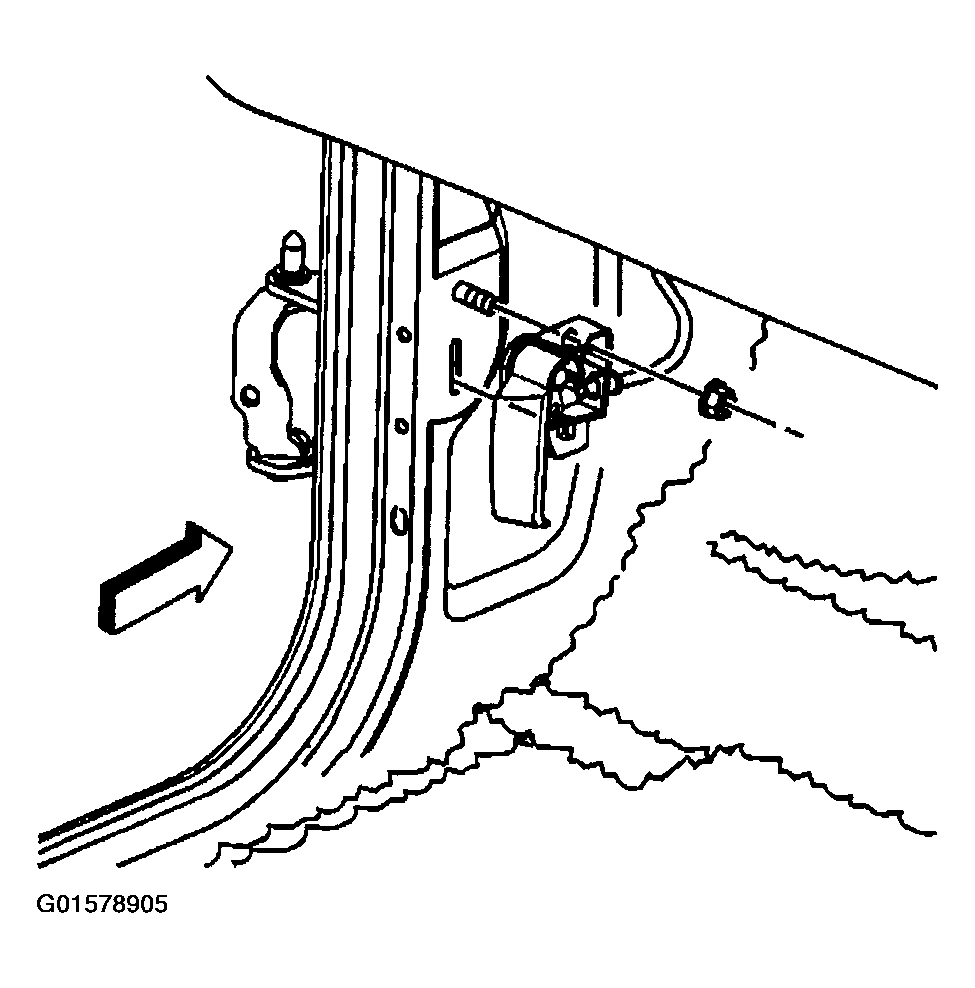

    Fig 1: Removing Hood Latch Cable
    G01578905Courtesy of GENERAL MOTORS CORP.
  5. Pull the cable in toward the cable handle through the hole in the cowl.

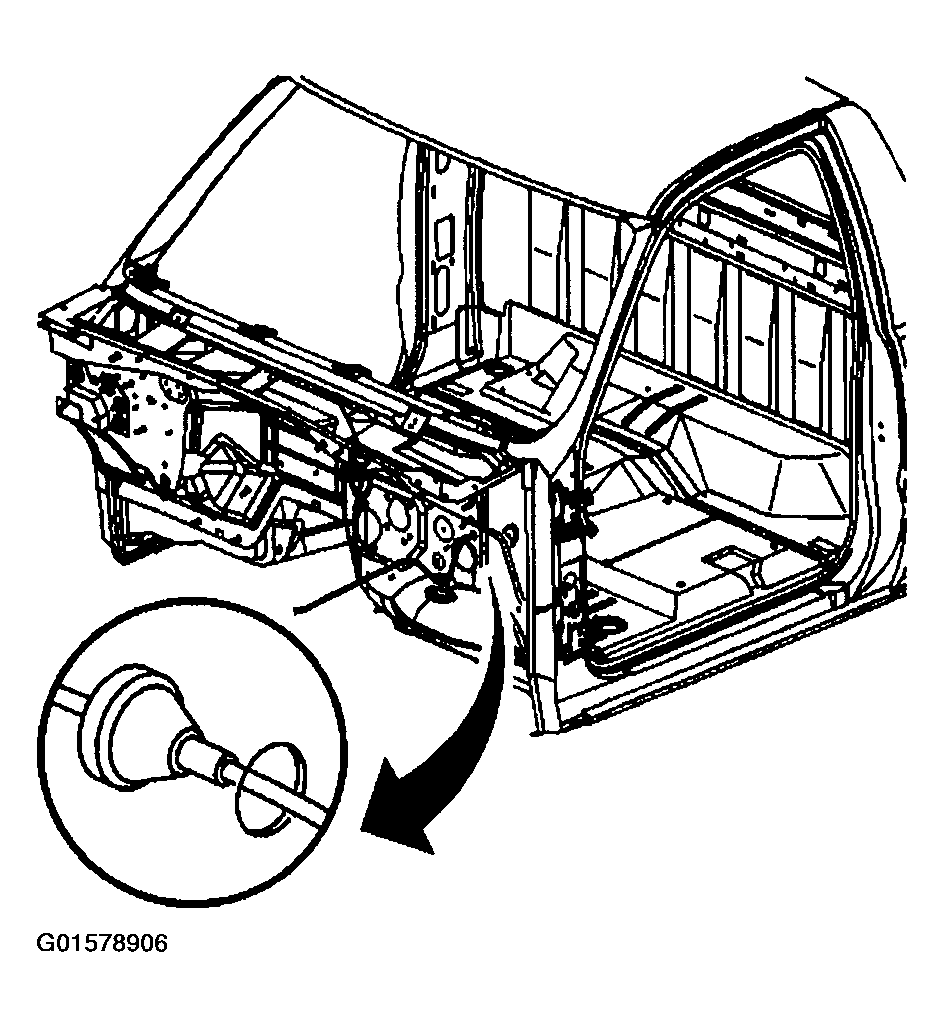

    Fig 2: Pulling Cable In Toward Cable Handle
    G01578906Courtesy of GENERAL MOTORS CORP.
  6. Detach the cable from the retainer clips.

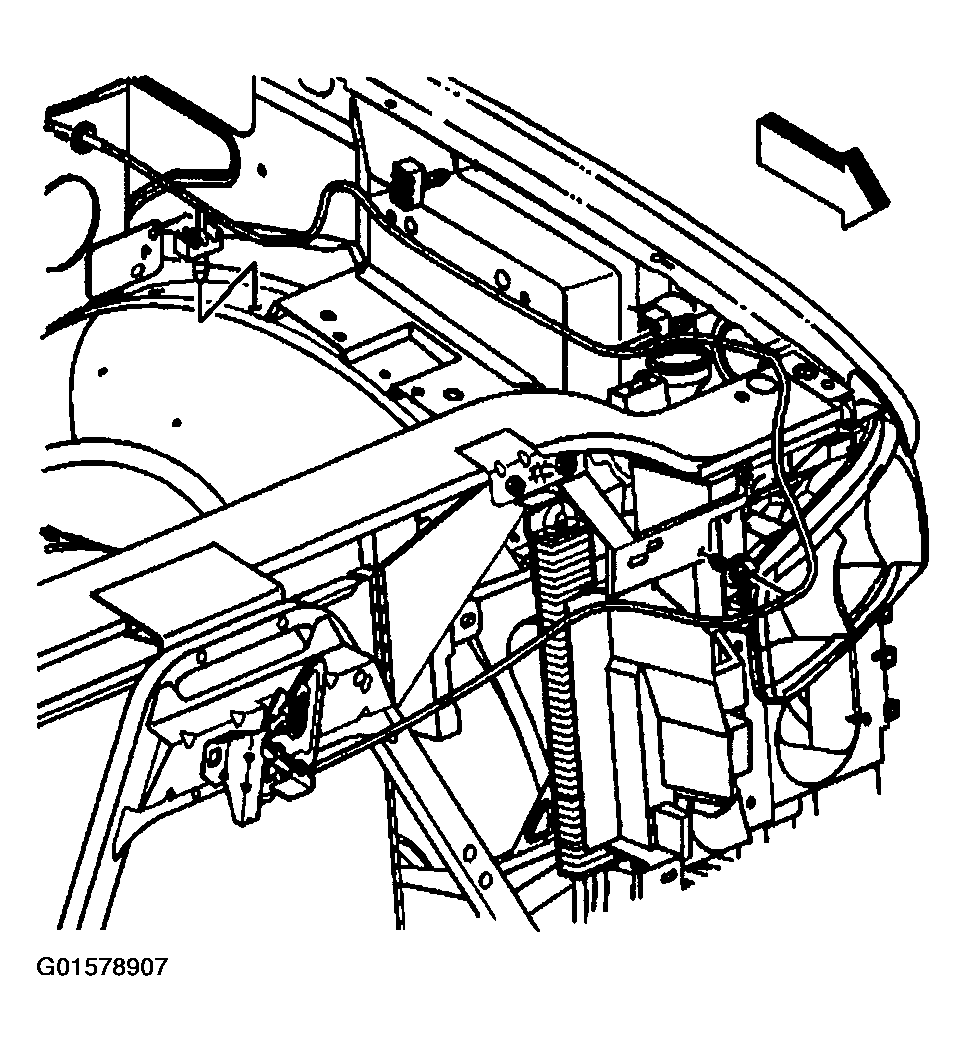

    Fig 3: Detaching Cable From Retainer Clips
    G01578907Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the cable end from the hood latch assembly.
    1. Use needle nose pliers to squeeze the tabs in order to remove the cable end from the handle.
    2. Lift the cable from the lock.
    Fig 4: Disconnecting Cable End From Hood Latch Assembly
    G01578908Courtesy of GENERAL MOTORS CORP.
