Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front hood bumper by turning the front hood bumper (1) out counterclockwise.
  2. Remove the side hood bumper by sliding the side hood bumper (2) rearward and pulling up.

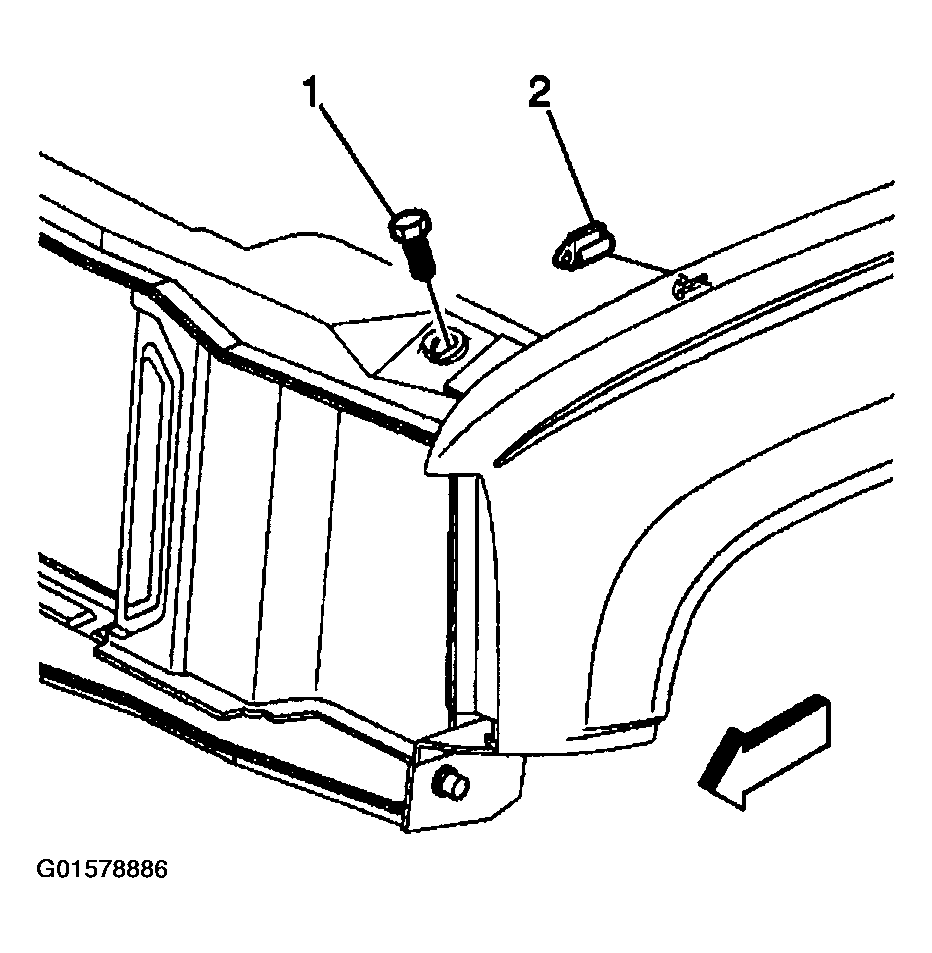

    Fig 1: Removing Front Hood Bumper
    G01578886Courtesy of GENERAL MOTORS CORP.
