Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the side hood bumper by pushing down and sliding the side hood bumper (2) forward.
  2. Install the front hood bumper (1) by turning the front hood bumper in clockwise until the hood closes flush with the fender.

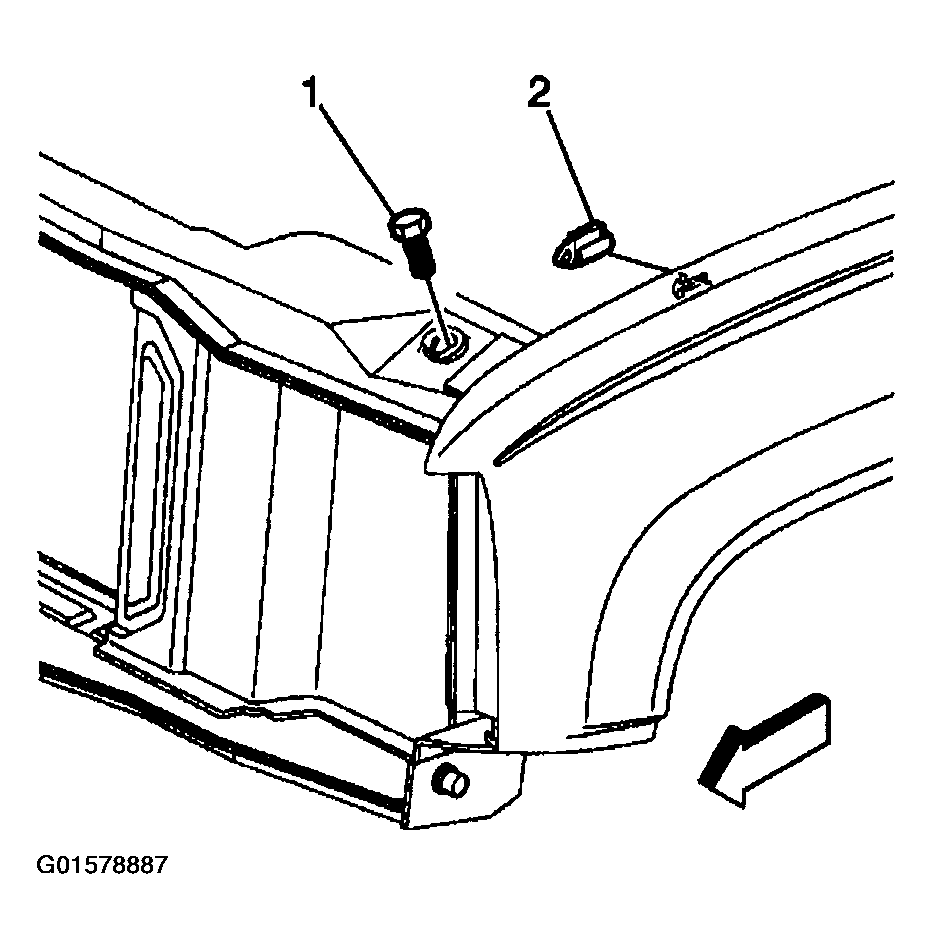

    Fig 1: Installing Front Hood Bumper
    G01578887Courtesy of GENERAL MOTORS CORP.
