Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper arms. Refer to WIPER ARM REPLACEMENT .
  2. Pull up in order to release the outboard air inlet grille panel clips.

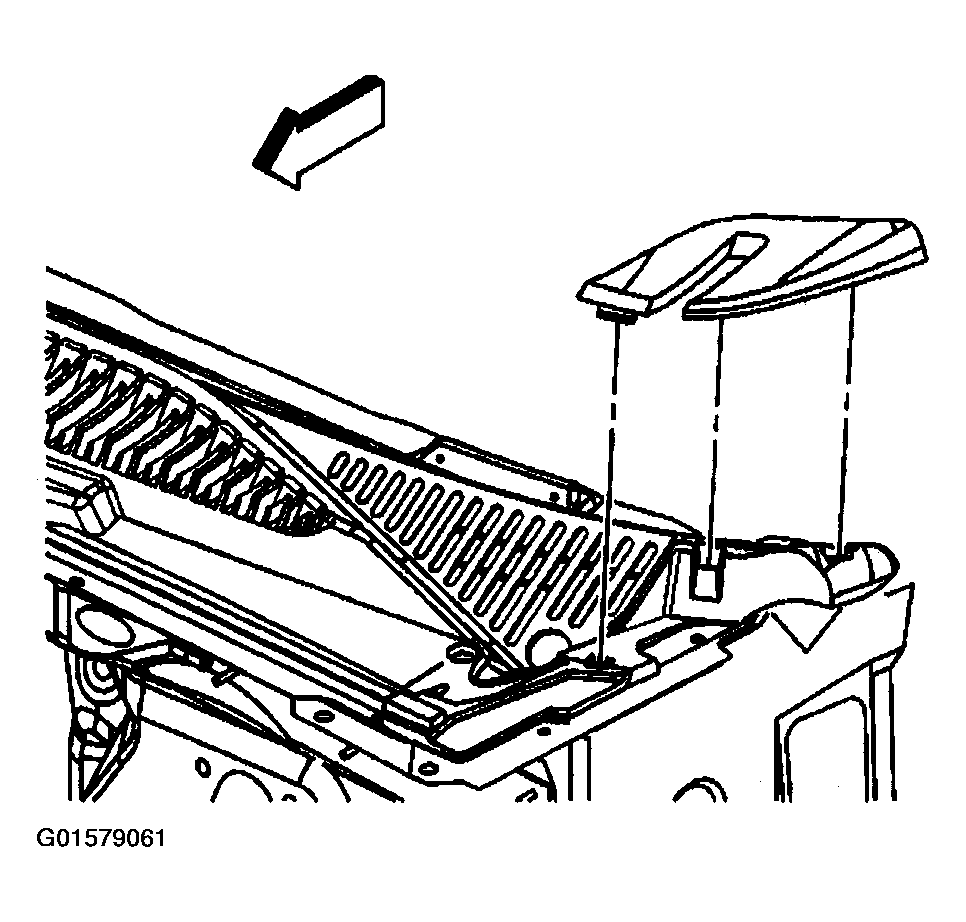

    Fig 1: Outboard Air Inlet Grille Panel Clips
    G01579061Courtesy of GENERAL MOTORS CORP.
  3. Remove the attaching clips running along the edges of the center air inlet grille panel.
  4. Remove the sheet metal screws on each end of the air inlet grille panel.
  5. Disconnect the windshield washer hose from the nozzle underneath the center air inlet grille panel.
  6. Remove the air inlet grille panel.

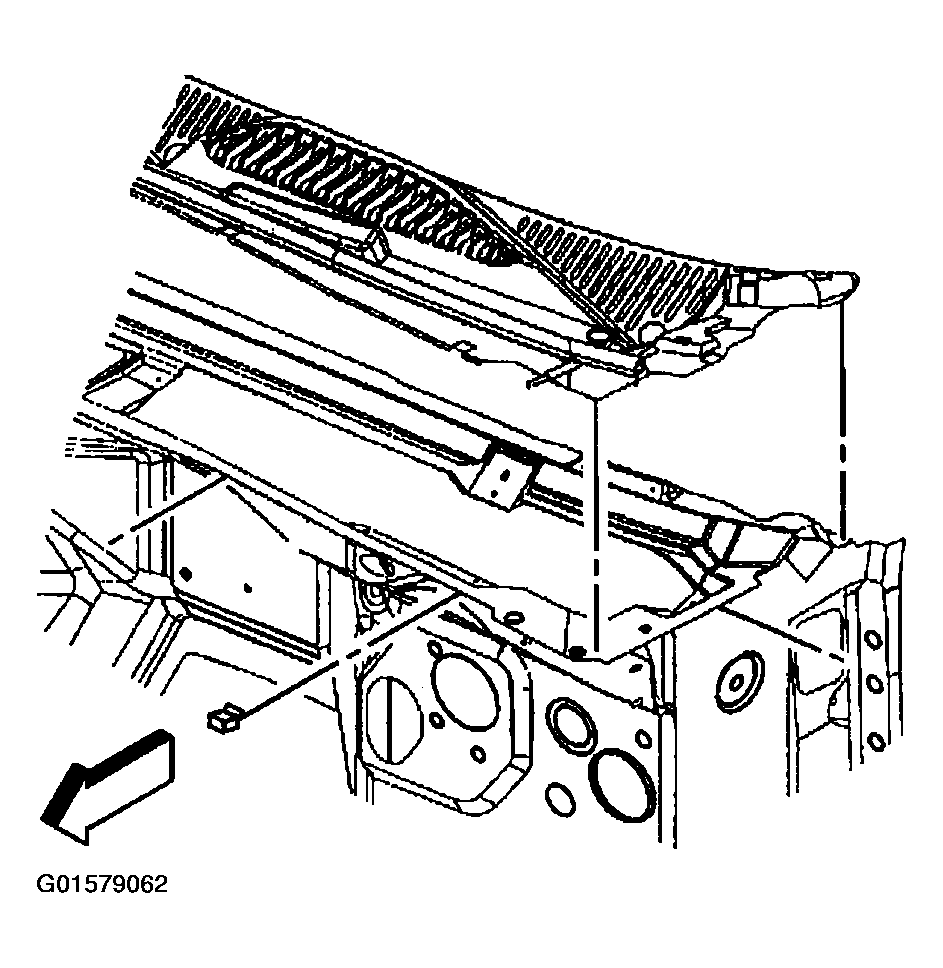

    Fig 2: Removing Air Inlet Grille Panel & Attaching Clips
    G01579062Courtesy of GENERAL MOTORS CORP.
