Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the windshield washer hose to the nozzle under the center air inlet grille panel.
  2. Position the air inlet grille panel to the vehicle and attach the clips to the edges of the center air inlet grille panel.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the sheet metal screws on each end to the air inlet grille panel.

    Tighten

    Tighten the sheet metal screws to 2 N.m (18 lb in).

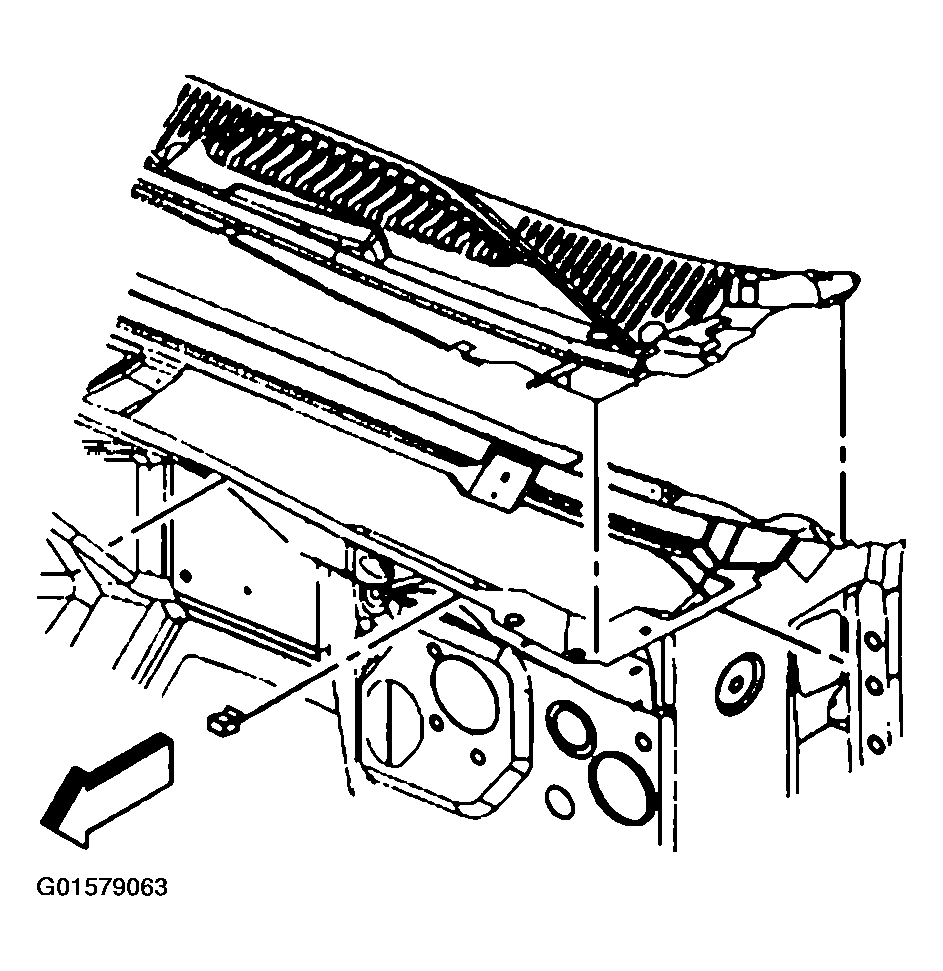

    Fig 1: Connecting Windshield Washer Hose & Attaching Clips
    G01579063Courtesy of GENERAL MOTORS CORP.
  4. Align the outboard air inlet grille panel clips and press down in order to install.
  5. Install the wiper arms. Refer to WIPER ARM REPLACEMENT .

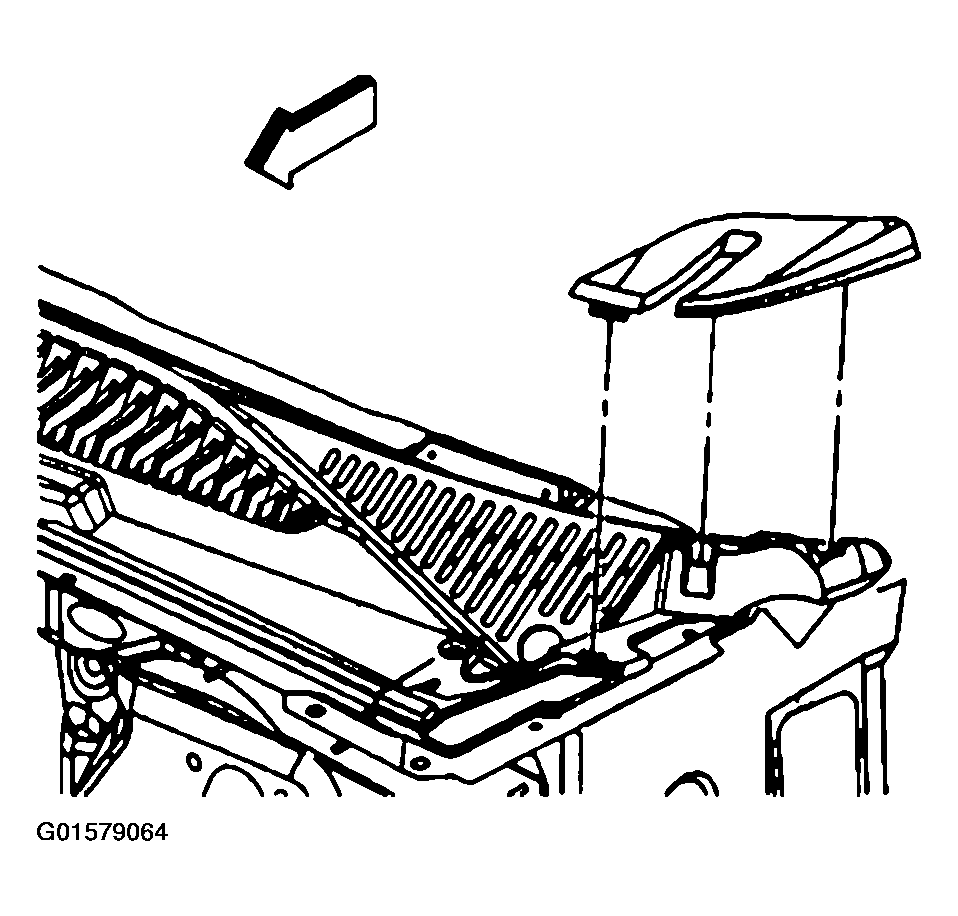

    Fig 2: Aligning Outboard Air Inlet Grille Panel Clips
    G01579064Courtesy of GENERAL MOTORS CORP.
