Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front grille. Refer to GRILLE REPLACEMENT (OLD STYLE) or GRILLE REPLACEMENT (NEW STYLE GMC) or GRILLE REPLACEMENT (NEW STYLE CHEVROLET) .
  2. Disconnect the electrical connector from the fog lamps, if equipped.

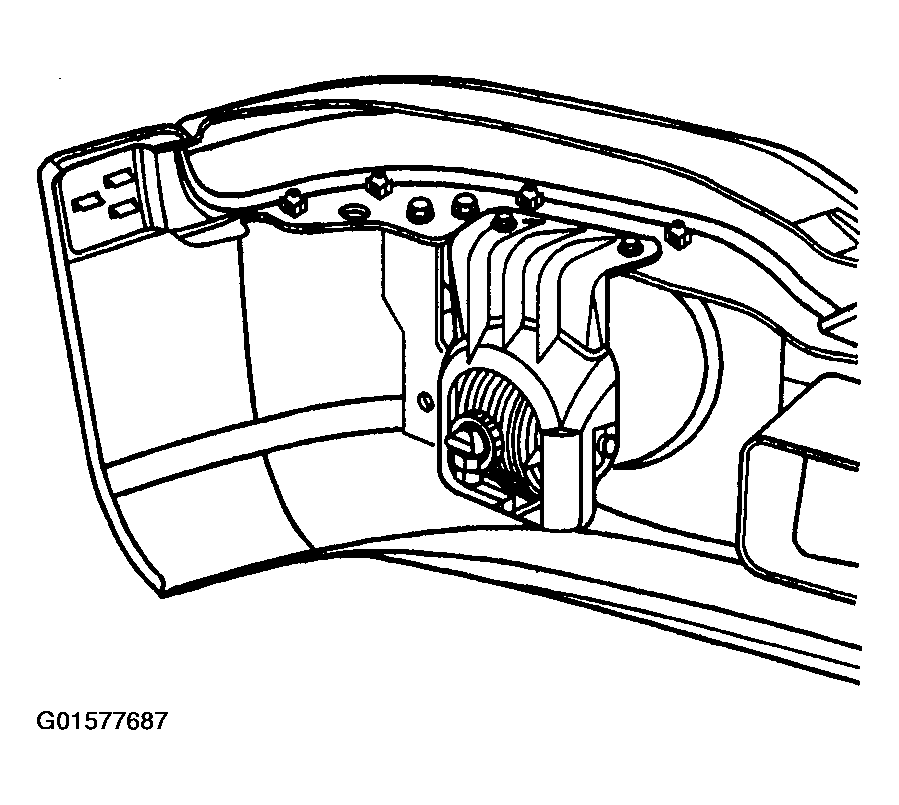

    Fig 1: Disconnect Electrical Connector From Fog Lamps
    G01577687Courtesy of GENERAL MOTORS CORP.
  3. Remove the retaining bolts (1, 2) from the front bumper.
  4. Remove the brace bolt (3) from the front bumper.
  5. Remove the front bumper assembly from the vehicle.
  6. Remove the fog lamps, if equipped. Refer to FOG LAMP REPLACEMENT-FRONT (OLD STYLE) or FOG LAMP REPLACEMENT-FRONT (NEW STYLE GMC) or FOG LAMP REPLACEMENT-FRONT (NEW STYLE CHEVROLET) .

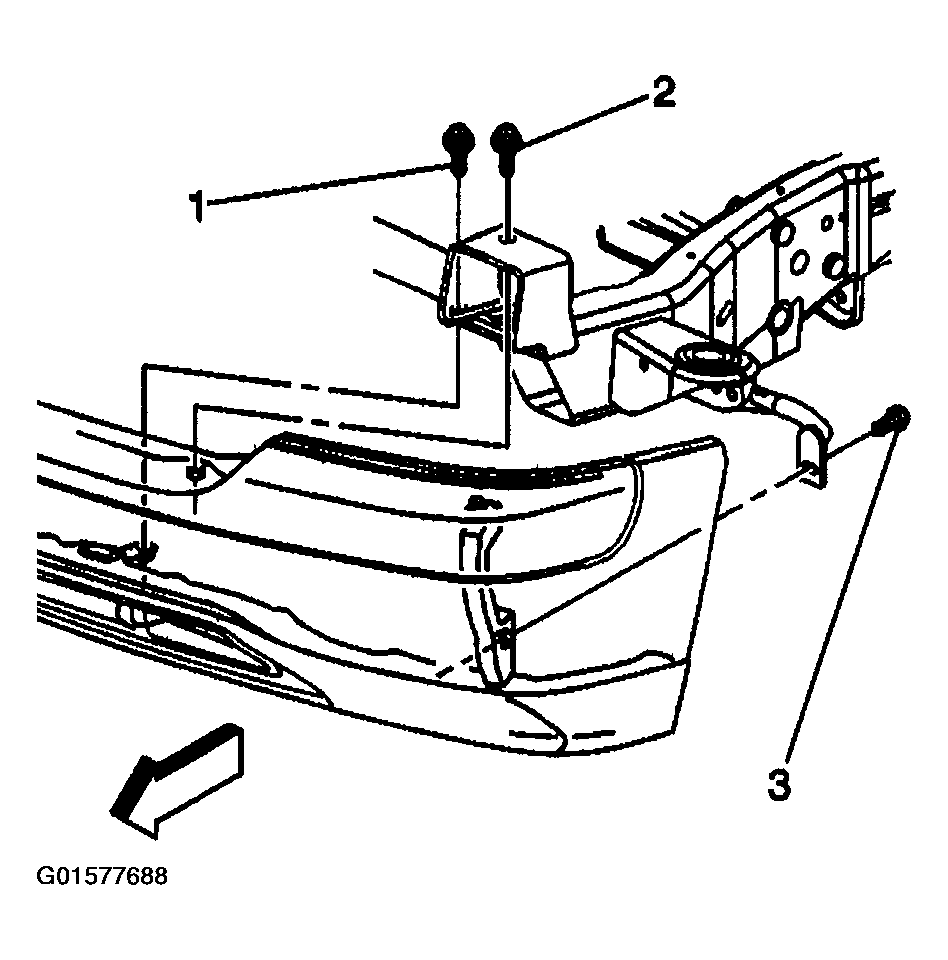

    Fig 2: Removing Retaining Bolts
    G01577688Courtesy of GENERAL MOTORS CORP.
