Bracket Replacement-Front Bumper (1500)

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove all related panels and components.
  2. Remove damaged bumper bracket.
    IMPORTANT: Do not remove any material from end of frame rail.
  3. Position the service template on the end of the frame rail. Use 3M's Repositionable Adhesive or equivalent.
  4. Drill three 13 mm (1/2 in) holes at locations indicated on template.
    IMPORTANT: Prior to refinishing, refer to the Publication GM 4901M-D-2000 "GM Approved Refinish Materials" for recommended products. Do not combine paint systems. Refer to paint manufacturer's recommendations.
  5. Apply approved anti-corrosion primer to bare metal surfaces.
  6. Position replacement bumper bracket.
    NOTE: Refer to FASTENER NOTICE .
  7. Install the bolts.

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

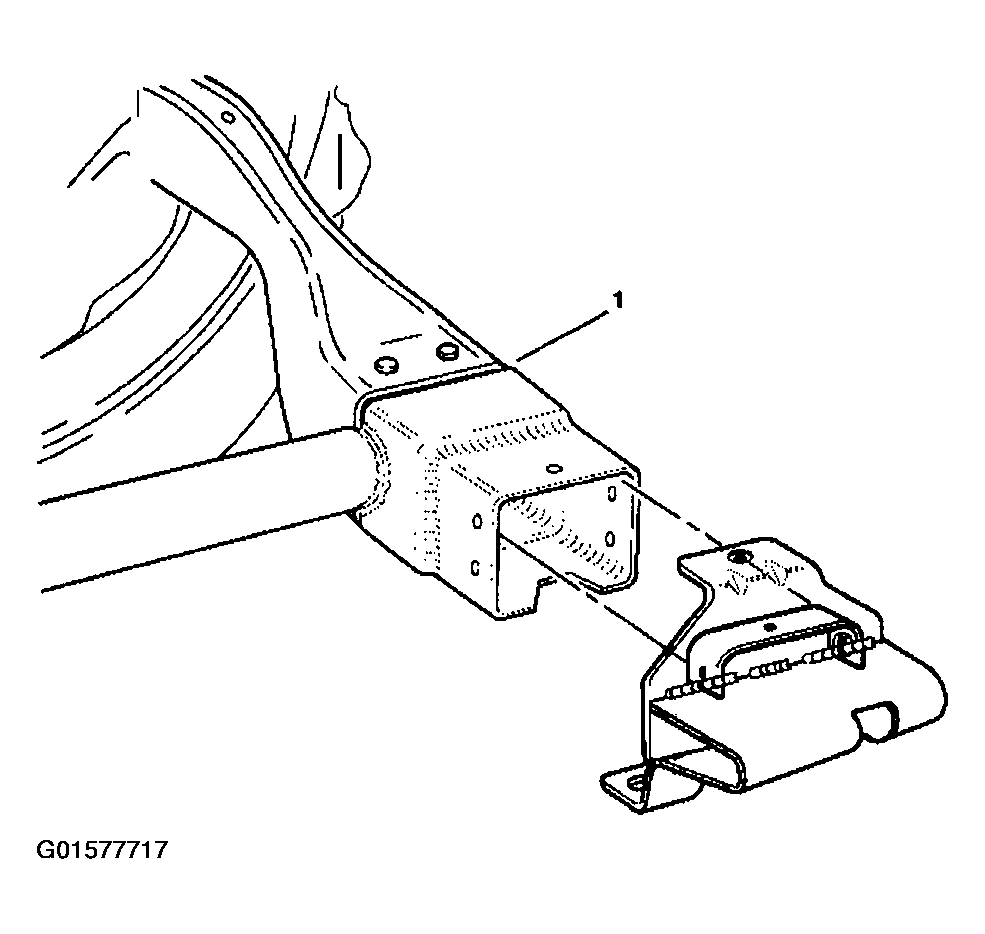

    Fig 1: Front Bumper Bracket (1500)
    G01577717Courtesy of GENERAL MOTORS CORP.
