Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the brace bolt (2) from the front bumper.
  2. Remove the brace bolt (3) from the outboard mounting brace plate.
  3. Remove the brace (1) from the vehicle.

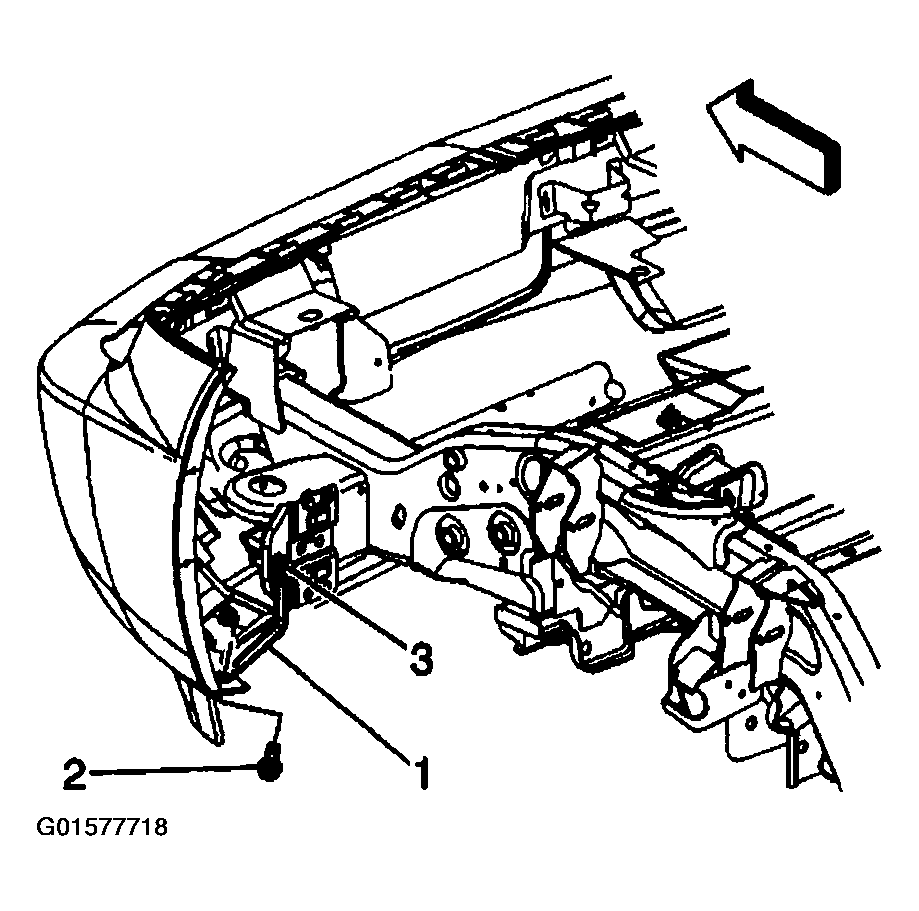

    Fig 1: Removing Front Bumper Brace
    G01577718Courtesy of GENERAL MOTORS CORP.
