Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the air deflector onto the front bumper assembly.
  2. Fasten the connection ends of the push-pins onto the front bumper deflector.
  3. Install the fog lamps, if equipped. Refer to FOG LAMP REPLACEMENT-FRONT (OLD STYLE) or FOG LAMP REPLACEMENT-FRONT (NEW STYLE GMC) or FOG LAMP REPLACEMENT-FRONT (NEW STYLE CHEVROLET) .
  4. Connect the fog lamp electrical connectors, if equipped.
  5. Lower the vehicle.

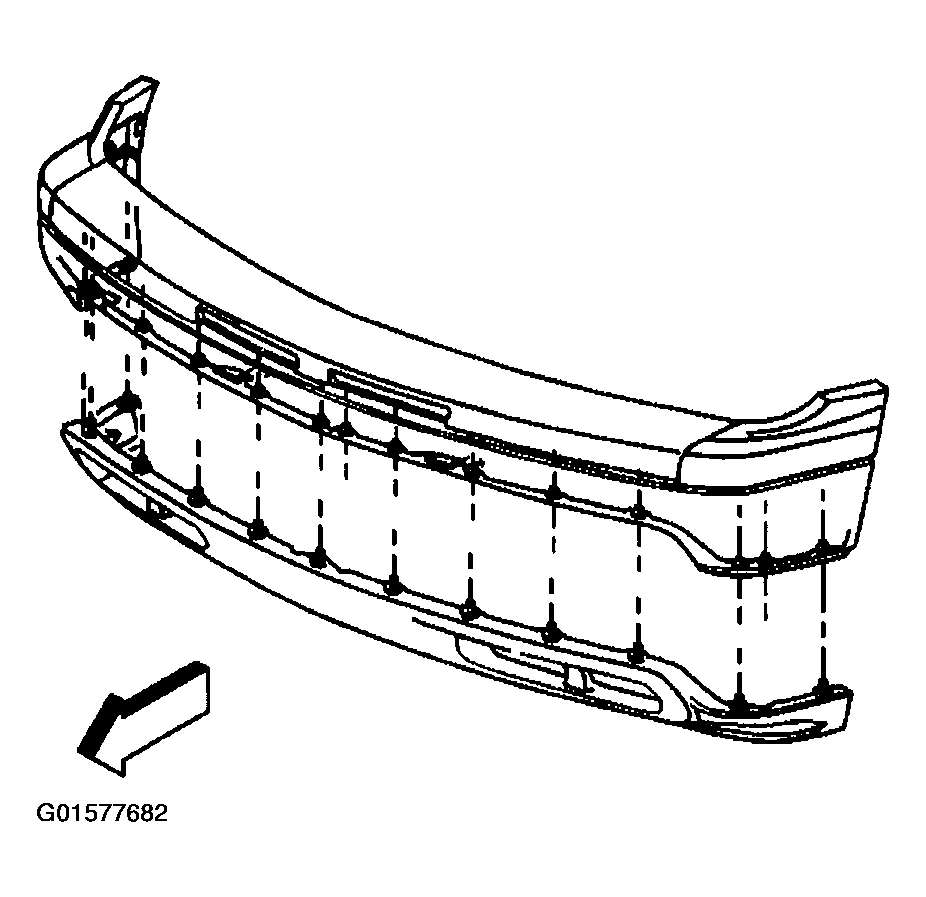

    Fig 1: Front Bumper Fascia Air Deflector
    G01577682Courtesy of GENERAL MOTORS CORP.
