Inside Rearview Mirror Schematics

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

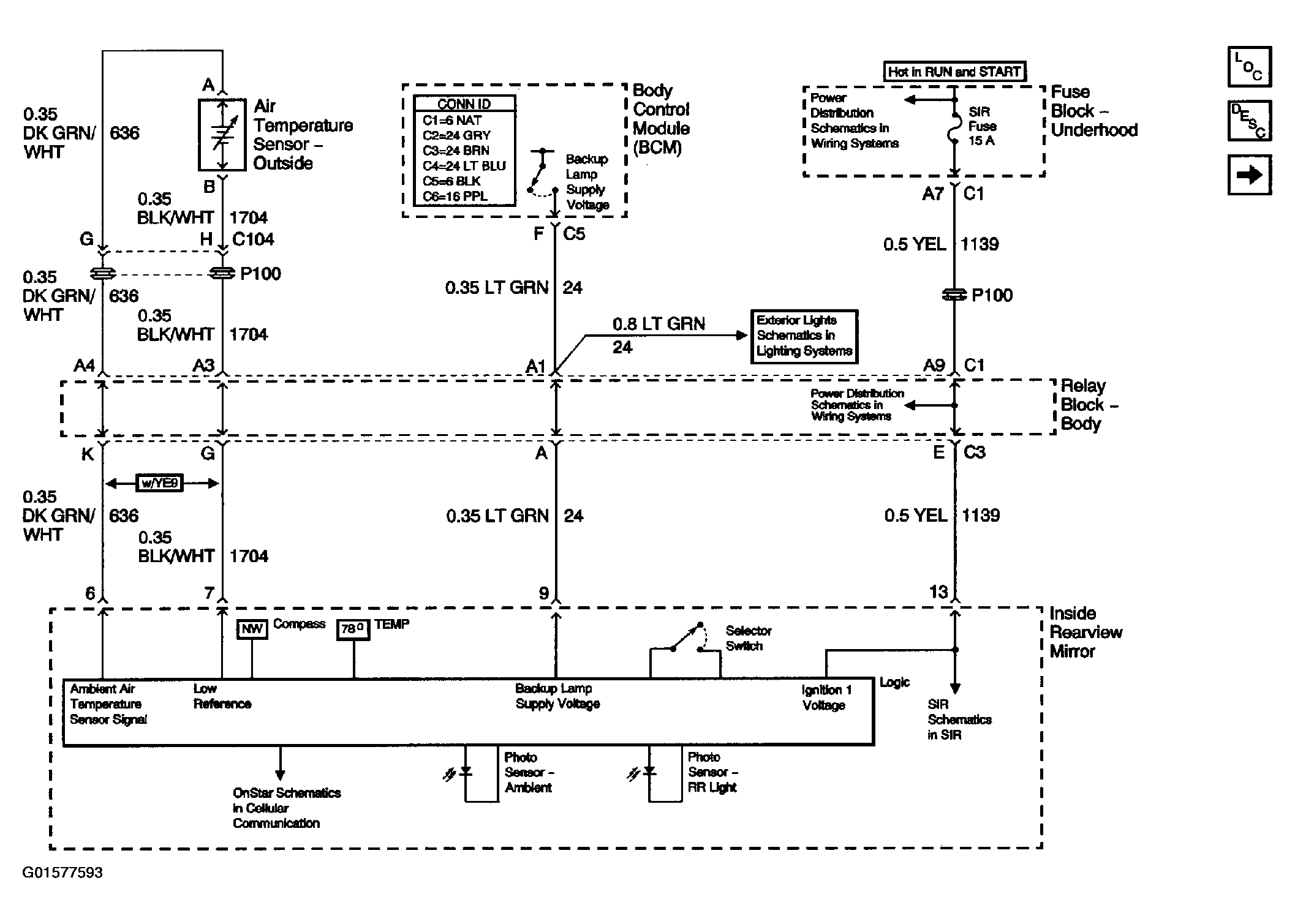

Fig 1: Inside Rearview Mirror Schematics (Power, Outside Air Temp & Light Sensors)
G01577593Courtesy of GENERAL MOTORS CORP.

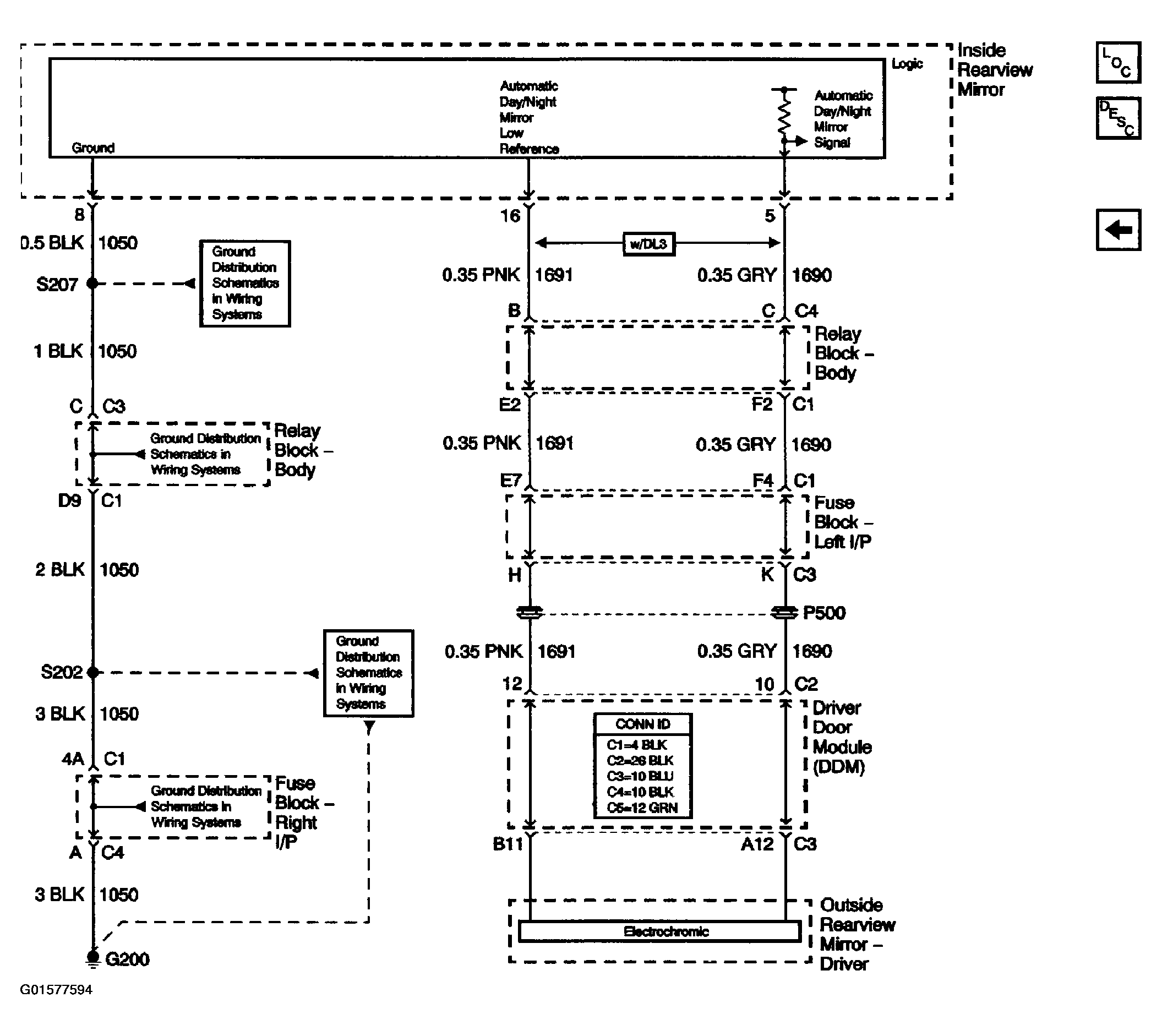

Fig 2: Inside Rearview Mirror Schematics (Ground & Electrochromic)
G01577594Courtesy of GENERAL MOTORS CORP.
