Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull back the front door sealing weatherstrip (1) to expose the windshield reveal molding screws.

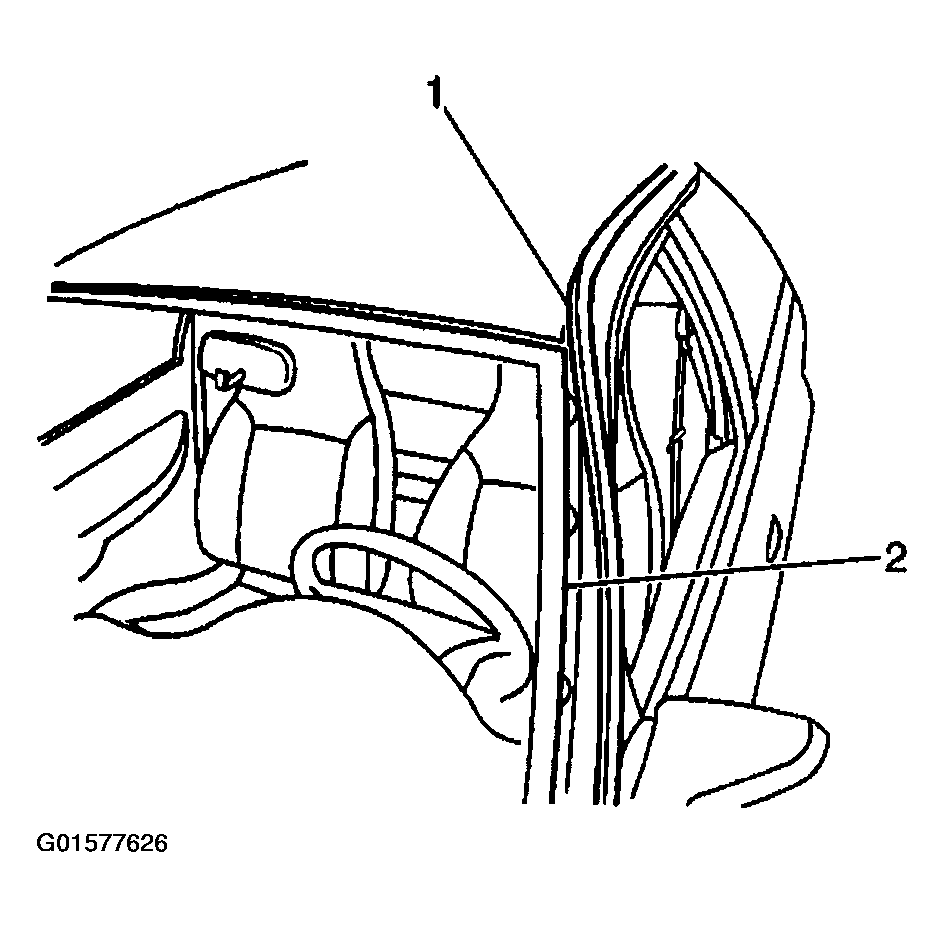

    Fig 1: Front Door Sealing Weatherstrip
    G01577626Courtesy of GENERAL MOTORS CORP.
  2. Remove the screws from the windshield reveal molding.
  3. Remove the windshield reveal molding from the windshield pillar.

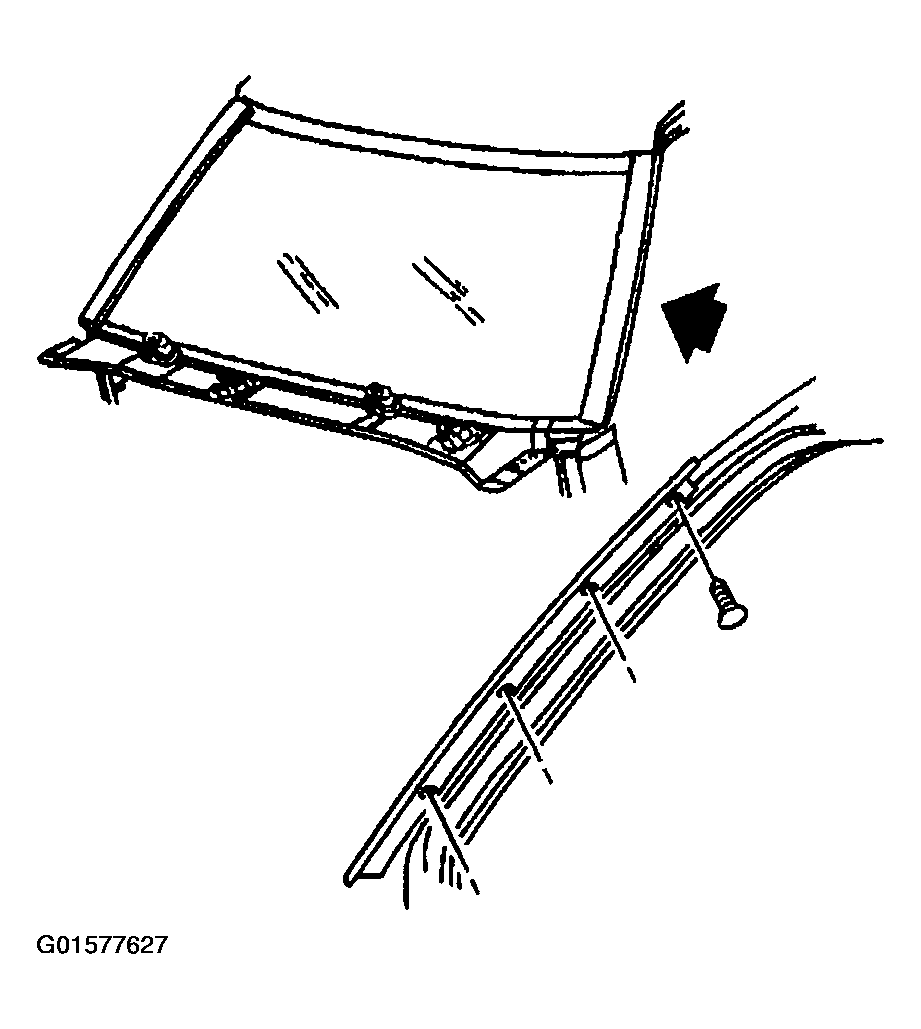

    Fig 2: Removing Windshield Side Reveal Molding & Screws
    G01577627Courtesy of GENERAL MOTORS CORP.
