Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the windshield reveal molding to the windshield pillar.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the screws to the windshield reveal molding.

    Tighten

    Tighten the screws to the windshield reveal molding to 2 N.m (18 lb in).

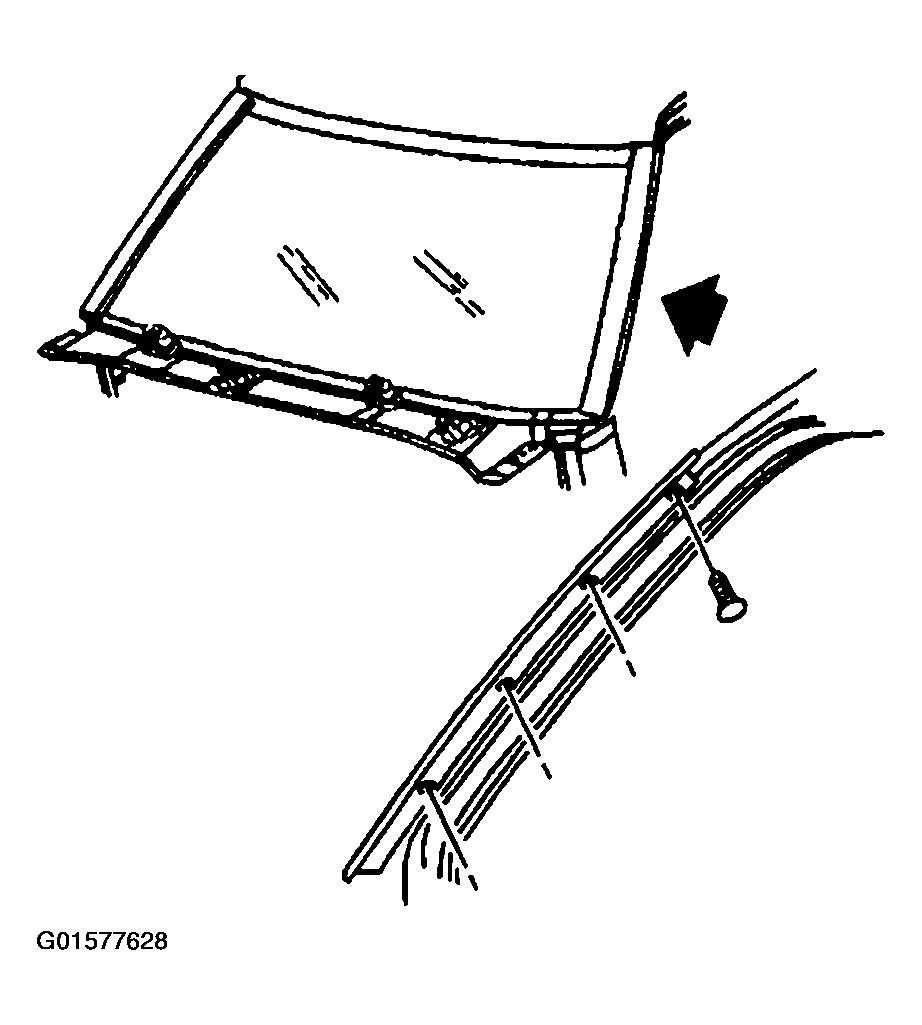

    Fig 1: Installing Windshield Side Reveal Molding & Screws
    G01577628Courtesy of GENERAL MOTORS CORP.
  3. Install the front door sealing weatherstrip (1) to the pinch-weld.
  4. Close the door.

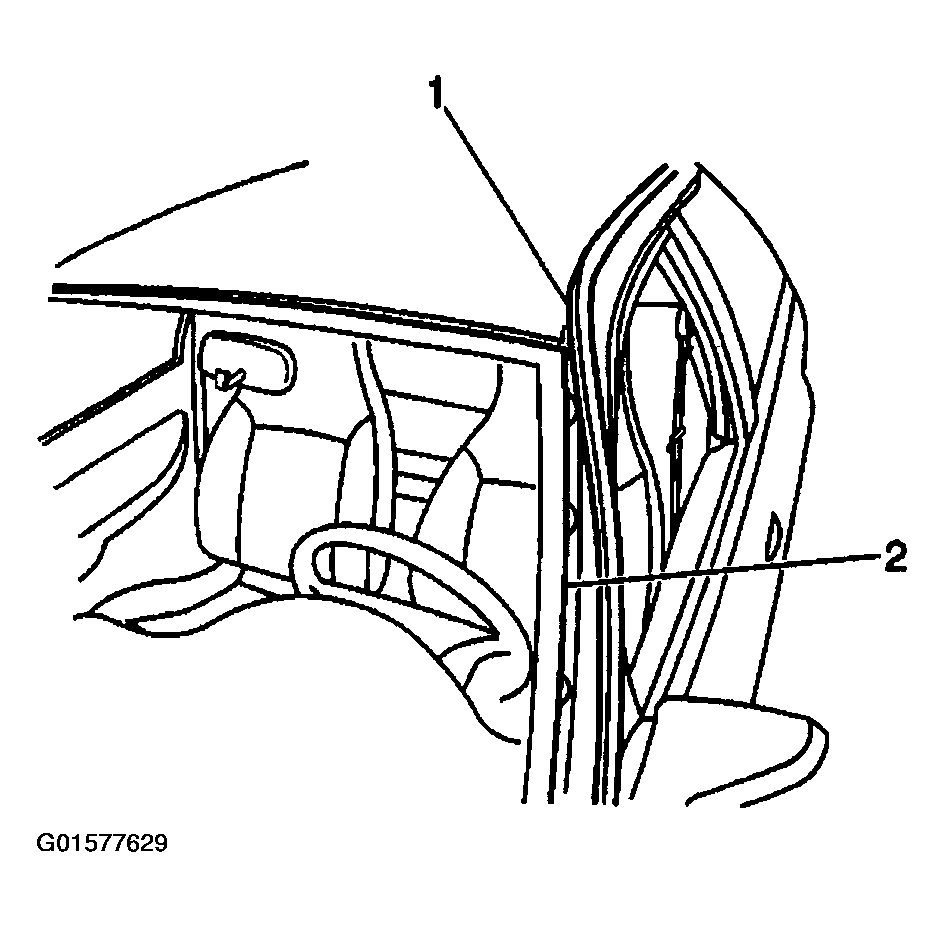

    Fig 2: Installing Front Door Sealing Weatherstrip
    G01577629Courtesy of GENERAL MOTORS CORP.
