Mirrors - Temperature Displays SC Or OC

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

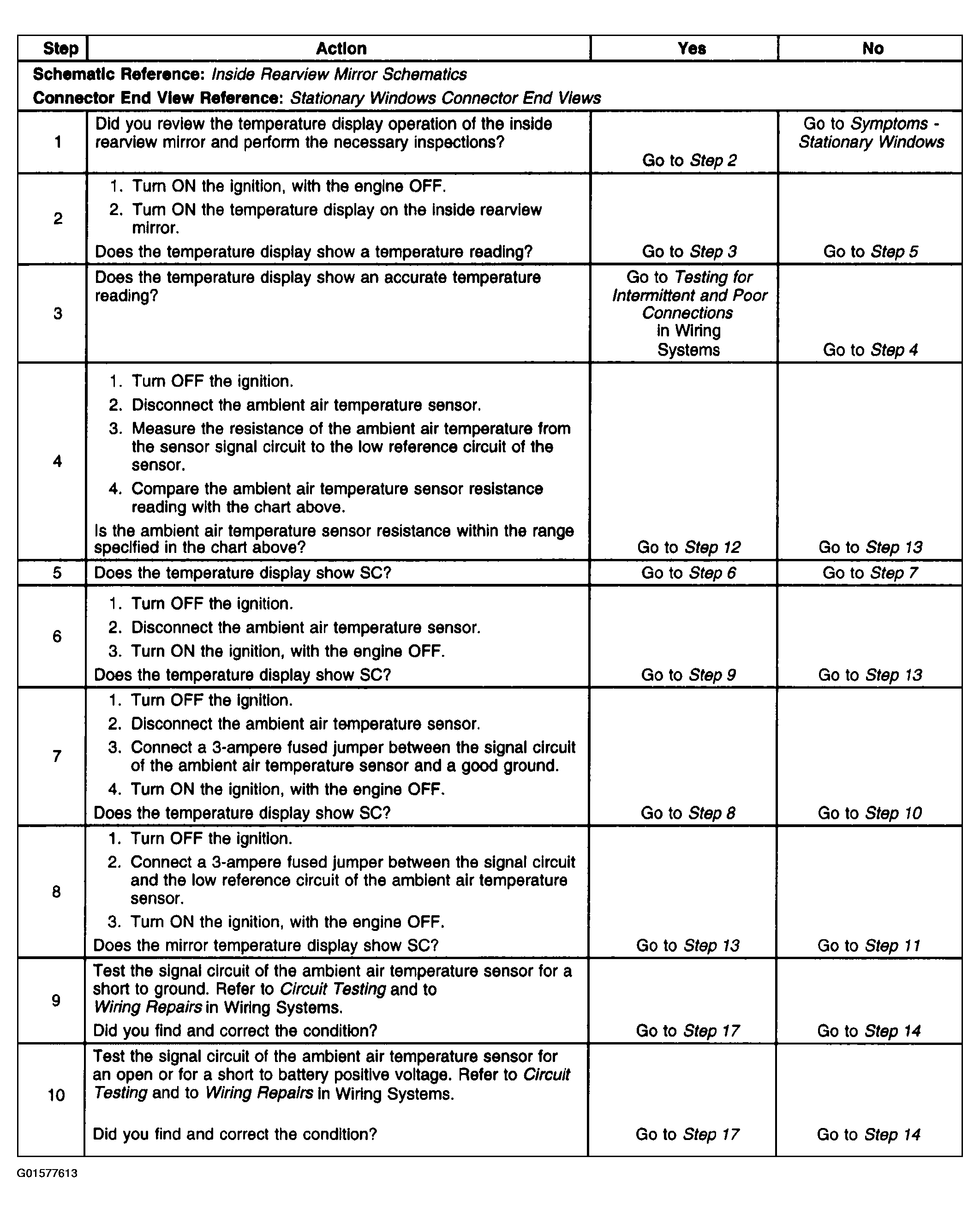

Fig 1: Mirrors - Temperature Displays SC Or OC (Steps 1-10)
G01577613Courtesy of GENERAL MOTORS CORP.

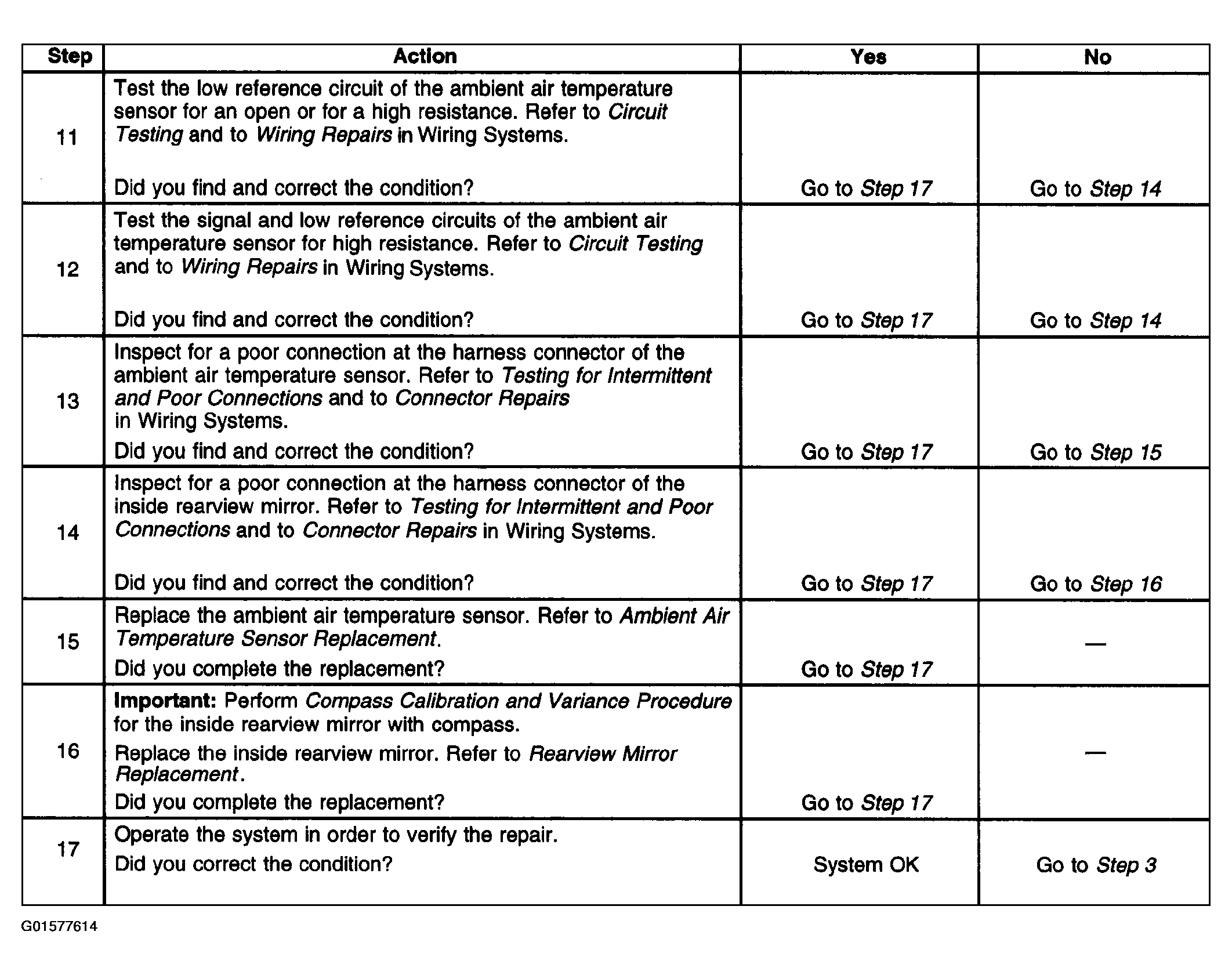

Fig 2: Mirrors - Temperature Displays SC Or OC (Steps 11-17)
G01577614Courtesy of GENERAL MOTORS CORP.
