Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Preheat the sheet metal in order to melt the sealer and bond the molding into the joint.

Sealer begins to flow at approximately 93°C (200°F).

  1. Use the J 25070  in order to heat the cab in the joint area. Preheat the sheet metal to approximately 93°C (200°F).
  2. Install the molding.

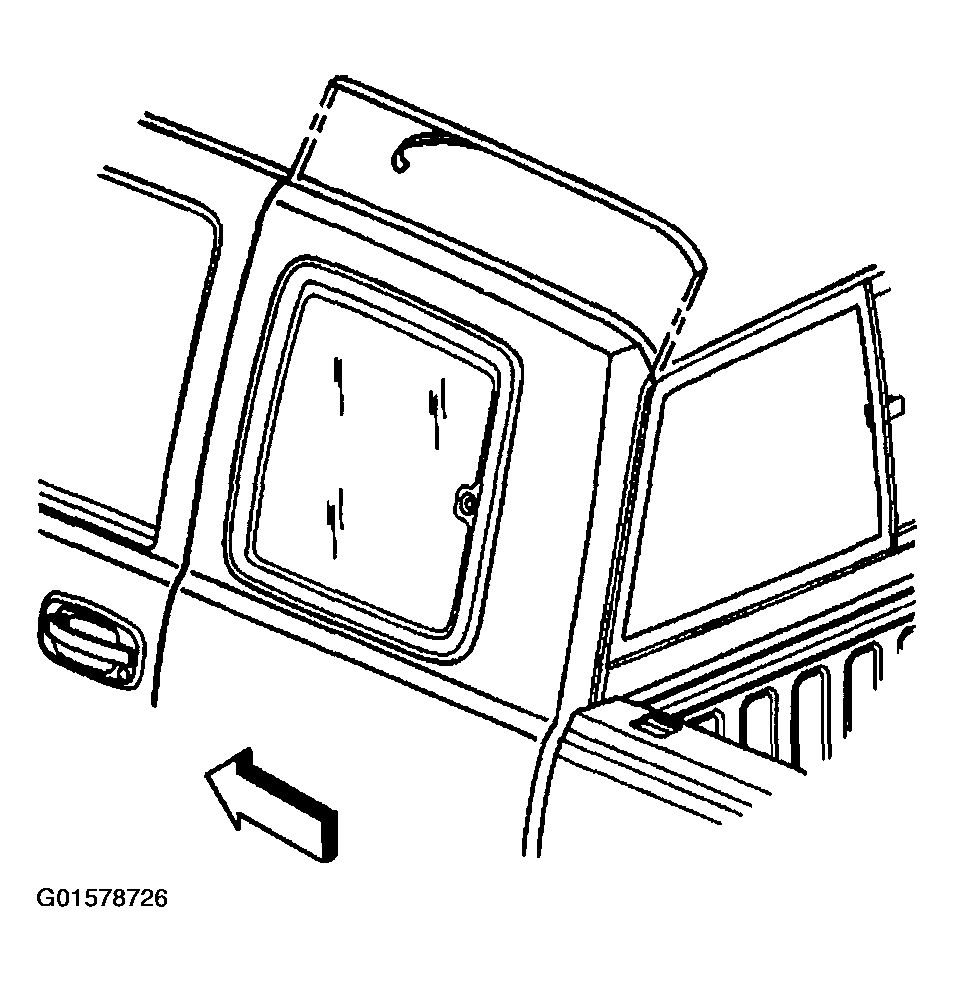

    Fig 1: Roof Joint Molding (Extended Cab)
    G01578726Courtesy of GENERAL MOTORS CORP.
