Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Be careful not to scratch or chip the paint.
  1. Heat the body side molding using a heat gun J 25070.  Hold the heat gun approximately 152 mm (6 in) from the surface.

    Apply heat using a circular motion for about 30 seconds.

  2. Starting from one end of the molding, peel off the molding from the panel surface using a flat-bladed tool.
  3. Remove all adhesive from the body panel using a 3M™ scotch brite molding adhesive remover disk P/N 07501 or equivalent.

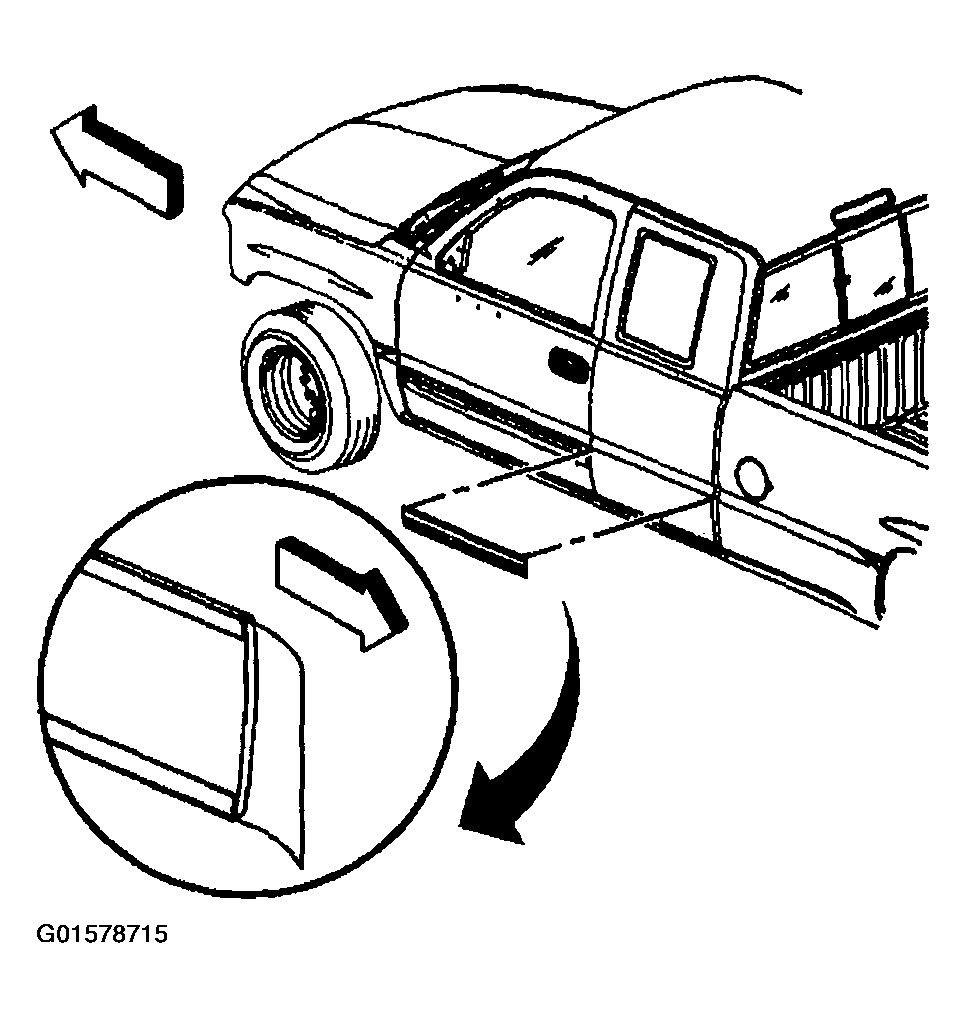

    Fig 1: Body Side Molding (Extended Cab)
    G01578715Courtesy of GENERAL MOTORS CORP.
