Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the grille ends into the fender.

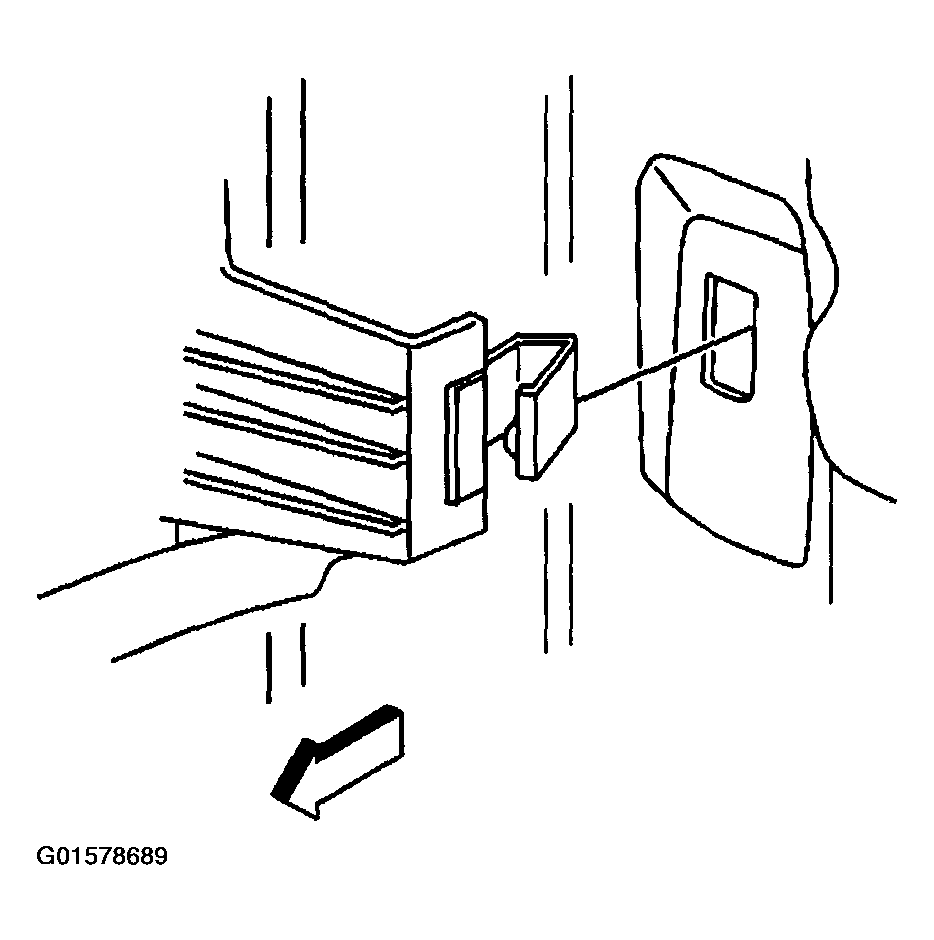

Fig 1: Installing Grille Ends Into Fender
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the screw holding the grille to the latch support.
Tighten

Tighten the grille screw to 9 N.m (75 lb in).

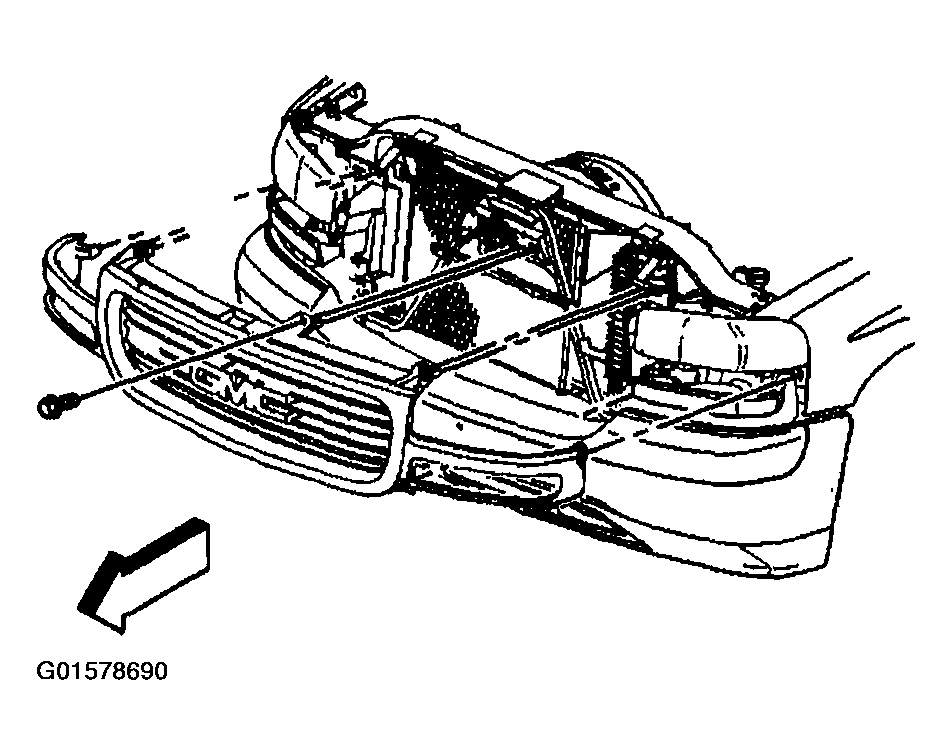

Fig 2: Installing Screw Holding Grille To Latch Support
Courtesy of GENERAL MOTORS CORP.
Using a Phillips screwdriver, rotate the grille retainer 1/4 turn clockwise.

Fig 3: Rotating Grille Retainer
Courtesy of GENERAL MOTORS CORP.
Install the upper grille baffle.
Close the hood.
Inspect for proper alignment.
For diesel only, install the winter cover, if removed.

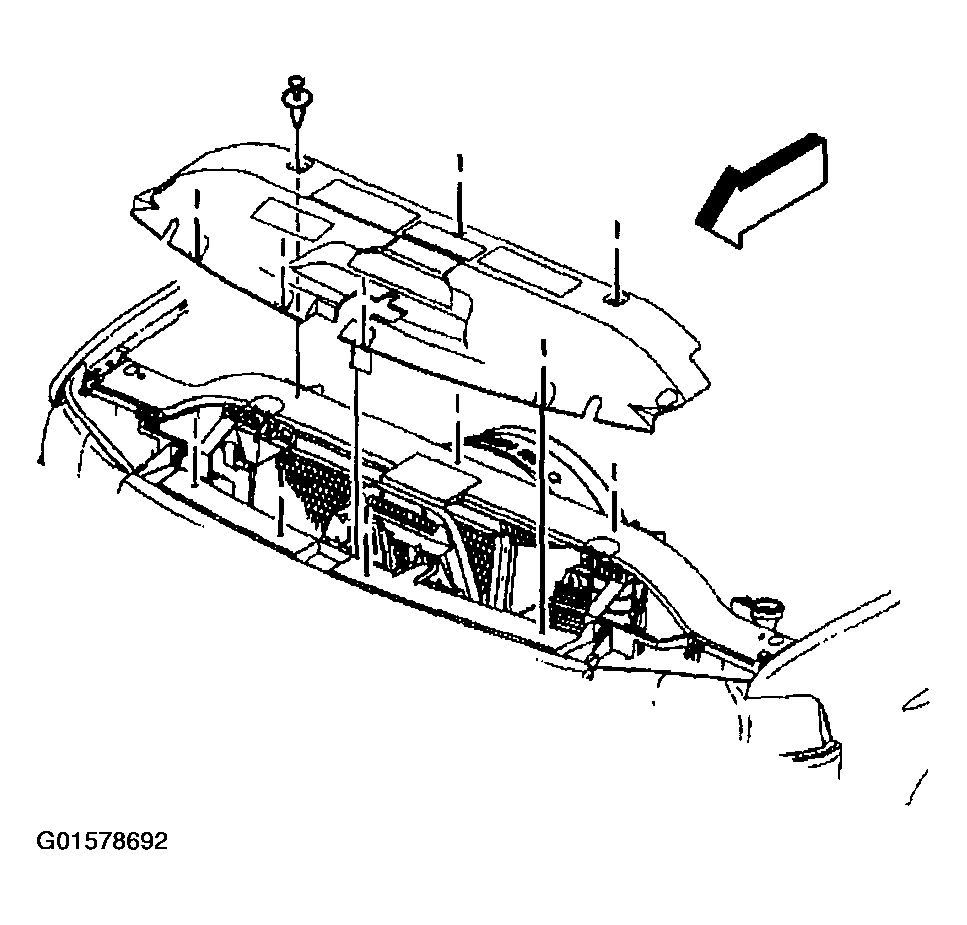

Fig 4: Installing Upper Grille Baffle
Courtesy of GENERAL MOTORS CORP.
