Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Open the hood.
Remove the upper grille baffle.

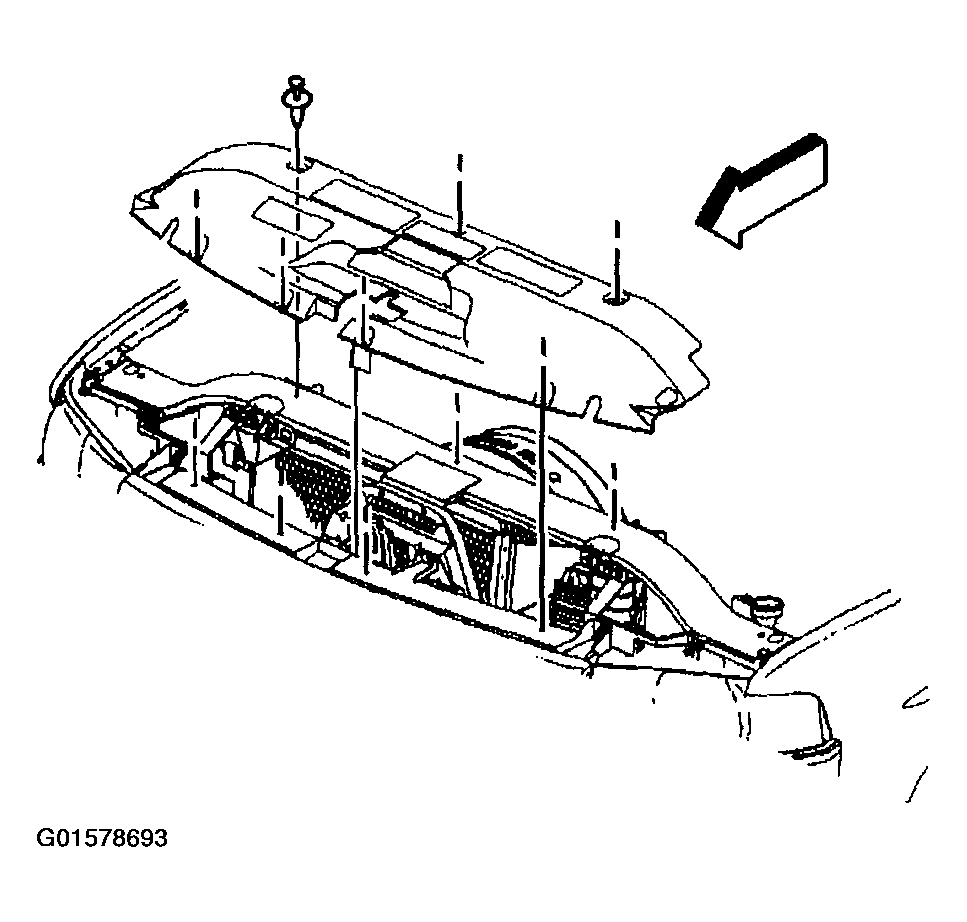

Fig 1: Removing Upper Grille Baffle
Courtesy of GENERAL MOTORS CORP.
Using a Phillips screw driver, rotate the grille retainer 1/4 turn counterclockwise.

Fig 2: Rotating Grille Retainer
Courtesy of GENERAL MOTORS CORP.
Remove the screw holding the grille to the latch support.

Fig 3: Removing Screw Holding Grille To Latch Support
Courtesy of GENERAL MOTORS CORP.

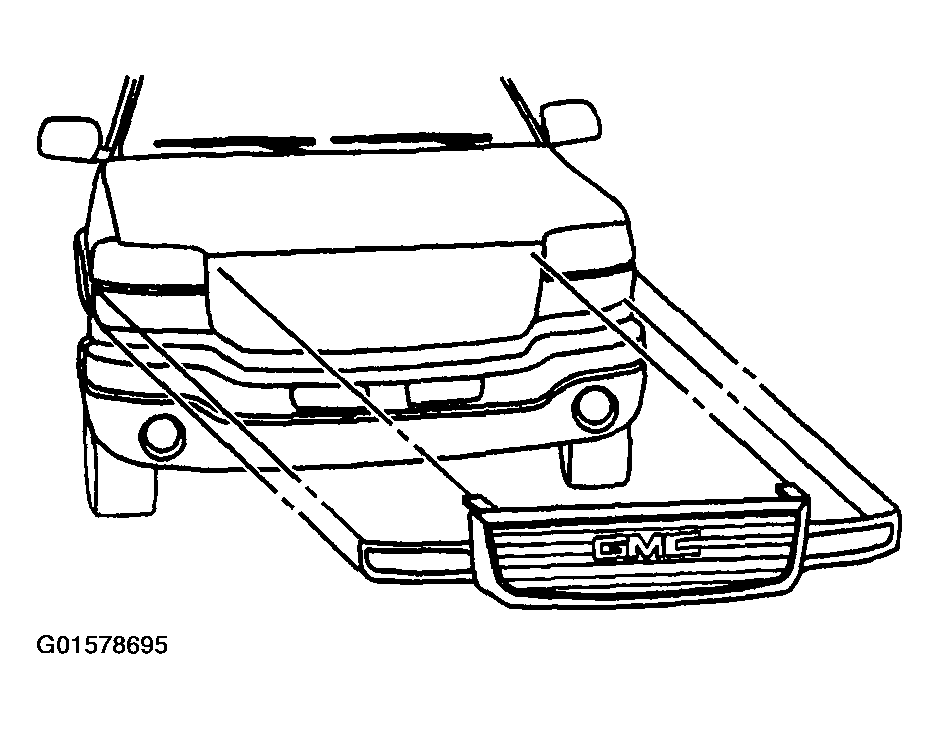

Unsnap the grille end from the fender. Remove the grille from the vehicle.

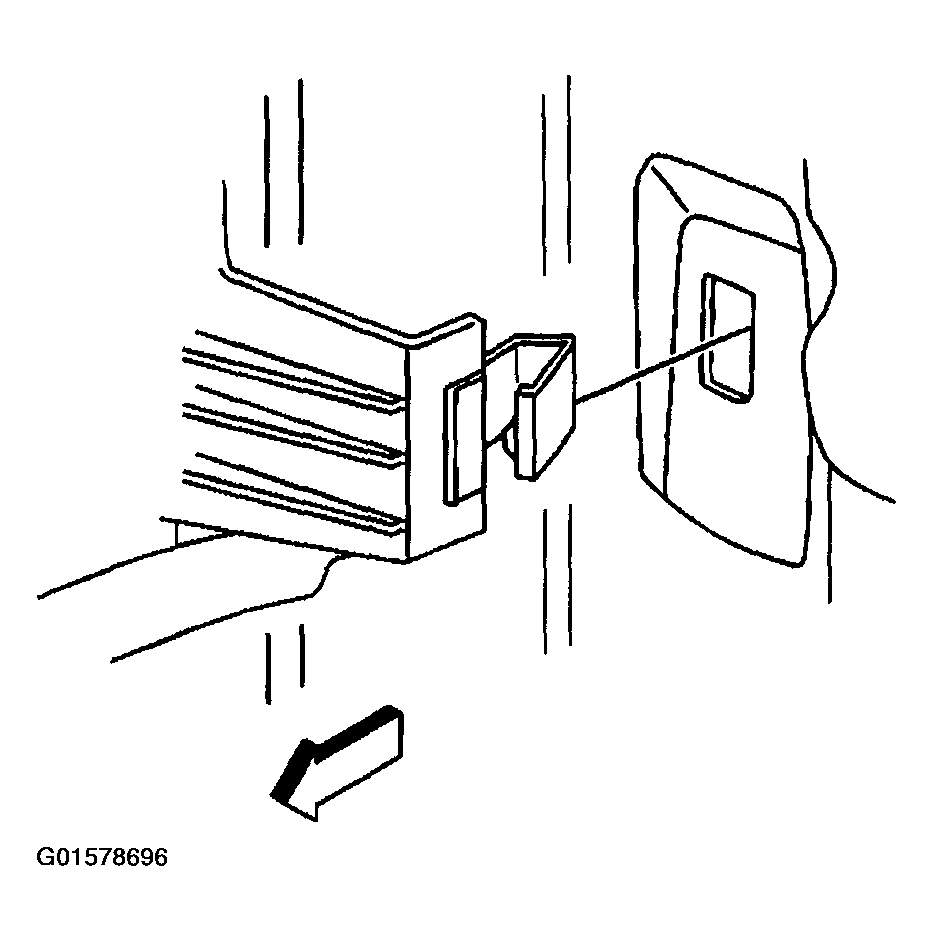

Fig 4: Removing Grille End From Fender
Courtesy of GENERAL MOTORS CORP.
