Installation Procedure
WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

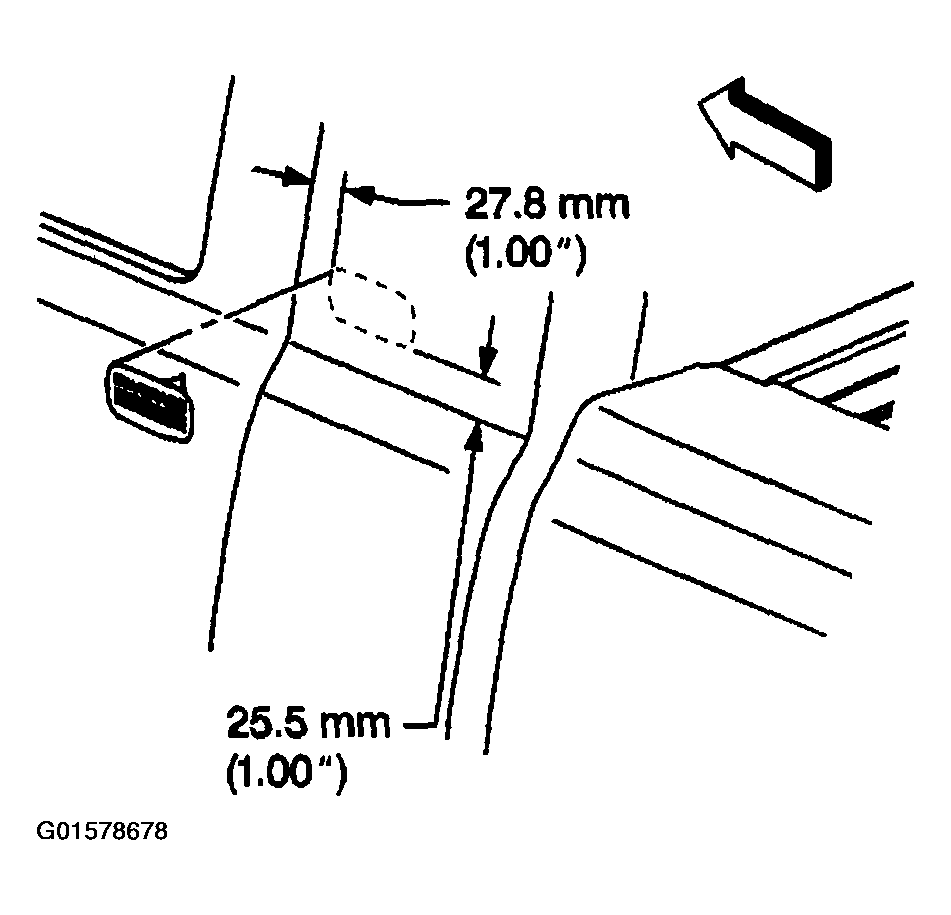

- If the location of the emblem/nameplate has not been marked apply tape, using the dimensions in the graphic.
- Warm the pickup cab surface with a heat gun J 25070
152 mm (6.0 in) form the surface to a minimum of 21°C (70°F).IMPORTANT: Do not touch the adhesive backing of the emblem/nameplate.
- Remove the backing from the front end of the emblem/nameplate.
- Press the emblem/nameplate to the pickup cab panel surface while continuing to remove the backing.
- Hand roll the emblem/nameplate to the pickup cab panel to ensure proper adhesive.
- Inspect the emblem/nameplate for bonding.
- Remove the tape from the area around the pickup cab emblem.
